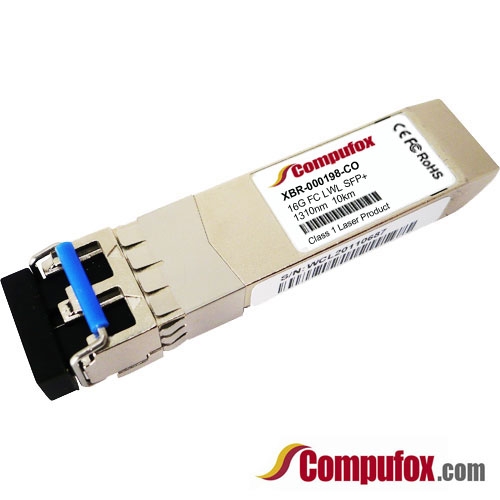

XBR-000198 | Brocade Compatible 16G FC SFP+ Optical Transceiver
XBR-000198 | Brocade Compatible 16G FC SFP+ Optical Transceiver

Our Price: $100.00

Warranty: 1 Year Warranty


Free Shipping
Product Code: XBR-000198-CO


Compatibility: 		Please input the model of the switch or router on which you will install this transceiver

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

Brocade XBR-000198 Compatible 16G Fiber Channel SFP+ Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM) 57-0000089-01.

Features:

Form Factor SFP+

Data Rate 16G

Wavelength 1310nm

Cable Distance 10km

Connector Duplex LC

Cable Type SMF

Optical Components DFB/PIN

DDM/DOM Yes

TX Power -5 ~ 2 dBm

Receiver Sensitivity < -12 dBm

Receiver Overload > 2 dBm

Commercial Temperature 0 to 70°C



Responsive Video


Platform Support
  • Brocade FC32-48
  • Brocade G630
  • Brocade G620
  • Brocade G610
  • Brocade DCX8510
  • Brocade 6520
  • Brocade 6510
  • Brocade 6505
  • Brocade SX6
  • Brocade 7840
  • Brocade 7810
