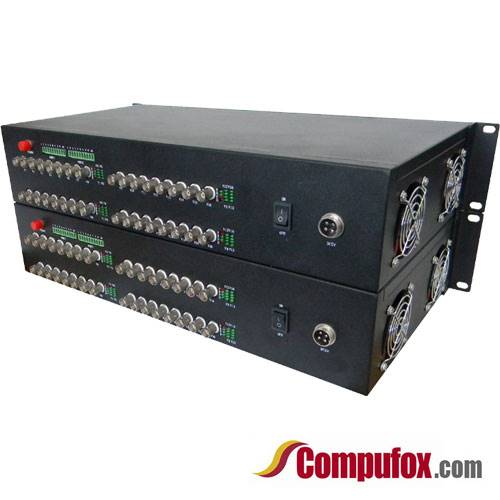

32-Channel Digital Video Optical Converter (Transmitter + Receiver)
Video / Audio / Data / Ethernet / Phone / Switch / Alarm

This Fiber-optic video transceivers can simultaneously transmit 16 channels of 8-bit digitally encoded broadcast quality video / return or bidirectional data / unidirectional or bidirectional audio / Ethernet / Telephone / Dry contact over one multimode or single-mode optical fiber. These multiplexers are typically used in applications where the cameras have P/T/Z capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.

Product Features

• 8-bit digitally encoded and non-compression broadcast quality video transmission
• Directly compatible with NTSC, PAL, and SECAM CCTV camera systems and support RS-232, RS-422, and RS-485 data protocols
• Support any high-resolution video signal
• Automatic compatible PAL, NTSC and SECAM video system
• Power supply and other parameter state indication, which can monitor the operation condition of system
• Support no-damage regenerative trunk of video
• Constant input optical power, and large dynamic range ,no Electrical or Optical Adjustments Required .
• Special ASIC design .
• Industry-grade of operating temperature from -40℃ to 85℃ , which is applied to the different working environment

Technical Specifications

• Video channels: 32 channels
• Video bandwidth: 8 MHz
• Automatic compatible video system: PAL、NTSC、SECAM
• Video input / output impedance: 75 Ω(unbalance)
• Video signal-to-noise ratio: ≥67dB
• Differential gain: （10%-90%APL） DG <1% ( typical value)
• Differential phase: （10%-90%APL） DP <0.7° ( typical value)
• Video connector: BNC
• Fiber connector: SC/ST/FC
• Dimensions: 48.3(L)×22(W)×9.0(H) cm ( 19’’ 2U )
• Operating Voltage: DC5V (we will offer external power supply from AC96-240V to DC5V for each unit)
• Operating Temperature: -40℃ to +85℃
• Storing Temperature: -55℃ to +85℃
• Humidity: 0 to 95% non-condensing
• MTBF: ≥ 105 hours

Ordering Options

• This video optical converter can add these modules/interfaces: Data, Audio, Phone, Ethernet, Switch/Alarm. You can order the interfaces separately. We will add the modules you ordered to the converter before shipping.
• Typical Interface Sets
  • 32 Video
  • 32 Video + 1 Data (reverse)
  • 32 Video + 1 Data (bi-directional)
