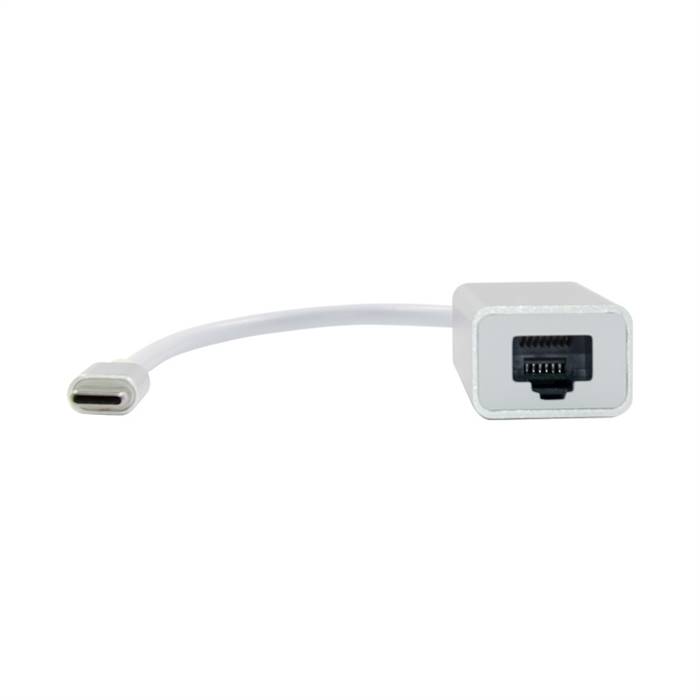

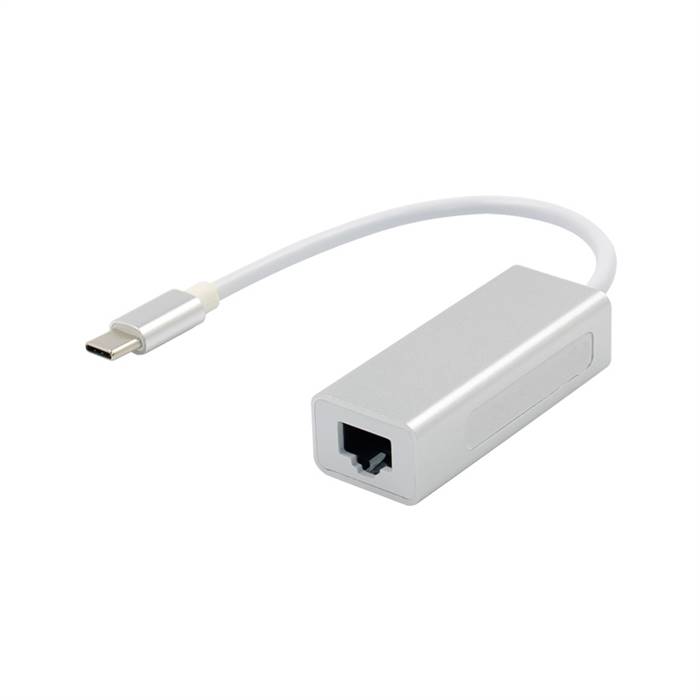

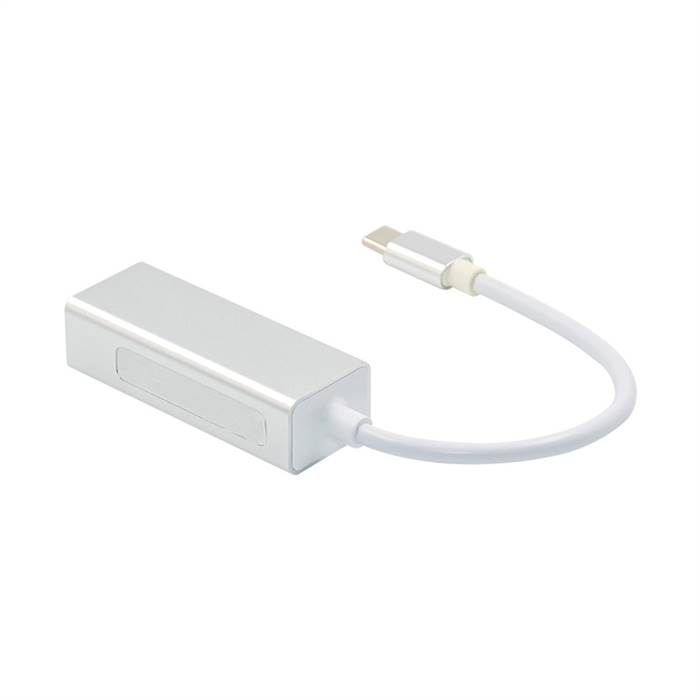

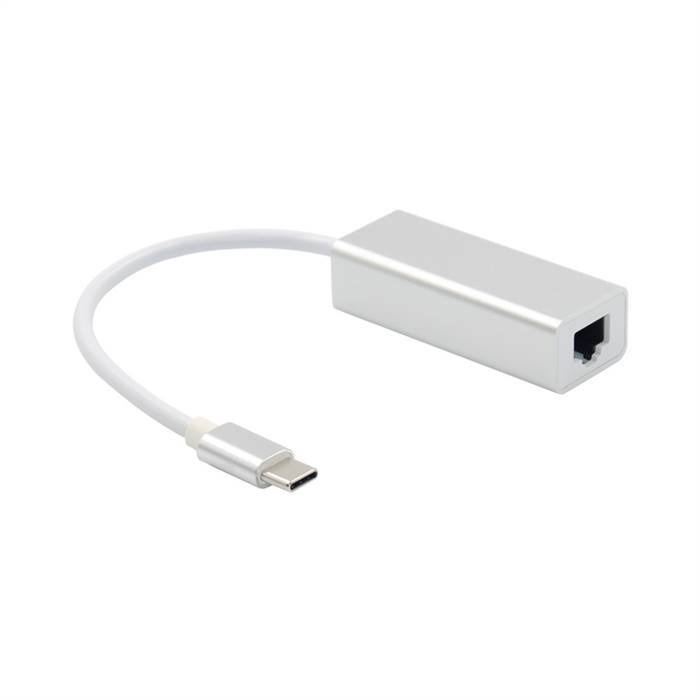

Now, you can easily connect to a Gigabit network through the USB-C™ port on your laptop. This Gigabit Ethernet (GbE) network adapter delivers reliable network connections - without even having to install drivers. Its sleek silver design looks great with your MacBook, and any laptop or Chromebook™ with a similar look. It's also compatible with Thunderbolt™ 3 ports.

Engineered with a high-quality aluminum housing in a silver finish, the network adapter is the perfect companion for your MacBook, and any laptop or Chromebook™ with a similar color finish. Compact and portable, this USB network adapter is the ideal laptop accessory. You don’t have to carry a power adapter with you to use it because it’s powered directly from the host USB port.

Get up and running quickly. Simply plug the adapter into the USB-C port on your laptop and connect to your network. The adapter chipset provides native driver support in Chrome OS™, Mac OS 10.10, Windows® 8.1.

The USB Type-C™ network adapter supports full Gigabit bandwidth by harnessing the performance of USB 3.0, also known as USB 3.1 Gen 1 (5 Gbps). You can access very large files over the network at Gigabit speeds.

The USB Type-C connector is smaller and easier to use than previous USB connectors. It’s a reversible plug so you can connect to your devices with either side facing up. You can insert the cable the right way every time - without frustration or the risk of port damage.

Features

• Quickly adds a Gigabit Ethernet port to your laptop system through USB-C connection
• Compact and light weight design makes it a perfect LAN accessory while on-the-go, provides instant wired Ethernet connection
• USB 3.0 SuperSpeed interface ensures high performance packet transfer rate
• Features full duplex with flow control and half duplex with back pressure operation
• Supports Wake-on-LAN, IEEE 802.3az (Energy Efficient Ethernet) and Jumbo Frame
• Built-in power and data diagnostic LEDs

Specifications

• Chipset: Realtek RTL8153
• Host Bust Type:1 * USB Type-C (24 pin) USB 3.0 (5Gbps)
• Connector: 1 * 8-pin, RJ45, Network, Female
• Power Source: USB-Powered
• Compliant with Universal Serial Bus 3.0 Specification and backward compatible with USB 2.0
• Supports full duplex operation with IEEE 802.3x
• Compatible with IEEE 802.3, 802.3u
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports IEEE 802.1Q VLAN tagging
• Supports IPv4/IPv6 packet Checksum Offload Engine to reduce CPU loading
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Certifications/Standards: FCC, CE, RoHS

Performance

Maximum Data Transfer Rate: 5Gbps

Maximum Cable Length: 0.6 in [15 mm]

Type and Rate: USB 3.0 - 5 Gbit/s

Compatible Networks: 10/100/1000 Mbps

Auto MDIX: Yes

Full Duplex Support: Yes

Jumbo Frame Support: 9K max.

OS Compatibility

• Windows® XP, Vista, 7, 8, 8.1, 10
• Windows Server® 2003, 2008 R2, 2012, 2016, 2019
• macOS 10.7 to 10.15, 11.0 VLAN tagging is currently not supported in macOS
• Linux Kernel 2.6.25 to 4.11.x LTS Versions only
• Chrome OS®️

Environmental

• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -55°C to 125°C (-67°F to 257°F)
• Humidity: 20% ~ 90% RH

Package contents

• USB-C to Gigabit Ethernet Adapter - USB 3.0
• User Reference Guide
• CD Driver
