USB 2.0 Type-A to RJ45 Fast Ethernet Network Adapter
USB 2.0 Type-A to RJ45 Fast Ethernet Network Adapter

Alternative Views:


Our Price: $5.50
Warranty: 1 Year Warranty


Product Code: U2A-FE-1T-88172
Qty:

Description

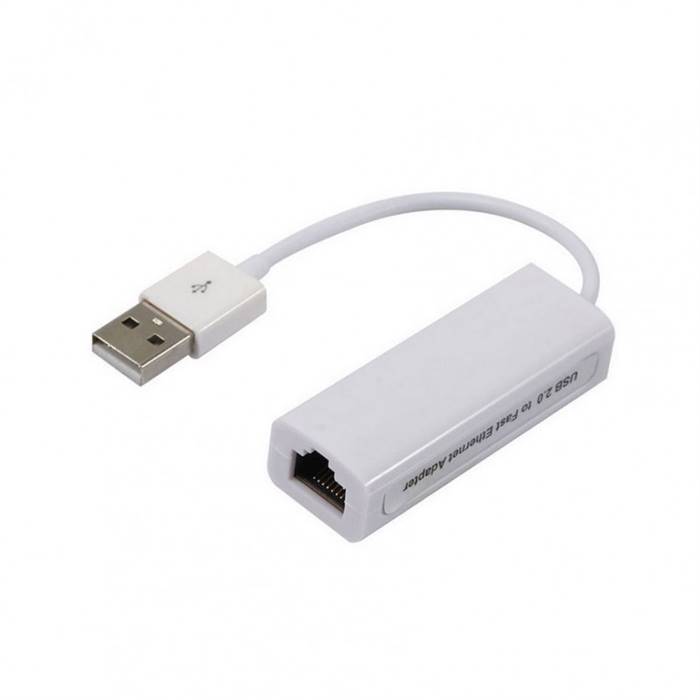

The U2A-FE-1T-88172 USB 2.0 to 10/100 Mbps Network Adapter lets you add a Fast Ethernet port to your laptop or desktop computer through USB.

This compact USB network adapter offers a dongle design with a built-in cable to avoid cramped connections, making it a perfect solution for adding wired Ethernet connectivity to your desktop without opening the case, or to replace a failed onboard network adapter on your laptop system.

Providing half or full-duplex operation, this USB 2.0 Ethernet adapter supports data transfer rates of up to 200 Mbps. The adapter also supports features such as Wake-on-LAN (WoL) and VLAN tagging for added flexibility.

Features

  • 10/100 Mbps Ethernet through USB 2.0
  • IEEE 802.3i and 802.3u (10BASE-T, 100BASE-TX) compatible
  • Supports half / full-duplex operation
  • Crossover Detection & Auto-Correction (Auto MDIX)
  • IEEE 802.1Q VLAN Tagging support
  • Dongle with integrated USB cable

Specifications

  • Chipset: ASIX AX88172A
  • Bus Type: USB Type-A (4 pin) USB 2.0
  • Ports: 1 * RJ45
  • Maximum Data Transfer Rate: 200 Mbps (Ethernet - Full-Duplex)
  • Max Distance: 100 m / 330 ft
  • Type and Rate: USB 2.0 - 480 Mbit/s
  • Compatible Networks: 10/100 Mbps
  • Auto MDIX: Yes
  • Full Duplex Support: Yes
  • Industry Standards: IEEE802.3i, IEEE 802.3u
  • Power Source: USB-Powered

Environmental

  • Operating Temperature: 10°C to 40°C (50°F to 114°F)
  • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
  • Humidity: 10~90% RH

Package Contents

  • USB 2.0 Fast Ethernet Adapter
  • Driver CD
  • Instruction Manual
