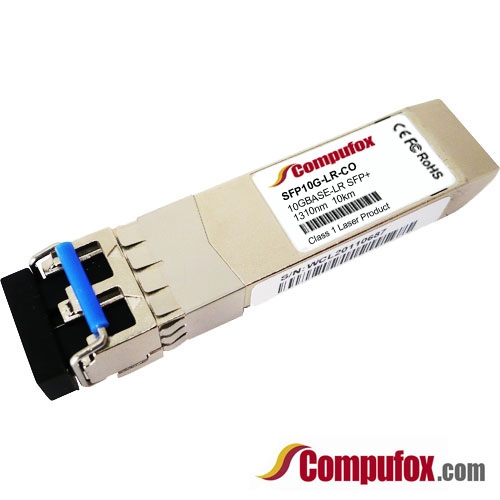

ZYXEL SFP10G-LR Compatible 10GBASE-LR SFP+ Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM).
10GBase-SR Features
|
Form Factor SFP+
|
Data Rate
10G
|
|
Wavelength
1310nm
|
Cable Distance*
10km
|
|
Connector
Duplex LC
|
Cable Type
SMF
|
|
Transmitter Type
DFB
|
Receiver Type
PIN
|
|
TX Power
-8.2~0.5dBm
|
Receiver Sensitivity
<-14.4dBm
|
|
Power Budget
6.2dB
|
Receiver Overload
0.5dBm
|
|
Power Consumption
≤1W
|
Extinction Ratio
>3.5dB
|
|
DDM/DOM
Yes
|
Commercial Temperature
0 to 70°C
|
*
Minimum cabling distance for LR modules is 2m, according to the IEEE 802.3ae.
