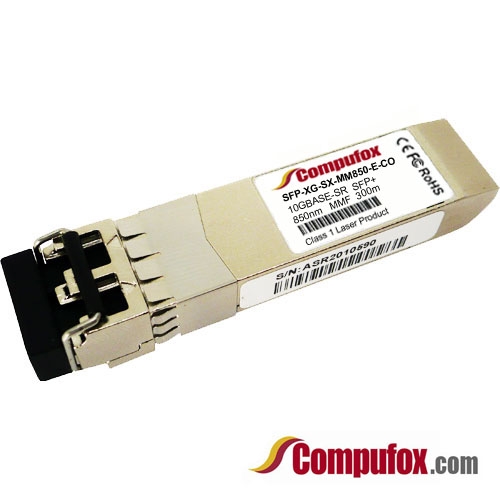

SFP-XG-SX-MM850-E | H3C Compatible 10G SFP+ Optical Transceiver
SFP-XG-SX-MM850-E | H3C Compatible 10G SFP+ Optical Transceiver

Our Price: $65.00

Warranty: 1 Year Warranty


Free Shipping
Product Code: SFP-XG-SX-MM850-E-CO


Compatibility: 		Please input the model of the switch or router on which you will install this transceiver

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

H3C SFP-XG-SX-MM850-E Compatible 10GBASE-SR SFP+ Optical Transceiver Module (MMF, 850nm, 300m, LC, DOM, Industrial Temperature).

Features:

10GBase-SR Features

Form Factor SFP+

Data Rate 10G

Wavelength 850nm

Cable Distance* 300m@OM3/400m@OM4

Connector Duplex LC

Cable Type MMF

Transmitter Type VCSEL

Receiver Type PIN

TX Power -6~ -1dBm

Receiver Sensitivity < -11.1dBm

Power Budget 5dB

Receiver Overload ＞ -1dBm

Power Consumption ≤0.5W

Extinction Ratio ＞3dB

DDM/DOM Yes

Industrial Temperature -40 to 85°C

* Minimum cabling distance for SR modules is 2m, according to the IEEE 802.3ae.
