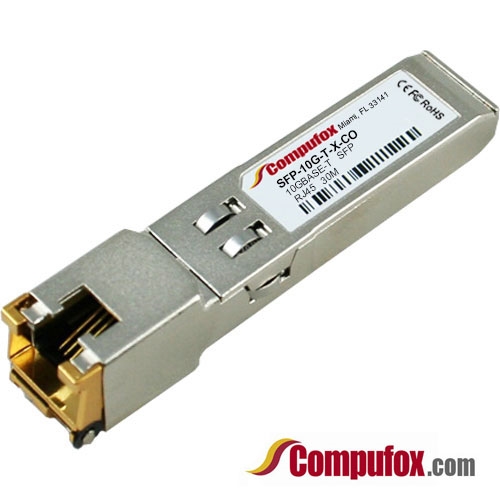

SFP-10G-T-X | Cisco Compatible 10G SFP+ Copper Optical Transceiver
SFP-10G-T-X | Cisco Compatible 10G SFP+ Copper Optical Transceiver

Our Price: $65.00

Warranty: 1 Year Warranty


Product Code: SFP-10G-T-X-CO


Compatibility: 		Please input the model of the switch or router on which you will install this transceiver

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

Cisco Compatible 10GBASE-T SFP+ Optical Transceiver Module (Copper, 30m, RJ-45).

10GBASE-T SFP+ copper transceivers are based on the SFP Multi-Source Agreement (MSA). They are compatible with the 10GBASE-T / 5GBASE-T / 2.5GBASE-T / 1000BASE-T standards as specified in IEEE Std 802.3. 10GBASE-T SFP+ copper transceivers use the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC will be reset.

Features
  • Hot-pluggable SFP footprint
  • Support 10GBASE-T / 5GBASE-T / 2.5GBASE-T / 1000BASE-T
  • Compact RJ-45 connector assembly
  • RoHS compliant and lead-free
  • Temperature Range: COM/EXT/IND
  • Single +3.3V power supply
  • 10 Gigabit Ethernet over Cat6a/Cat7 cable
Application
  • 10GBASE-T 10G Ethernet
Transmission Distances

Standard

Cable

Reach

Host Port

10GBASE-T

Cat6a/Cat7

30m

XFI

5GBASE-T/2.5GBASE-T

Cat5e

50m

5GBASE-R/2.5GBASE/X

1000BASE-T

Cat5e

100m

1000BASE-FX


Specifications

  • Product Type: Transceiver Module
  • Form Factor: SFP+
  • Data Rate (max): 10Gb/s
  • Distance (max): 30M
  • Transmitter: No
  • Receiver: No
  • Digital Diagnostic: No
  • Connector: RJ45
  • Cable Type: Category 6a/7
  • Wavelength: No
  • Operating Temperature: COM
