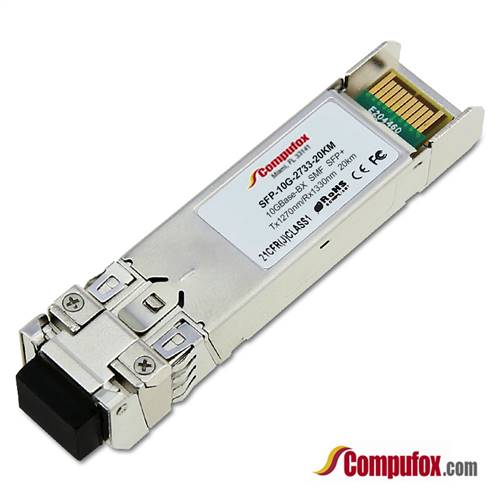

SFP-10G-2733-20KM | 10G BIDI SFP+ Optical Transceiver
SFP-10G-2733-20KM | 10G BIDI SFP+ Optical Transceiver

Our Price: $38.00

Warranty: 1 Year Warranty


Product Code: SFP-10G-2733-20KM

Equipment where Transceiver will be Installed

Select Brand:

Compatibility:

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description

10GBASE-BX SFP+ Optical Transceiver Module (SMF, Tx1270nm/Rx1330nm, Simplex LC, 20KM, DOM).

Features
  • Operating data rate up to 10.3Gbps
  • 1270nm DFB Transmitter/ 1330nm Receiver
  • Distance up to 20km over SMF
  • Single 3.3V Power supply and TTL Logic Interface
  • LC Connector Interface,Hot Pluggable
  • Compliant with SFP+ MSA Specification SFF-8431
  • Compliant with IEEE 802.3ae 10GBASE-LR
  • Compliant with IEEE 802.3ae 10GBASE-LW
  • Compliant with SFF-8472
  • Operating Case Temperature Standard:0~+70°C

Applications

  • 10GBASE-LR at 10.3125Gbps
  • 10GBASE-LW at 9.953Gbps

Specifications

  • Part Number: SFP-10G-2733-20KM
  • Product Type: Transceiver Module
  • Form Factor: SFP+
  • Data Rate (max): 10.5 Gb/s
  • Distance (max): 20KM
  • Transmitter: DFB
  • Receiver: PIN
  • Digital Diagnostic: Yes
  • Connector: Simplex LC
  • Cable Type: SMF
  • Wavelength: Tx1270nm/Rx1330nm
  • Operating Temperature: 0 to 70°C (32 to 158°F)
