QSFP28-100G-LR4-10KM | 100G QSFP28 Optical Transceiver
QSFP28-100G-LR4-10KM | 100G QSFP28 Optical Transceiver

Our Price: $365.00

Warranty: 1 Year Warranty


Product Code: QSFP28-100G-LR4-10KM

Equipment where Transceiver will be Installed

Select Brand:

Compatibility:

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

100GBase-LR4 QSFP28 Optical Transceiver Module (SMF, 1295nm to 1309nm, 10km, LC, DOM).

Features:

Form Factor QSFP28

Data Rate 100Gbps

Wavelength* 1295nm to 1309nm

Cable Distance* 10km

Connector Duplex LC

Cable Type SMF

Transmitter Type 4 x LAN WDM EML

Receiver Type PIN

TX Power -4.3~4.5dBm

Minimum Receiver Power -10.6dBm

Power Consumption ≤3.5W

Receiver Overload 4.5dBm

CDR (Clock and Data Recovery) TX & RXBuilt-in CDR

Extinction Ratio >4dB

Packaging Technology BOX Packaging

Modulation Format 4x 25G NRZ

DDM/DOM Yes

Commercial Temperature 0 to 70°C

Core Size 9um/125um

Protocols IEEE 802.3 100GBASE-LR4, QSFP28 MSA, SFF-8665, SFF-8636

* Lane Center Wavelengths Range
L0 1295.56nm(1294.53-1296.59nm)
L1 1300.05nm(1299.02-1301.09nm)
L2 1304.58nm(1303.54-1305.63nm)
L3 1309.14nm(1308.09-1310.09nm)
* FEC is not required for full reach on the host platform.

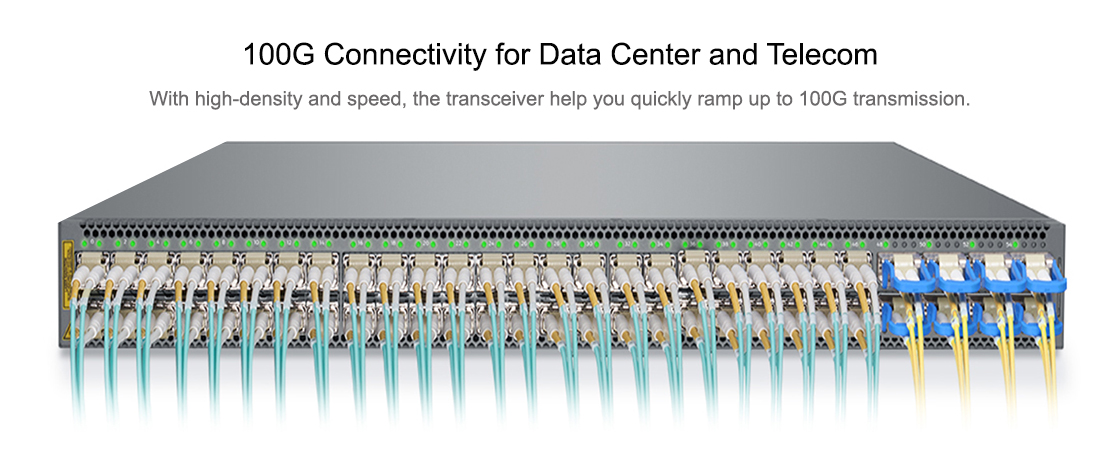

100G Connectivity for Data Center and Telecom

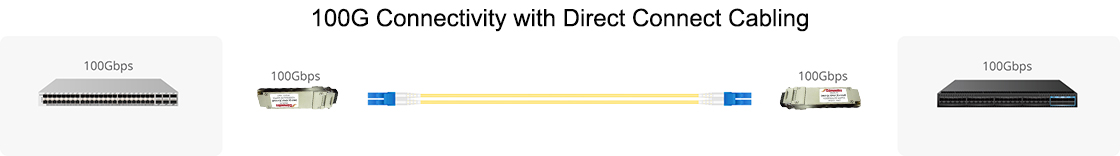

100G Connectivity with Direct Connect Cabling

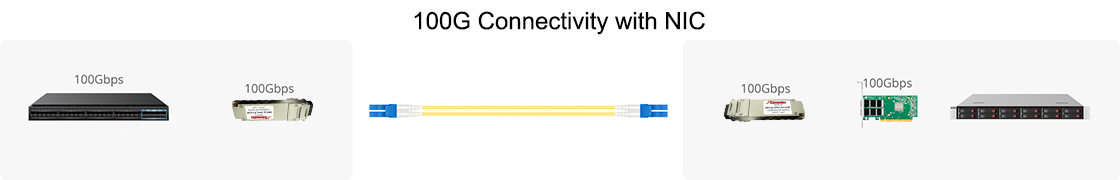

100G Connectivity with NIC

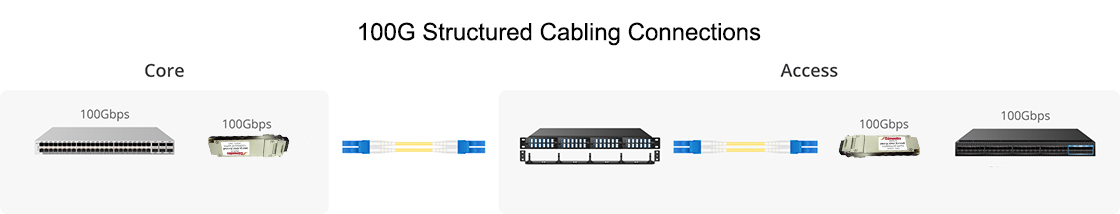

100G Structured Cabling Connections

Compatible Switches and Routers:
  • Cisco Meraki MS450 Series (MS450-12-HW)
  • Cisco Meraki MS450 Series (MS450-HW)
  • Cisco NCS 540 Series (N540-ACC-SYS)
  • Cisco NCS 540 Series (N540X-ACC-SYS)
  • Cisco NCS 540 Series (N540X-16Z4G8Q2C-A)
  • Cisco NCS 540 Series (N540X-16Z4G8Q2C-D)
  • Cisco NCS 540 Series (N540-28Z4C-SYS-A)
  • Cisco NCS 540 Series (N540-28Z4C-SYS-D)
  • Cisco NCS 540 Series (N540-FH-CSR-SYS)
  • Cisco NCS 540 Series (N540-24Q8L2DD-SYS)
  • Cisco Catalyst 9500 Series (C9500-24Y4C)
  • Cisco Catalyst 9500 Series (C9500-48Y4C)
  • Cisco Catalyst 9500 Series (C9500-32QC)
  • Cisco Catalyst 9500 Series (C9500-32C)
  • Cisco UCSB (UCS-FI-6454)
  • Cisco UCSB (UCS-FI-64108)
  • Cisco UCSB (UCS-FI-64108-U)
  • Cisco UCSB (UCS-FI-6454-U)
  • Cisco UCSC (UCSC-P-M5S100GF)
  • Cisco UCSC (UCSC-P-M5D100GF)
  • Cisco NCS 1000 Series (NCS1002-K9)
  • Cisco NCS 1000 Series (NCS1004-K9)
  • Cisco 15454W (NCS2K-400G-XP)
  • Cisco NCS 5000 Series (NCS-5011)
  • Cisco NCS 5000 Series (NCS-5001)
  • Cisco NCS 5000 Series (NCS-5002)
  • Cisco NCS 5500 Series (NC55-36X100G)
  • Cisco NCS 5500 Series (NC55-24X100G-SE)
  • Cisco NCS 5500 Series (NC55-18H18F)
  • Cisco NCS 5500 Series (NC55-24H12F-SE)
  • Cisco NCS 5500 Series (NC55-36X100G-A-SE)
  • Cisco NCS 5500 Series (NCS-5501)
  • Cisco NCS 5500 Series (NCS-5501-SE)
  • Cisco NCS 5500 Series (NCS-5502)
  • Cisco NCS 5500 Series (NCS-5502-SE)
  • Cisco NCS 5500 Series (NCS-55A1-36H-S)
  • Cisco NCS 5500 Series (NCS-55A1-24H)
  • Cisco NCS 5500 Series (NC55-36X100G-S)
  • Cisco NCS 5500 Series (NCS-55A1-36H-SE-S)
  • Cisco NCS 5500 Series (NC55-MPA-4H-S)
  • Cisco NCS 5500 Series (NC55-MPA-4H-HD-S)
  • Cisco NCS 5500 Series (NC55-MPA-1TH2H-S)
  • Cisco NCS 5500 Series (NCS-55A1-48Q6H)
  • Cisco NCS 5500 Series (NCS-55A1-24Q6H-S)
  • Cisco NCS 5500 Series (NC55-MPA-4H-HX-S)
  • Cisco NCS 5500 Series (NC57-24DD)
  • Cisco NCS 5500 Series (NC57-18DD-SE)
  • Cisco NCS 5500 Series (NCS-55A1-24Q6H-SS)
  • Cisco NCS 5500 Series (NC55-32T16Q4H-A)
  • Cisco NCS 5500 Series (NC57-36H-SE)
  • Cisco NCS 5500 Series (NCS-57B1-6D24H-S)
  • Cisco NCS 5500 Series (NCS-57B1-5D24-SE)
  • Cisco NCS 5500 Series (NC57-MPA-2D4H-S)
  • Cisco NCS 5500 Series (NCS-57C3-MOD-S)
  • Cisco NCS 5500 Series (NCS-57C3-MOD-SE-S)
  • Cisco NCS 6000 Series (NC6-20X100GE-M-C)
  • Cisco NCS 6000 Series (NC6-20X100GE-L-C)
  • Cisco NCS 4000 Series (NCS4K-4H-OPW-QC2)
  • Cisco ASR 900 Series (N560-IMA2C)
  • Cisco Nexus 9300 Series (N9K-C93180YC-EX)
  • Cisco Nexus 9300 Series (N9K-C93180YC-FX)
  • Cisco Nexus 9300 Series (N9K-C9348GC-FXP)
  • Cisco Nexus 9300 Series (N9K-C93240YC-FX2)
  • Cisco Nexus 9300 Series (N9K-C9336C-FX2)
  • Cisco Nexus 9300 Series (N9K-C93108TC-EX)
  • Cisco Nexus 9300 Series (N9K-C93108TC-EX)
  • Cisco Nexus 9300 Series (N9K-C93180LC-EX)
  • Cisco Nexus 9300 Series (N9K-C93108TC-FX)
  • Cisco Nexus 9300 Series (N9K-C9364C)
  • Cisco Nexus 9300 Series (N9K-C9332C)
  • Cisco Nexus 9300 Series (N9K-C93360YC-FX2)
  • Cisco Nexus 9300 Series (N9K-C93216TC-FX2)
  • Cisco Nexus 9300 Series (N9K-C93600CD-GX)
  • Cisco Nexus 9300 Series (N9K-C9316D-GX)
  • Cisco Nexus 9300 Series (N9K-C9364C-GX)
  • Cisco Nexus 9300 Series (N9K-C93180YC-FX3S)
  • Cisco Nexus 9300 Series (N9K-C93180YC-FX3)
  • Cisco Nexus 9300 Series (N9K-C93180YC-FX3)
  • Cisco Nexus 9300 Series (N9K-C9336C-FX2-E)
  • Cisco Nexus 9300 Series (N9K-C93108TC-FX3P)
  • Cisco Nexus 3000 Series (N3K-C3232C)
  • Cisco Nexus 3000 Series (N3K-C36180YC-R)
  • Cisco Nexus 3000 Series (N3K-C31108TC-V)
  • Cisco Nexus 3000 Series (N3K-C3636C-R)
  • Cisco Nexus 3000 Series (N3K-C3264C-E)
  • Cisco Nexus 3000 Series (N3K-C3132C-Z)
  • Cisco Nexus 3000 Series (N3K-C34180YC)
  • Cisco Nexus 3000 Series (N3K-C3408-S)
  • Cisco Nexus 3000 Series (N3K-C3432D-S)
  • Cisco Nexus 3000 Series (N3K-C3464C)
  • Cisco Nexus 3000 Series (N3K-C34200YC-SM)
  • Cisco Nexus 9500 Series (N9K-X97160YC-EX)
  • Cisco Nexus 9500 Series (N9K-X9636C-R)
  • Cisco Nexus 9500 Series (N9K-X9636C-RX)
  • Cisco Nexus 9500 Series (N9K-X9432C-S)
  • Cisco Nexus 9500 Series (N9K-X9732C-EX)
  • Cisco Nexus 9500 Series (N9K-X9736C-FX)
  • Cisco Nexus 9500 Series (N9K-X9736C-EX)
  • Cisco Nexus 9500 Series (N9K-X9788TC-FX)
  • Cisco Nexus 9500 Series (N9K-X9732C-FX)
  • Cisco Nexus 9500 Series (N9K-X96136YC-R)
  • Cisco Nexus 9500 Series (N9K-X9716D-GX)
  • Cisco Nexus 9500 Series (N9K-X9624D-R2)
  • Cisco Nexus 9200 Series (N9K-C92160YC-X)
  • Cisco Nexus 9200 Series (N9K-C92300YC)
  • Cisco Nexus 9200 Series (N9K-C9236C)
  • Cisco Nexus 9200 Series (N9K-C92304QC)
  • Cisco Nexus 9200 Series (N9K-C92348GC-X)
  • Cisco ASR 9000 Series (A99-12X100GE)
  • Cisco ASR 9000 Series (A99-12X100GE-CM)
  • Cisco ASR 9000 Series (A9K-4X100GE)
  • Cisco ASR 9000 Series (A9K-8x100GE-TR-V2)
  • Cisco ASR 9000 Series (A99-4X100GE)
  • Cisco ASR 9000 Series (A99-32X100GE-TR)
  • Cisco ASR 9000 Series (A9K-16X100GE-TR)
  • Cisco ASR 9000 Series (ASR-9901)
  • Cisco ASR 9000 Series (A9K-20HG-FLEX-SE)
  • Cisco ASR 9000 Series (A9K-20HG-FLEX-TR)
  • Cisco ASR 9000 Series (A9K-8HG-FLEX-SE)
  • Cisco ASR 9000 Series (A9K-8HG-FLEX-TR)
  • Cisco ASR 9000 Series (A99-32X100GE-X-SE)
  • Cisco ASR 9000 Series (A99-32X100GE-X-TR)
  • Cisco ASR 9000 Series (A99-32HG-FC)
  • Cisco ASR 9000 Series (A9K-20HG-FLEX-FC)
  • Cisco ASR 9000 Series (A9K-8HG-FLEX-FC)
  • Cisco ASR 9000 Series (A99-16X100GE-X-SE)
  • Cisco ASR 9000 Series (ASR-9903)
  • Cisco ASR 9000 Series (A9903-20HG-PEC)
  • Cisco ASR 9000 Series (A99-10X400GE-X-TR)
  • Cisco ASR 9000 Series (A99-10X400GE-X-SE)
  • Cisco ASR 9000 Series (A9K-4HG-FLEX-SE)
  • Cisco ASR 9000 Series (A99-4HG-FLEX-TR)
  • Cisco ASR 9000 Series (A99-4HG-FLEX-SE)
  • Cisco ASR 9000 Series (ASR-9902)
  • Cisco ASR 1000 Series (EPA-QSFP-1X100GE)
  • Cisco ASR 903 Series (A900-IMA2C)
  • Cisco NCS 4200 Series (NCS4200-2H-PQ)
  • Cisco NCS 540 Series (N540-24Z8Q2C-SYS)
  • Cisco NCS 540 Series (N540-ACC-SYS)
  • Cisco NCS 540 Series (N540X-ACC-SYS)
  • Cisco NCS 540 Series (N540-24Z8Q2C-M)
  • Cisco NCS 540 Series (N540X-16Z4G8Q2C-A)
  • Cisco NCS 540 Series (N540X-16Z4G8Q2C-D)
  • Cisco NCS 540 Series (N540-28Z4C-SYS-A)
  • Cisco NCS 540 Series (N540-28Z4C-SYS-D)
  • Cisco NCS 540 Series (N540-FH-CSR-SYS)
  • Cisco NCS 540 Series (N540-24Q8L2DD-SYS)
  • Cisco NCS 560 Series (N560-IMA-2C)
  • Cisco NCS 560 Series (N560-IMA-2C-DD)
  • Cisco CBR8 (CBR-SUP-250G)
  • Cisco CBR8 (CBR-DPIC-2X100G)
  • Cisco Catalyst 9600 Series (C9600-LC-24C)
  • Cisco Catalyst 9800 Series (C9800-1X100GE)
  • Cisco Nexus 7700 Series (N77-M312CQ-26L)
  • Cisco Nexus 7700 Series (N77-F430CQ-36)
  • Cisco Firepower (FPR-DNM-2X100G)
  • Cisco Firepower (FPR9K-DNM-2X100G)
  • Cisco Firepower (FPR-NM-2X100G)
  • Cisco Firepower (FPR-NM-4X100G)
  • Cisco Firepower (FPR9K-NM-2X100G)
  • Cisco Firepower (FPR9K-NM-4X100G)
  • Mellanox (Mellanox MCX512A-CCAT)
  • Cisco UCSC (UCSC-PCIE-C100-04)
  • Cisco UCSC (UCSC-MLOM-C100-04)
  • Cisco UCSC (UCSC-M-V100-04)
  • Cisco 8000 Series Routers (8201-SYS)
  • Cisco 8000 Series Routers (8202-SYS)
  • Cisco 8000 Series Routers (8800-LC-36FH)
  • Cisco 8000 Series Routers (8800-LC-48H)
  • Cisco 8000 Series Routers (8201-32FH)
  • Cisco 8000 Series Routers (88-LC0-36FH-M)
  • Cisco 8000 Series Routers (88-LC0-36FH)
  • Cisco Catalyst 8500 Series (C8500-12X4QC)
  • Cisco Catalyst 9300X Series (C9300X-NM-2C)
  • Cisco Catalyst 9500 Series (C9500-32QC)
  • Cisco Catalyst 9500 Series (C9500-32C)
  • Cisco NCS 5500 Series (NC55-36X100G)
  • Cisco NCS 5500 Series (NC55-24X100G-SE)
  • Cisco NCS 5500 Series (NC55-18H18F)
  • Cisco NCS 5500 Series (NC55-24H12F-SE)
  • Cisco NCS 5500 Series (NC55-36X100G-A-SE)
  • Cisco NCS 5500 Series (NCS-5501)
  • Cisco NCS 5500 Series (NC55-36X100G-S)
  • Cisco NCS 5500 Series (NCS-55A1-24Q6H-S)
  • Cisco NCS 5500 Series (NCS-55A1-24Q6H-SS)
  • Cisco NCS 5500 Series (NC57-MPA-2D4H-S)
  • Cisco NCS 5500 Series (NCS-57C3-MOD-S)
  • Cisco NCS 5500 Series (NCS-57C3-MOD-SE-S)
  • Cisco ASR 9000 Series (A99-12X100GE)
  • Cisco ASR 9000 Series (A9K-4X100GE)
  • Cisco ASR 9000 Series (A99-32X100GE-TR)
  • Cisco ASR 9000 Series (A9K-16X100GE-TR)
  • Cisco ASR 9000 Series (A9K-20HG-FLEX-SE)
  • Cisco ASR 9000 Series (A9K-20HG-FLEX-TR)
  • Cisco ASR 9000 Series (A9K-8HG-FLEX-SE)
  • Cisco ASR 9000 Series (A9K-8HG-FLEX-TR)
  • Cisco ASR 9000 Series (A99-32X100GE-X-SE)
  • Cisco ASR 9000 Series (A99-32X100GE-X-TR)
  • Cisco ASR 9000 Series (A99-32HG-FC)
  • Cisco ASR 9000 Series (A9K-20HG-FLEX-FC)
  • Cisco ASR 9000 Series (A9K-8HG-FLEX-FC)
  • Cisco ASR 9000 Series (A99-16X100GE-X-SE)
  • Cisco ASR 9000 Series (ASR-9903)
  • Cisco ASR 9000 Series (A9903-20HG-PEC)
  • Cisco ASR 9000 Series (A99-10X400GE-X-TR)
  • Cisco ASR 9000 Series (A99-10X400GE-X-SE)
  • Cisco ASR 9000 Series (A99-32X100GE-CM)
  • Cisco ASR 9000 Series (A9K-16X100GE-CM)
  • Cisco ASR 9000 Series (A9K-4HG-FLEX-TR)
  • Cisco ASR 9000 Series (A9K-4HG-FLEX-SE)
  • Cisco ASR 9000 Series (A99-4HG-FLEX-TR)
  • Cisco ASR 9000 Series (A99-4HG-FLEX-SE)
  • Cisco ASR 9000 Series (ASR-9902)
  • Cisco NCS 540 Series (N540-24Z8Q2C-SYS)
  • Cisco NCS 540 Series (N540-ACC-SYS)
  • Cisco NCS 540 Series (N540X-ACC-SYS)
  • Cisco NCS 540 Series (N540-24Z8Q2C-M)
  • Cisco NCS 540 Series (N540X-16Z4G8Q2C-A)
  • Cisco NCS 540 Series (N540X-16Z4G8Q2C-D)
  • Cisco NCS 540 Series (N540-28Z4C-SYS-A)
  • Cisco NCS 540 Series (N540-28Z4C-SYS-D)
  • Cisco NCS 540 Series (N540-FH-CSR-SYS)
  • Cisco NCS 540 Series (N540-24Q8L2DD-SYS)
  • Cisco Catalyst 9600 Series (C9600-LC-24C)
  • Cisco Catalyst 9300X Series (C9300X-NM-2C)
