QDD-400-AOC1M | Cisco Compatible 400G QSFP-DD AOC Cable
QDD-400-AOC1M | Cisco Compatible 400G QSFP-DD AOC Cable

Our Price: $765.00

Warranty: 1 Year Warranty


Product Code: QDD-400-AOC1M-CO


Compatibility:


Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

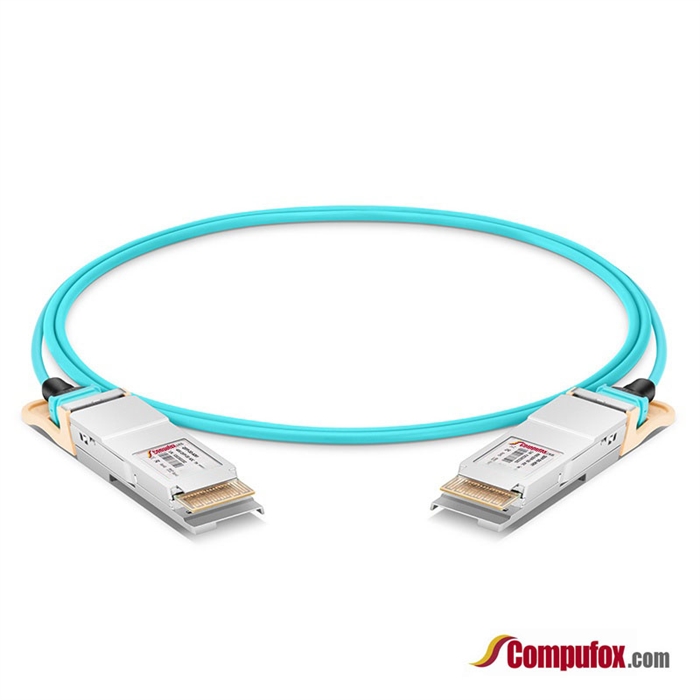

Cisco QDD-400-AOC1M Compatible 400G QSFP-DD AOC (1-meter, QSFP-DD to QSFP-DD).

Specifications:

Form Factor QSFP-DD to QSFP-DD

Data Rate 400Gbps

Cable Length 1m (3ft)

Cable Type OM4

Wavelength 850nm

Minimum Bend Radius 30mm

Transmitter Type VSCEL

Receiver Type 850nm PD

Power Consumption ≤11W

Jacket Material LSZH

CDR (Clock and Data Recovery) TX & RX Built-in CDR

Modulation Format PAM4

DDM/DOM Yes

Commercial Temperature 0 to 70°C

Protocols IEEE 802.3cd, OIF-CEI-04.0, QSFP-DD MSA,QSFP-DD-CMIS-rev4p0

Inbuilt FEC No

Application 8x 50G-PAM4

Cisco Compatible QDD-400-AOC1M


Connection Diagram:
QDD-400-AOC1M Connection Diagram

Compatible Switches and Routers:
  • Cisco C9500 (C9500X-28C8D)
  • Cisco C9500 (C9500X-60L4D)
  • Cisco NCS1000 (NCS1K4-2-QDD-C-K9)
  • Cisco 15454W (NCS2K-1.2T-MXP)
  • Cisco NCS5500 (NC57-18DD-SE)
  • Cisco NCS5500 (NC57-MPA-2D4H-S)
  • Cisco NCS5500 (NC57-MPA-2D4H-S)
  • Cisco NCS5500 (NC57-36H6D-S)
  • Cisco NCS5500 (NC57-MOD-S)
  • Cisco NCS5500 (NCS-57D2-18DD-S)
  • Cisco NCS5500 (NC57-MPA-1FH1D-S)
  • Cisco NCS5500 (NC57-48Q2D-S)
  • Cisco NCS5500 (NC57-48Q2D-SE-S)
  • Cisco N9300 (N9K-C93600CD-GX)
  • Cisco N9300 (N9K-C93600CD-GX)
  • Cisco N9300 (N9K-C9316D-GX)
  • Cisco N9300 (N9K-C9332D-GX2B)
  • Cisco N9300 (N9K-C9332D-GX2B)
  • Cisco N9300 (N9K-C9348D-GX2A)
  • Cisco N9300 (N9K-C9348D-GX2A)
  • Cisco N9300 (N9K-C9364D-GX2A)
  • Cisco N9300 (N9K-C9364D-GX2A)
  • Cisco N9300 (N9K-C9332D-H2R)
  • Cisco N9300 (N9K-C9232E-B1)
  • Cisco N9300 (N9K-C93400LD-H1)
  • Cisco N9500 (N9K-X9400-8D)
  • Cisco N9500 (N9K-X9400-8D)
  • Cisco NCS540 (N540-24Q8L2DD-SYS)
  • Cisco N9800 (N9K-X9836DM-A)
  • Cisco N9800 (N9K-X98900CD-A)
  • Cisco 8000 Series (8201)
  • Cisco 8000 Series (8202)
  • Cisco 8000 Series (8800-LC-36FH)
  • Cisco 8000 Series (8201-32FH)
  • Cisco 8000 Series (88-LC0-36FH-M)
  • Cisco 8000 Series (88-LC0-36FH)
  • Cisco 8000 Series (8101-32FH)
  • Cisco 8000 Series (8202-32FH-M)
  • Cisco 8000 Series (8201-24H8FH)
  • Cisco 8000 Series (86-MPA-14H2FH-M)
  • Cisco 8000 Series (86-MPA-4FH-M)
Features
