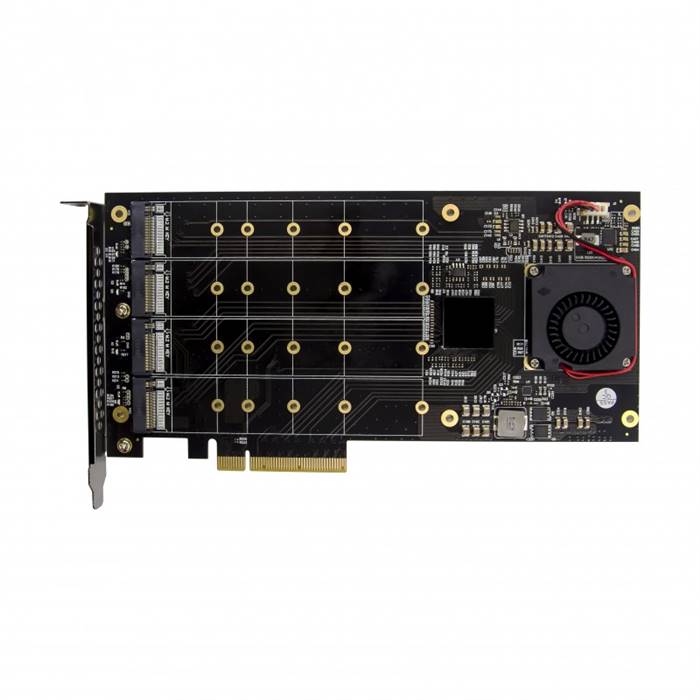

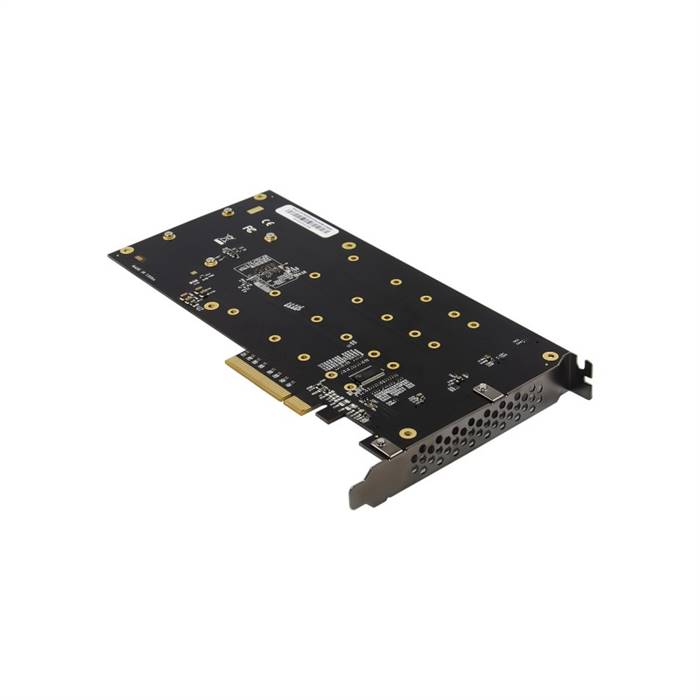

Upgrade your system speed and performance with this 4-port M.2 M-key NGFF NVMe Controller Card. It lets you add four high performance, enterprise-class PCIe 3.0 M.2 SSDs (NVMe and AHCI) into the PCIe 8-lane or larger slot of your desktop workstation or server.

The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. With the M.2 PCIe based drives in place, the adapter increases your storage capacity and gives your computer a significant speed boost, enhancing data transfer rates.

The PCIe M.2 NGFF (M Key) adapter supports PCIe 3.0 NVMe and PCIe-AHCI M.2 SSDs including 2230, 2242, 2260, 2280 and 22110 drives, supporting the most common drive sizes: 30, 42, 60, 80 and 110 mm lengths.

Features

• Backwards compatible with PCIe 2.0 and PCIe 1.0
• Supporting transfer rate of 2.5Gb(250MB/s),5Gb(500MB/s),and 8Gb(1GB/s)per lane
• PCI Express interface: x8
• Supports NVM Express(NVMe)
• Support for 4-Port x4 lane M.2 Key M NVMe SSD device
• Supports M.2 SSD modules sizes:2230,2242,2260,2280,22110mm
• Supports M.2 M-key and "B+M" key with PCIe Protocol
• M.2 Specification Revision 0.9
• Automatic detection of lane configuration on boot-up
• Support L1 sub state deep power saving mode
• Support wake up function in S3/S4
• Support hot-plug, surprise remove
• Operating temperature range:0~85°C
• Support operating system: Linux kernel3.17 or above,Win7,Win8,Win8.1,Win10 32or 64bit
• No driver is required because the driver is transparent to the operating system

Specifications

• Chipset: PLX8724
• Bus Type: PCI Express 3.0 x8
• Connector: 4 * M.2 M-key SSD connectors
• NVMe Type: M.2 Specification Revision 0.9
• Supported Drive Size: 2230, 2242, 2260, 2280 and 22110
• OS Compatibility: OS independent; No software or drivers required
• Environmental
  • Operating Temperature: 0°C to 70°C (32°F to 158°F)
  • Storage Temperature: -25°C to 70°C (-13°F to 158°F)
  • Humidity: 15% ~ 90% RH

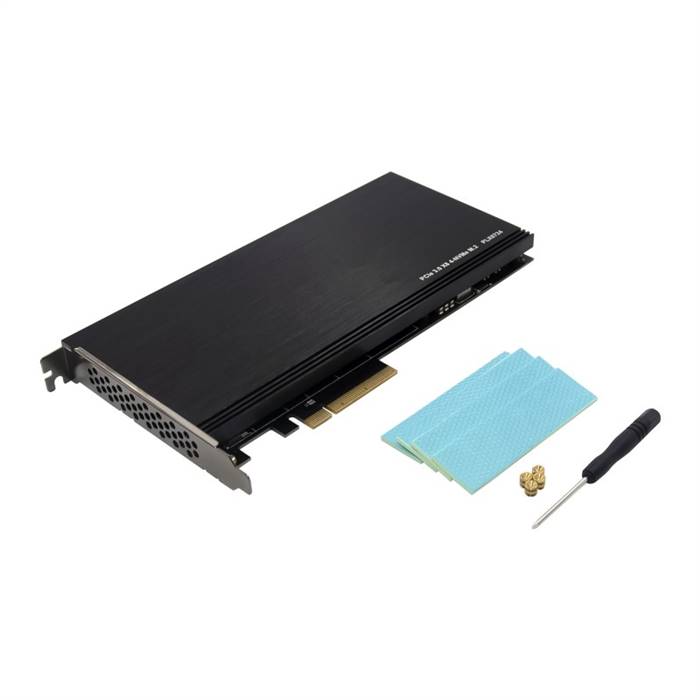

Package Contents

• PCIe 3.0 x8 4-port M.2 M-key NGFF NVMe Controller Card
• Quick-Start Guide
• SSD mounting screws
• Screw driver
• Heat sink
