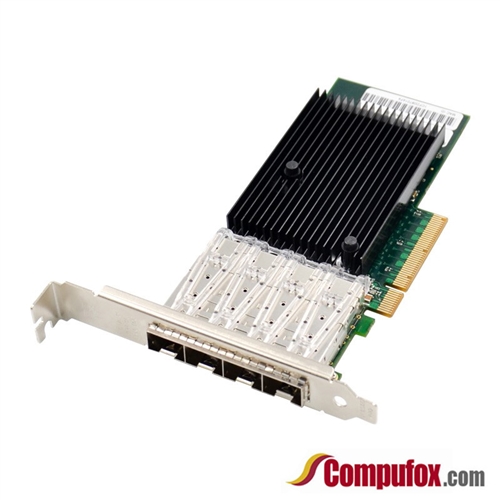

This SFP+ server network card delivers reliable, high-performance network connectivity, by adding four open SFP+ slots to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade to a 10 Gigabit fiber network using SFP+ modules of your choice and gives you the flexibility to use either multimode or single-mode fiber.
With multiple available ports, you can avoid network downtime by adding fault-tolerant connections using two or more modules to provide high-bandwidth network links to your mission-critical servers or workstations. This PCIe network card lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.
The network interface card is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options, for connecting your computer directly to a fiber network at greater distances.
Features
- PCI Express* (PCIe) v3.0, X8
- Supports 4x10GbE configurations
- Exceptional low-power controllers
- Network Virtualization offloads including VXLAN, GENEVE, NVGRE, MPLS, and VXLAN-GPE with Network Service Headers (NSH)
- Intel® Ethernet Flow Director for hardware based application traffic steering
- Dynamic Device Personalization (DDP) enables increased packet processing efficiency for NFV and Cloud deployments
- Data Plane Development Kit (DPDK) optimized for efficient packet processing
- Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
- Intelligent offloads to enable high performance on servers with Intel® Xeon® processors
- I/O virtualization innovations for maximum performance in a virtualized server
Specifications
- Controller-processor: Intel XL710
- Bus Type: PCI Express v3.0 (8 GT/s) x8, compatible with x16
- Port: 4 SFP+ slots
- Port Compatibility: SFP+ Transceiver Module / AOC / DAC
- Standard: 10GBASE-SR, 10GBASE-LR,1000BASE-SX,1000BASE-LX
- Data Rate: 10000 Mbps
- Jumbo Frame: up to 9.5 KB
- Network Protocol: IEEE 802.3az Energy Efficient Ethernet, VXLAN / NVGRE, 802.1q VLAN, IEEE 802.1Qbb, IEEE 802.1az, IEEE 802.1Qbg, IEEE 802.1Qbh
- Advanced Features: VXLAN, NVGRE, GENEVE, VXLAN-GPE+NSH, MPLS
- Physical Interfaces: Support PXE, Jumbo frame, iSCSI, DPDK, FCo, EWOL
- Additional Features:
- VLAN Support
- Enhanced Transmission Selection (draft IEEE 802.1az)
- Jumbo Frame Support—Up to 9.5 KB (9728 Bytes)
- Priority Flow Control (draft IEEE 802.1Qbb)
- Data Center Bridging (DCB/DCB-X) Support; up to 8 traffic classes
- LED Indicators: Link Yellow, 10G: Green blinking
- Operating Systems:
- Server 2003 / Server 2008 / Vista / Win 7 / Win 8 / Win 10 32-64bit
- Windows Server 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 /2016 R2
- FreeBSD, Linux Stable Kernel, VMware ESX/ESXi
Applications
- Add 10Gbps network connectivity to database, file or application servers and high-performance workstations
- Upgrade your onboard network adapter to 10 Gigabit SFP+, for faster communication
- Transmit full 10 Gigabit network speeds to a remote terminal over longer distances than copper cabling
- Create a video/audio editing console with 10Gbps access to network storage
- Supports secure setups - a direct fiber connection means no electronic interference, which can be a problem with RJ45 network cards
- Ideal for remote embedded industrial monitoring systems, and high-speed video surveillance
Package Contents
- 1 x PCIe Quad 10GbE SFP+ Server Fiber NICs XL710
- 1 x User's Manual
- 1 x Driver CD
- 1 x Low profile bracket
SPECIFICATIONS | Chipset | Intel XL710 | Bus Connector | PCIe 3.0 x8 | Ports | 4 * SFP+ slots | Max Data Rate | 10Gbps | Networking Protocol | 10GBASE-SR, 10GBASE-LR,1000BASE-SX,1000BASE-LX, IEEE 802.3az Energy Efficient Ethernet, VXLAN / NVGRE, 802.1q VLAN, IEEE 802.1Qbb, IEEE 802.1az, IEEE 802.1Qbg, IEEE 802.1Qbh | Cabling Type | As per SFP+ module | OS Compatibility | Server 2003 / Server 2008 / Vista / Win 7 / Win 8 / Win 10 32-64bit, Windows Server 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 /2016 R2, FreeBSD, Linux Stable Kernel, VMware ESX/ESXi |
|
|
|
|
|
|
|
