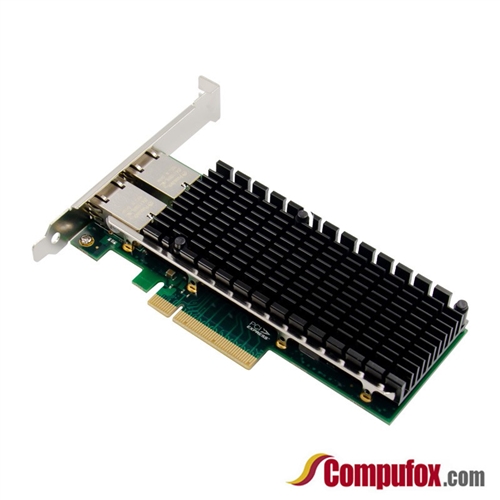

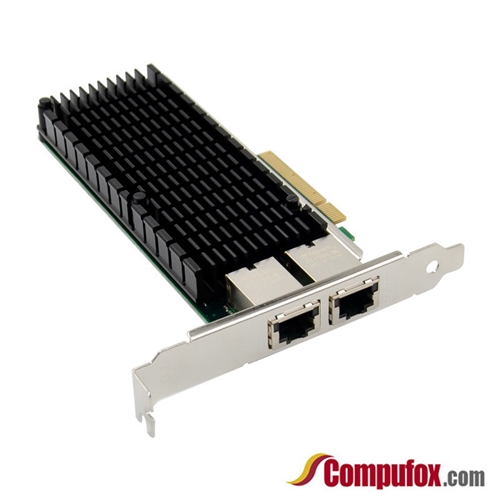

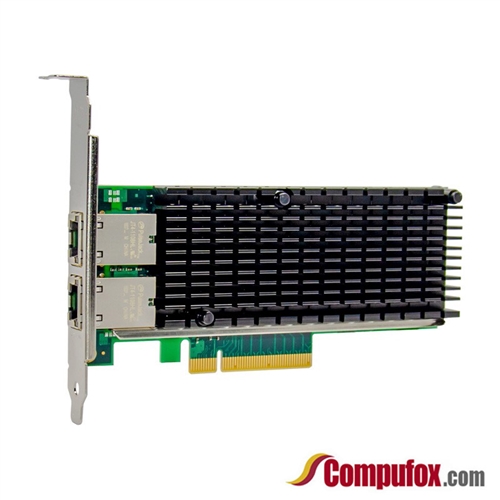

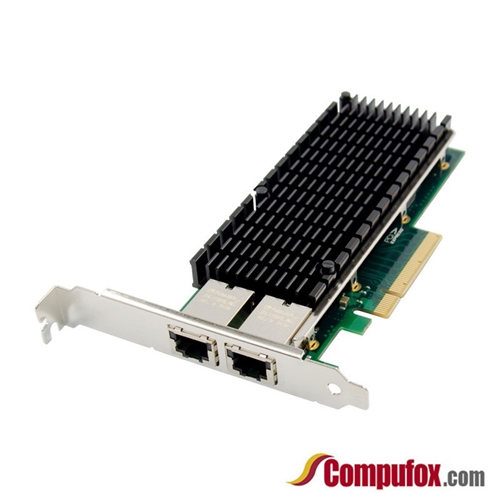

PX8-10G-2T-540 is a PCIe 2.0 x8 10Gbps Dual Copper Port Ethernet Server Adapter based on Intel X540 chipset, and it is compatible with PCIe x16 slot. This server adapter optimizes its performance, making the system I/O no longer be the bottle neck of the network application and it can be used in any PCI Express x8 host device and its master control (Intel X540 10G Ethernet controller) includes two fully integrated Ethernet Media Access Control (MAC) and two fully integrated 10GBASE-T copper PHYs ports.
Features
- Dual-port 10GbE copper port adapters
- PCI Express (PCIe) v2.0, 5.0 GT/s, x8 lanes
- PXE、iSCSI 、FCoE boot
- RJ45 connectivity
- Network Virtualization
- IEEE 802.3an/ab and 10G Ethernet Specification Compliance
- Compliant Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP)
- Features Link Aggregation Control Protocol (LACP)

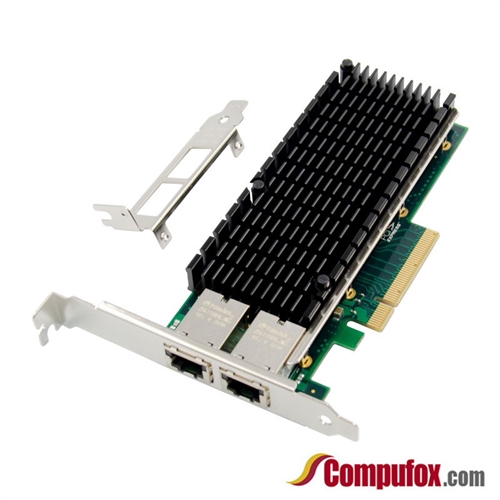

- Low Profile and Full-Height bracket
- Low Cost, Low Power, 10 Gigabit Ethernet (10GbE) Performance for the Entire Datacenter
- Standard CAT-6a Cabling with RJ45 Connectors
- Backward Compatibility with Existing 1000BASE-T Networks Simplifies the Transition to 10GbE
- Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 64 virtual ports
- Unified Networking Delivering LAN, iSCSI, and FCoE in One Low Cost CNA
- Industry First Dual-Port 10GBASE-T Adapter with Single-Chip Solution with Integrated MAC + PHY
- Reliable and proven 10 Gigabit Ethernet technology from Intel Corporation
Specifications
- Controller: Intel Ethernet Controller X540
- Bus Type: PCI Express *2.1 (5.0 GT/s) x8 Lane
- Connector: 2 * RJ45 Copper
- Transmission Rate Per Port: 100 Mbps / 1 Gbps / 10 Gbps
- Cabling Distance
- Cat-6A 10G up to 100m，Cat-6 10G up to 55m
- Cat-5E/Cat-6/Cat-6A 1G/100M up to 100m
- Jumbo Frame: up to 9.5 KB
- Virtualization: VMDq, PCI-SIG SR-IOV, Intel VT-c
- Advanced Features
- IEEE 802.3ad (link aggregation controlprotocol), IEEE 802.3 2005 flow control
- IEEE 802.1Q VLANs, IEEE 802.1p
- Tx/Rx IP, TCP & UDP checksum offloading
- (IPv4, IPv6) capabilities Transmission
- control protocol (TCP), User Datagram
- Protocol (UDP), Internet Protocol (IP))
- Operating Systems
- Server 2003 / Server 2008 / Vista / Win 7 / Win 8 / Win 10 32-64bit
- Windows Server 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 /2016 R2
- FreeBSD, Linux Stable Kernel, VMware ESX/ESXi
| SPECIFICATIONS | | Chipset | Intel X540 | | Bus Connector | PCIe 2.0 x8 | | Ports | 2 * RJ45 | | Max Data Rate | 10 Gbps | | Networking Protocol | IEEE 802.3ad (link aggregation controlprotocol), IEEE 802.3 2005 flow control, IEEE 802.1Q VLANs, IEEE 802.1p | | Cabling Type | 10GBASE-T： 100 m on Cat 6A, 55 m on Cat 6 1000BASE-T： 100 m on Cat 5e, Cat 6 or Cat 6A 100BASE-T： 100 m on Cat 5e, Cat 6 or Cat 6A | | OS Compatibility | Server 2003 / Server 2008 / Vista / Win 7 / Win 8 / Win 10 32-64bit Windows Server 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 /2016 R2 FreeBSD, Linux Stable Kernel, VMware ESX/ESXi |
|
|
|
 |
|
 |
|
