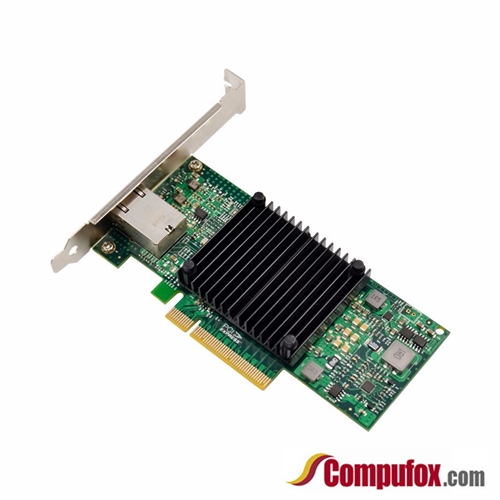

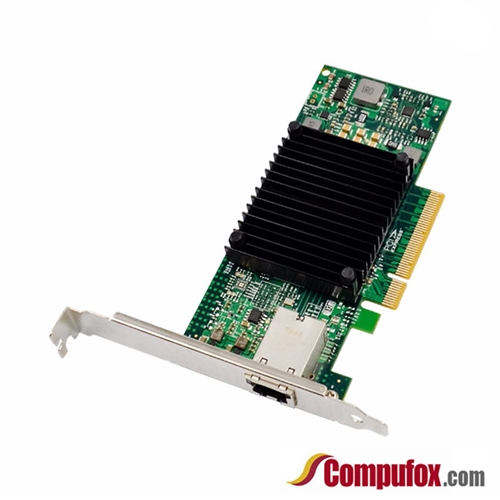

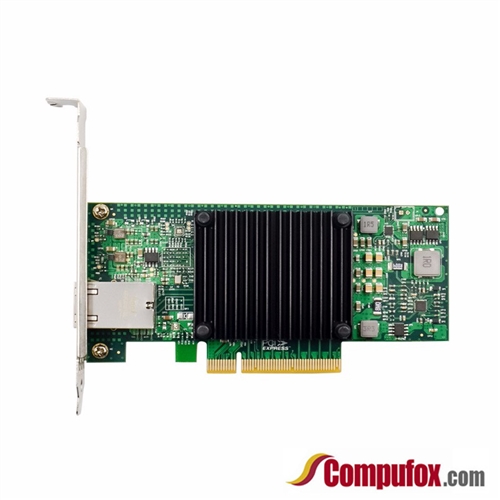

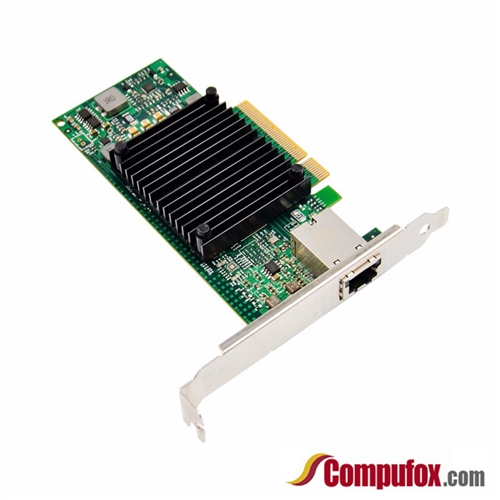

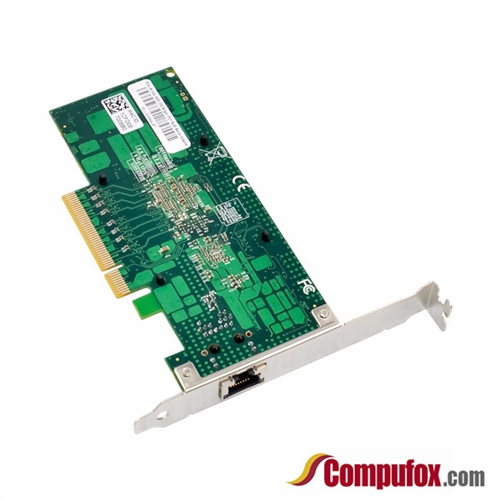

This PCIe 2.0 x8 Ethernet Converged Network Adapter adopts Intel third-generation WMB Network Controller 82599EN. By providing unparalleled features of virtualization, flexible features of LAN and SAN network, and proven reliable performance, it solves the high requirements of the generation data center, it has single 10Gbps RJ45 port which can setup a long-distance link with a file server or a remote workstation.
Features
- Single Port 10GbE RJ45
- Serial Flash Interface
- 4-wire SPI EEPROM Interface
- Configurable LED operation for software or OEM customization of LED displays
- Protected EEPROM space for private configuration
- Device disable capability
- Complies with the 1000BASE-BX specification
- Complies with the IEEE 802.3x 100BASE-TX specification
- Support for jumbo frames of up to 15.5 KB
- Flow control support: send/receive pause frames and receive
- Complies with the 10 Gb/s and 1 Gb/s Ethernet/802.3ap (KX/KX4/KR) specification
- Complies with the 10 Gb/s Ethernet/802.3ae (XAUI)
- Descriptor ring management hardware for transmit and receive
- ACPI register set and power down functionality supporting D0 and D3 states
- A mechanism for delaying/reducing transmit interrupts
- Software-controlled global reset bit (resets everything except the configuration registers)
- Eight Software-Definable Pins (SDP) per port
- Four of the SDP pins can be configured as general-purpose interrupts
- Wake up
- Ipv6 wake-up filters
- Configurable flexible filter (through EEPROM)
- LAN function disable capability
- Programmable memory transmit buffers (160 KB/port)
- Default configuration by EEPROM for all LEDs for pre-driver functionality
- Support for SR-IOV
Specifications
- Chipset: Intel JL82599EN
- Bus Type: PCI Express* 2.0 (5GT/s) x8
- Connector: 1 x RJ45 Copper
- Transmission Rate: 10GbE: 100/1000/10000Mbps
- Function: IPMI pass-through via SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering
- IEEE Standard / Network topology
- 10GBase-SR \ 10GBase-LR \ 10GBase-LRM
- IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3au, IEEE 802.3Qbg, IEEE 802.3Qbb
- System Requirements
- Windows Server 2003 / Server 2008 / R2 / Server 2012 / R2
- Win 7 / Win 8 / Win 8.1 / Win 10 32/64Bit
- DOS, Linux, FreeBSD, Novell, UnixWare / OpenUnix 8
- Applicable Fields: Desktops, Servers, Workstations
Hardware
- Certifications: FCC, CE, RoHS
- Metal Bracket: Full-height and Low-profile
- LED Indicators: 10Gb/s= Activity Yellow / Link Green
Environmental
- Operating Temperature: 0 ~ 55 ℃ (32 ~ 131℉)
- Storage Temperature: -40 ~ 70 ℃ (-40 ~ 158 ℉)
- Storage Humidity: 90% Non-condensing relative humidity at 35 ℃
Package Contents
- 1 * PCIe 10GbE Network card X520 / 82599EN
- 1 * User's Manual
- 1 * Driver CD
- 1 * Low profile bracket
| SPECIFICATIONS | | Chipset | Intel JL82599EN | | Bus Connector | PCIe 2.0 x8 | | Ports | 1 * RJ45 Copper | | Max Data Rate | 10Gbps | | Networking Protocol | IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3au, IEEE 802.3Qbg, IEEE 802.3Q | | Cabling Type | 10GBase-T | | OS Compatibility | Windows Server 2003 / Server 2008 / R2 / Server 2012 / R2, Win 7 / Win 8 / Win 8.1 / Win 10 32/64Bit, DOS, Linux, FreeBSD, Novell, UnixWare / OpenUnix 8 |
|
|
|
 |
|
 |
|
