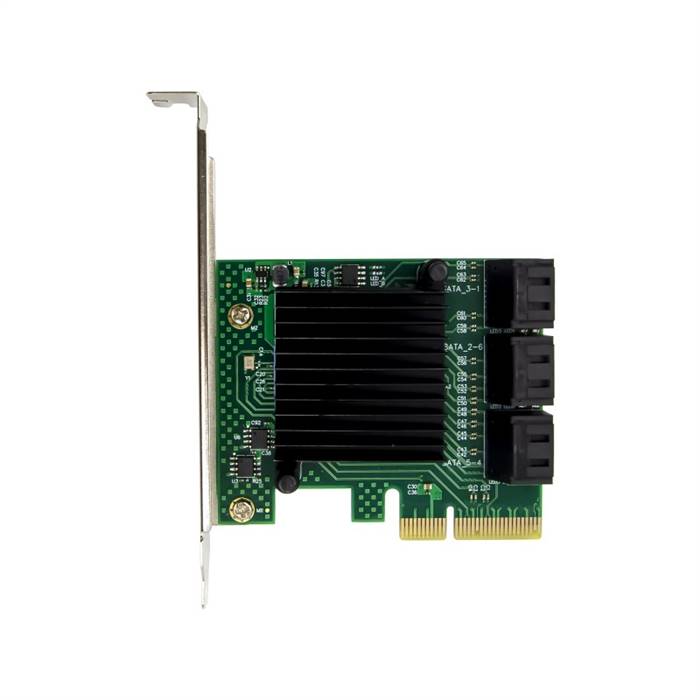

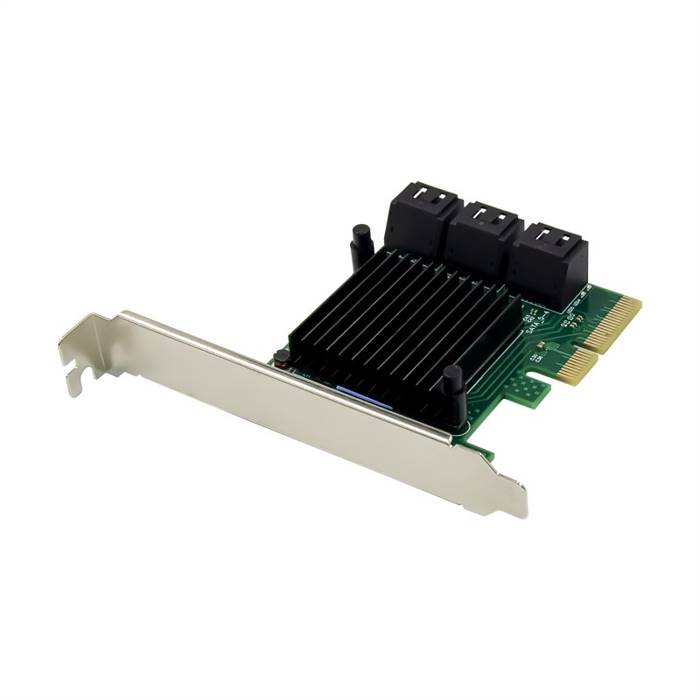

This PCIe 2.0 x4 6-port SATA III 6 Gbps Expansion Card is built on a combination of Asmedia high performance chips ASM1062&ASM1093 to extend six SATA ports. Each SATA port supports transmission data rate up to 6Gbps, and backward compatible to legacy SATA 1.5Gbps or 3Gbps drives. It is widely used in personal computers, office computers and etc.

Features

• Compliant with PCI Express Specification V2.0
• 2.5G and 5Gbps speed auto-negotiation
• Backward compatible with PCI Express 1.x
• Supports PCI Express Link layer power management
• PCI Express interface: PCIe x4 (Gen2x2), compatible with PCI Express x8 and x16 slot.
• Compliant with Serial ATA Specification v3.2
• Supports 6 SATA III port
• Supports communication speeds of 6Gbps, 3Gbps and 1.5Gbps
• 1.5Gbps, 3.0Gbps and 6.0Gbps speed auto-negotiation
• SATA PHY1i/1m/2i/2m/3i
• Supports S.M.A.R.T feature
• On-board with LED read/write indicator
• Hot Plug and Hot Swap
• Support Native Command Queue(NCQ)
• Support Port Multiplier command based switching
• Compatible with SATA 6G,3G and 1.5G SSD / HDD
• Supports partial and slumber power management states
• Supports WindowsXP/Server 2003/Vista/Win7/server2008/ Win8/Win8.1/ win10, MAC, Linux 2.6.x version and above

Specifications

• Chipset: ASM1062 + ASM1093
• Bus Type: PCI Express 2.0 x4
• Connector: 4 * SATA (7 pin, Data)
• Data Rate: 6.0 Gbps, 3.0 Gbps and 1.5 Gbps

Package Contents

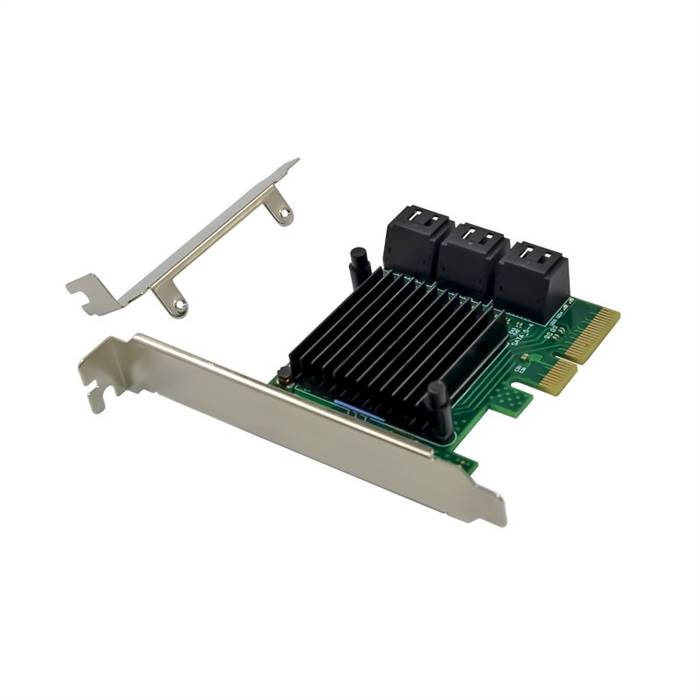

• PCIe 2.0 x4 6-port SATA III 6 Gbps Expansion Card
• Low Profile Bracket
• Driver CD
• Instruction Manual
• 6 SATA Cables
