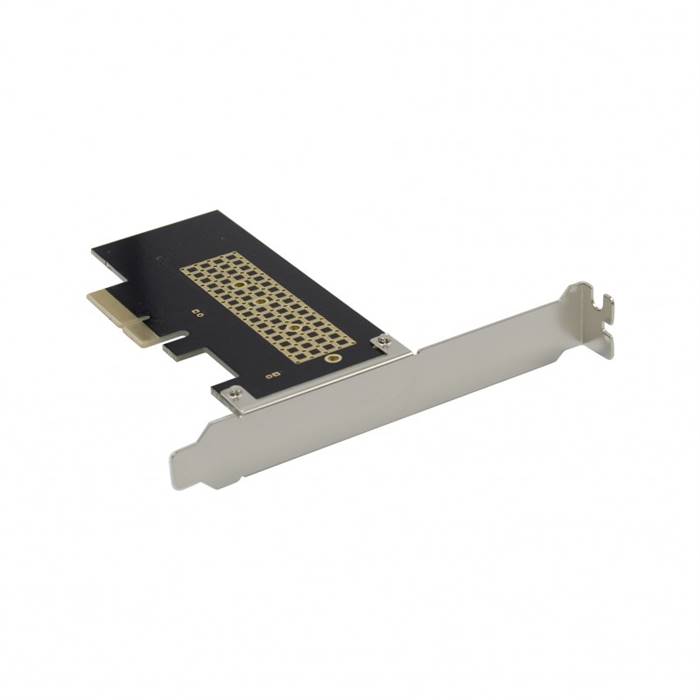

PX4-M2-1M is a PCIe 3.0 x4 1-port M.2 M-key NGFF NVMe Controller Card. The card is designed with PCIe x 4 lane, for PCIe Gen3 (PCIe Gen3 – 5GT/s bandwidth 500MB/s and PCIe Gen2 – 2.5GT/s bandwidth 250MB/s) each lane supports 8GT/s (bandwidth – 984MB/s) transfer rate. With the card, total speed can up to 39Gbps with PCIe 3.0 spec. It supports PCIe – NVMe or PCIe – AHCI, depending on your M.2 SSD. The controller card supports full size of M.2 Card such 22110/2280/2260/2242 SSD. When you insert with Desktop, it has no driver require. It is plug and play. Easy to update your PC's with easy steps.

Features

• Adds one M.2 M key PCIe (NVMe or AHCI) SSD to your PCIe equipped desktop computer to dramatically increase speed and performance
• Support Any "M" Key M.2 SSDs and "B+M" Key M.2 SSDs
• Not compatible with B key M.2 PCIe SSDs or B key M.2 SATA SSDs
• Accommodates 2230, 2242, 2260 and 2280 form factor M.2 PCIe SSDs (NVMe or AHCI) via multiple mounting hole options
• Compatible with PCIe 3.0 specification and backward compatible with PCIe 1.0 and PCIe 2.0 specifications
• Supports PCIe x4 bus slot and compatible with x8 / x16 bus slot
• The M.2 PCIe SSD gets its power supply form the motherboard PCIe BUS slot 3.3v

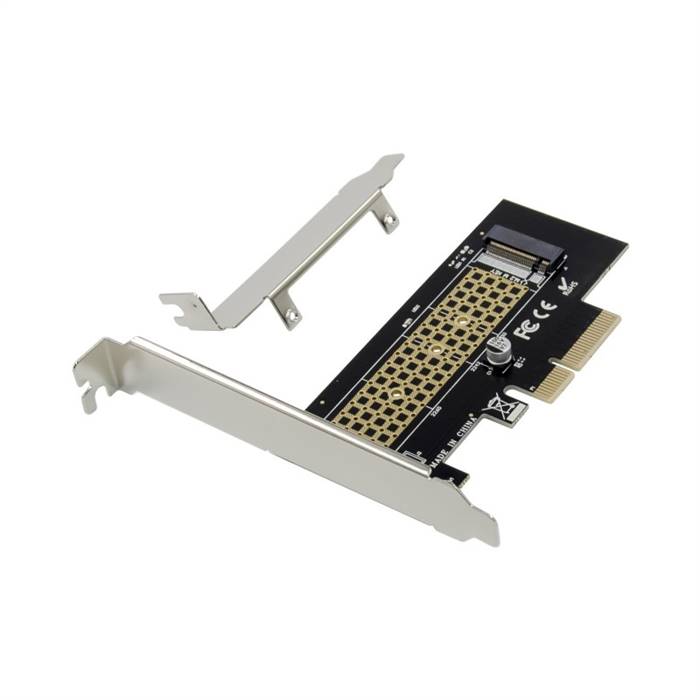

• Includes both low-profile and full-profile slot brackets for flexible system chassis installation
• Plug and Play with no driver installation required

Specifications

• PCIe 3.0 compliant
• Bus type: PCIe (x4)
• Drive type (SSD not included): M key M.2 PCIe SSD (NVMe or AHCI)
  • Note: Systems released prior to 2015 may not support NVME SSDs. Please check with your system provider for compatible SSD
• Compatible drive length: 30 / 42 / 60 / 80 (mm)
• Product:
  • Dimensions: 4.72" (W) x 0.79" (H) x 3.54" (D)
  • Weight: 0.09lbs
  • Color: Black
• Connector:
  • Host bus connector: PCI Express x4
  • SSD: M.2 connector (M key)
• Environmental conditions:
  • Operating temperature: 32 to 122 degrees F
  • Storage temperature: 14 to 140 degrees F
  • Relative humidity: 10% to 90% RH (non-condensing)
• TAA compliant
• Certifications/Standards: FCC, CE, RoHS

System Requirements

• Desktop PC with an available x4 (or larger) PCIe slot
• M.2 NVME PCIe (M key) SSD (SSD not included)
• Windows® 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Server 2012 R2 / 2008 R2

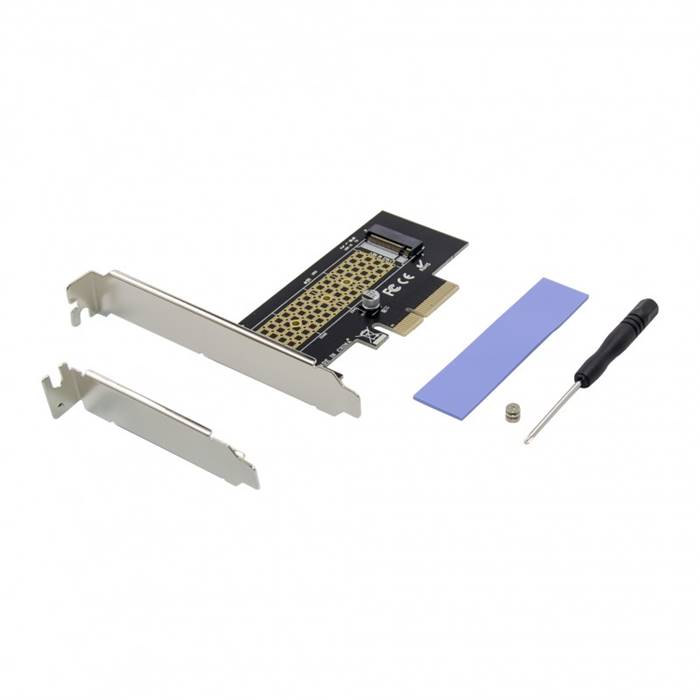

Package Contents

• M.2 NGFF SSD PCIe Card Adapter
• Spare Low Profile bracket
• User Reference Guide
• M.2 Mounting Screw
