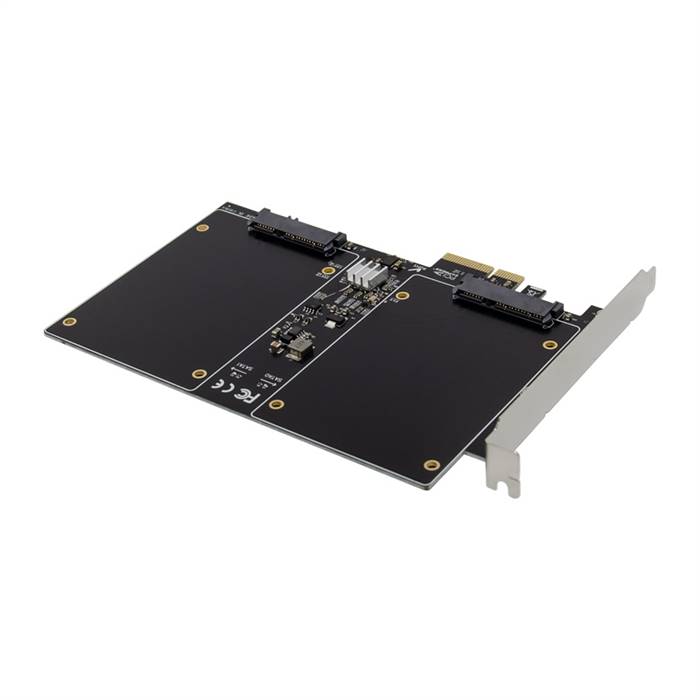

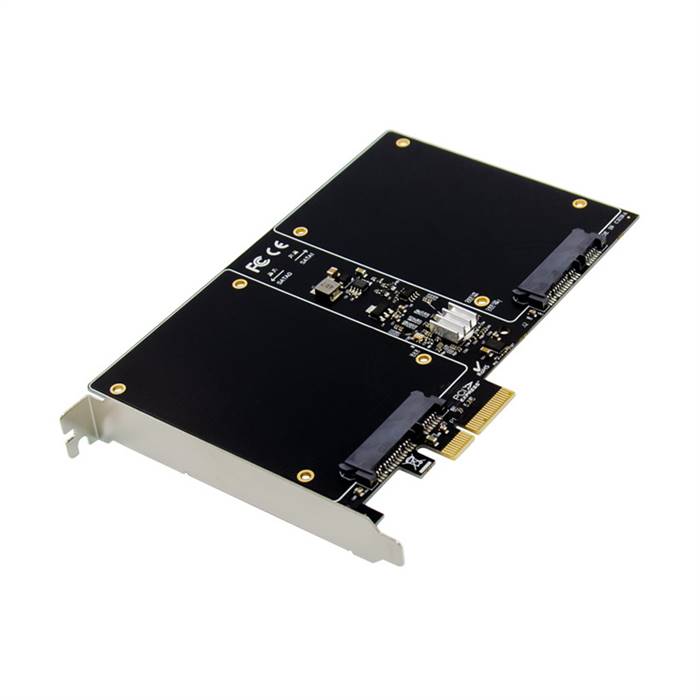

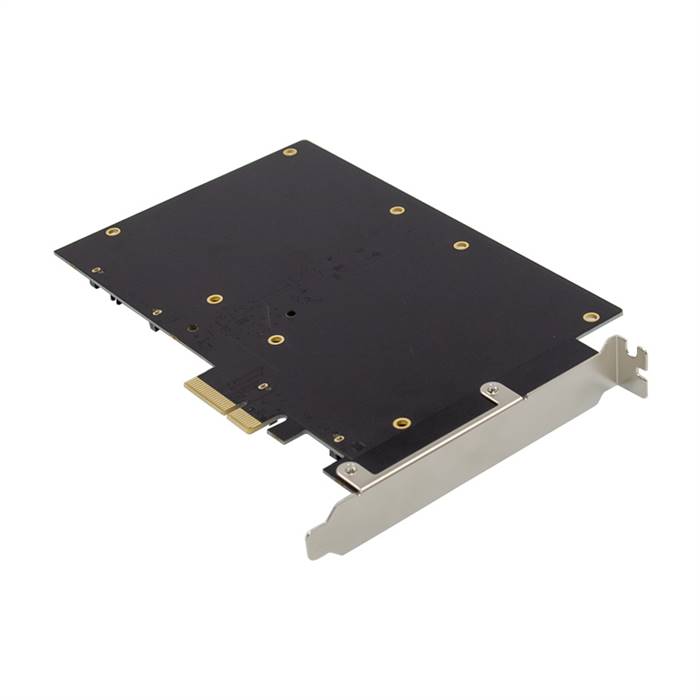

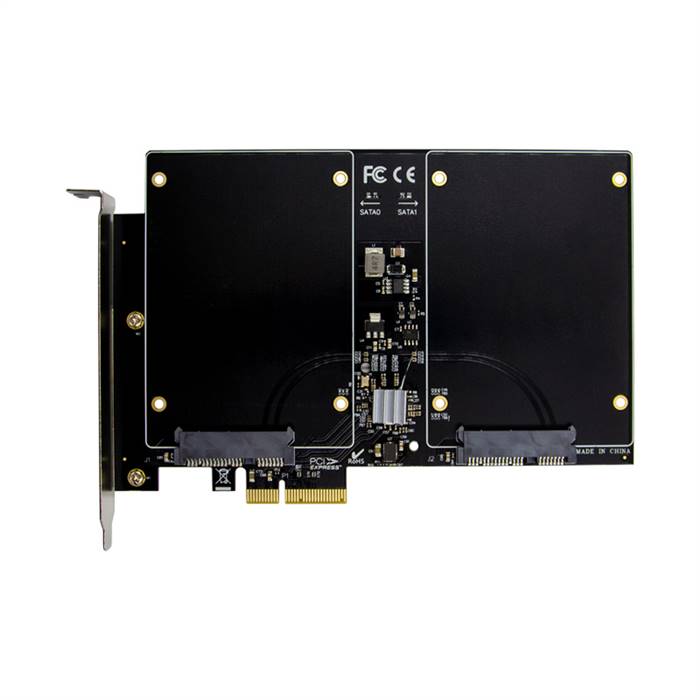

The PCIe 2.0 x2 2-port 2.5-inch SSD / HDD SATA III 6 Gbps RAID card has two SATA GEN III 6Gb/s ports which can host 2.5-inch full-size SSD/HDD, brings server-class features to the desktop computers. This adapter card enable the use of the industry's newest and fastest hard drivers at 6Gb/s while providing backward compatibility to legacy SATA 1.5Gb/s or 3Gb/s drives. It will enhance system performance for every type of computer user. Each PCIe 2.0 lane provides up to 500Mb/s of throughput. Using the RAID function , the SATA drivers attached to this card can be easily configured as 2 individual drives with NO RAID or with RAID0, RAID1, HyperDuo.

Features

• Compliant with PCI-Express Specification V2.0 and backward Compatible with PCI-Express 1.x
• Supports communication speed of 2.5Gbps and 5Gbps
• Compliant with Serial ATA Specification 3.1
• PCI Express x2 interface and compatible with PCI Express X4 ,X8 and X16 slots
• Supports communication speeds of 6Gbps, 3Gbps, 1.5Gbps
• Supports Gen1i, Gen2i, Gen2m,Gen2x, and Gen3i
• Hot plug and Hot Swap
• Support two full size 2.5-inch SSD/HDD
• Compatible with SATA 6G, 3G and 1.5G hard drives
• Support Native Command Queue (NCQ)
• Support Port Multiplier FIS based switching or command based switching
• Support Partial and Slumber Power Management states
• Support RAID Function: RAID 0, RAID1 and HyperDuo

Specifications

• Chipset: Marvell 88SE9230
• Bus Connector: PCI Express 2.0 x4 (work at x2)
• Drive Type: Full size 2.5-inch SSD / HDD
• Compatible with SATA 6G, 3G, 1.5G Hard drives
• Supports communication speeds of 6Gbps, 3Gbps, 1.5Gbps
• Raid array: RAID 0, RAID 1,RAID 10, HyperDuo
• Support Port Multiplier FIS based switching or Command based switching
• Operating mode
  • Safe Mode: Mirror data from SSDs to mechanical hard drives for optimized data protection
  • Capacity Mode: Combine the capacity of solid state drives and mechanical hard disks 2-in-1
• OS Compatibility: Windows XP/Vista/Server 2003/Server 2008 /Win 7/Win 8/Win 10, DOS, Linux2.6.x and above

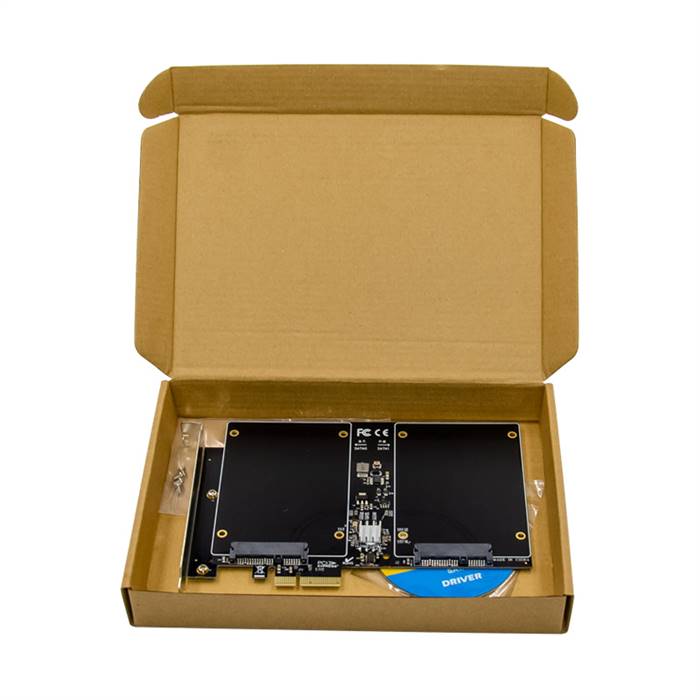

Package Contents

• 1 x PCIe SATA 3.0 2-Channel SSD Card 88SE9230
• 1 x User manual
• 2 x SATA Cable
• 1 x Driver CD
