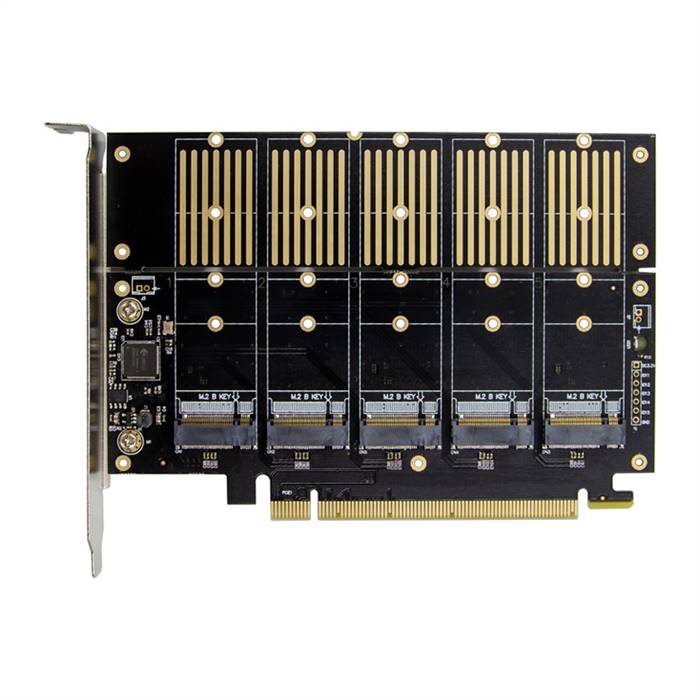

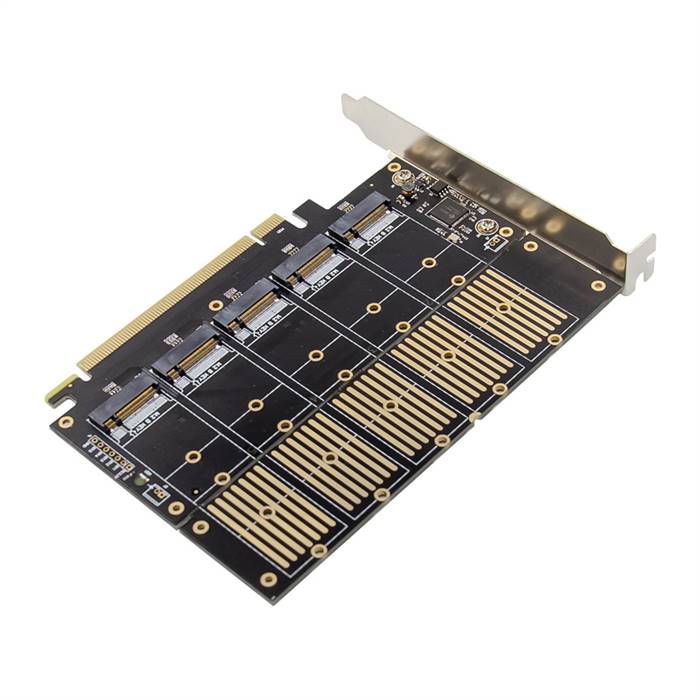

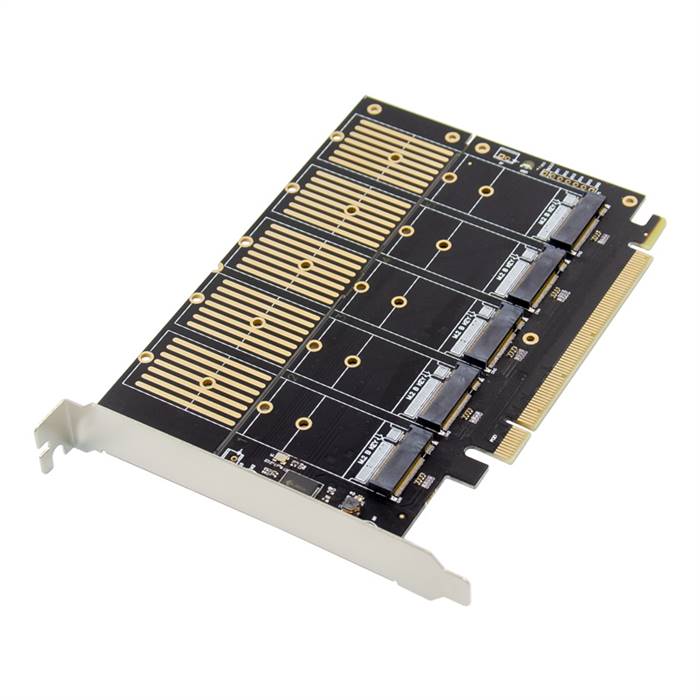

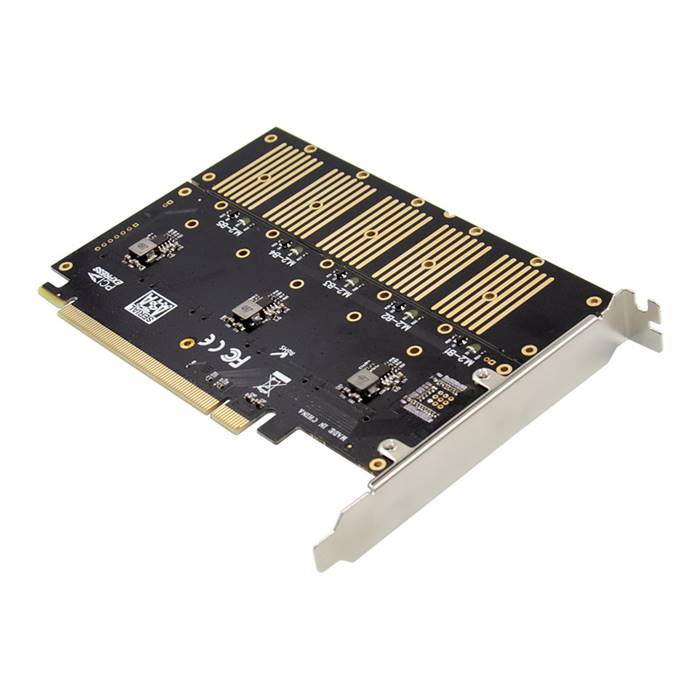

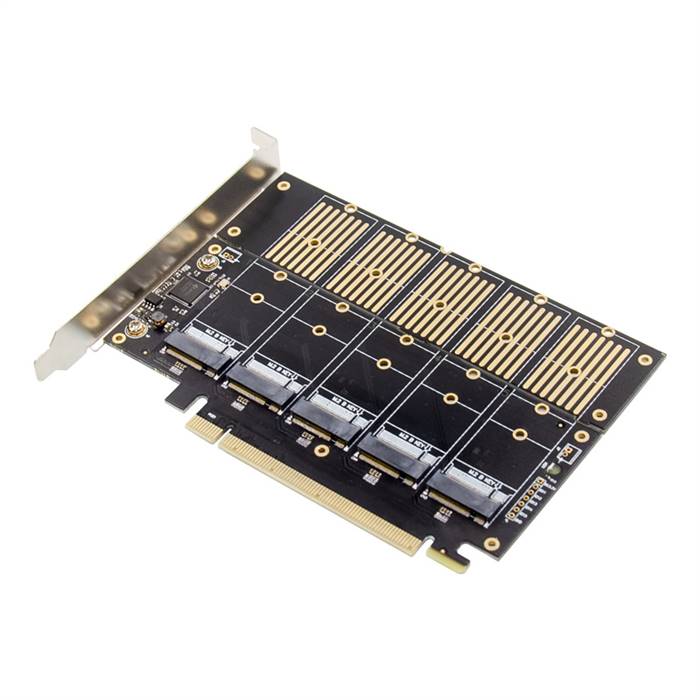

The PCIe 3.0 x16 5-port M.2 B-Key NGFF SSD Expansion Card provides a platform for adding up to five M.2 B-key SSDs to virtually any computer that has a PCIe x16 slot. It can expand the overall storage capacity of your desktop PC or server easily.

Features

• Compliant with PCI Express basic specification revision 3.1a
• Support PCI Express link layer energy saving mode
• Support command-based and FIS-based port multipliers
• Compliant with SATA specification revision 3.2
• Support AHCI mode and IDE programming interface
• Support native command queue (NCQ)
• Support SATA Link power saving mode (partial and hibernation)
• Support SATA plug-in detection function
• Support drive power control and staggered rotation
• Support SATA Partial / Slumber power management status
• Plug and play, No additional software installation or settings required

Specification

• Chipset: JMB585
• Bus Type: PCI Express x16 Revision 3.1a
• Connector: 5 x M.2 B Key SSD connetors
• Data rate: 6Gbps (SATA Gen 3.1 )
• Functions: For the SSD type M.2 "B + M Key" or "B Key"
• Complies with M.2 Key B
• SSD Size: 2230, 2242,2260, 2280
• Management function: SATA plug-in detection, SATA Link power saving mode (partial and hibernation)
• Operation System: Linux / Win 7 / Win 8 / Win 8.1 / Win 10,32&64bit
