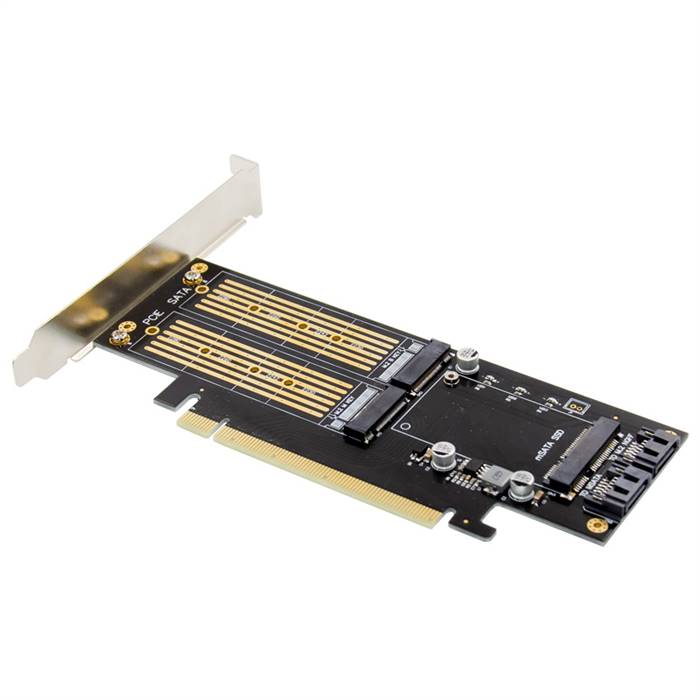

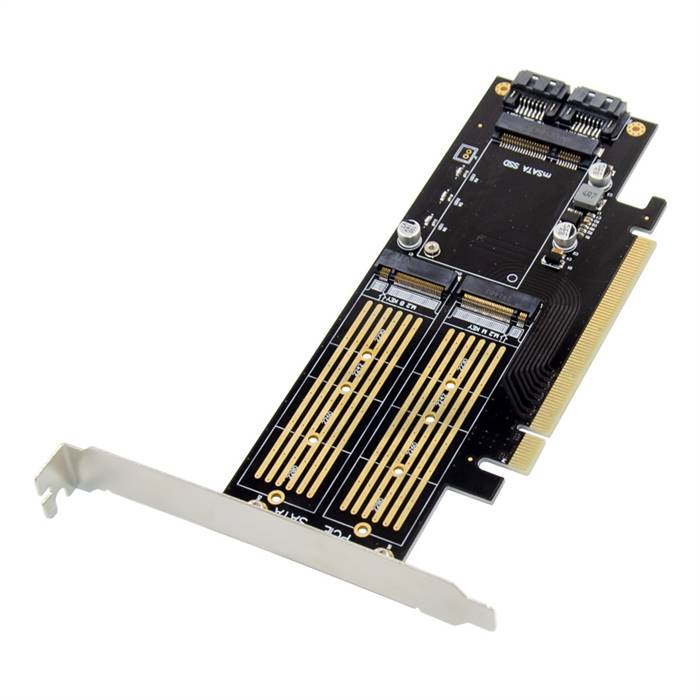

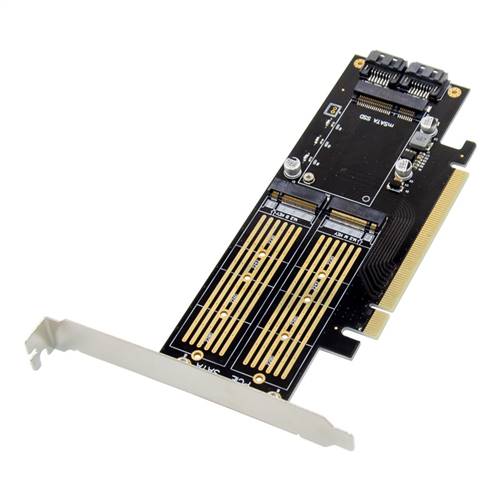

This PCIe 3.0 x16 3-in-1 SSD Adapter is a multi-functional M.2 NGFF controller card. It supports three types of SSDs: M.2 B-key SSDs, M.2 M-key SSDs and mSATA SSDs. It supports the PCIe protocol NVMe SSDs to be connected directly to the motherboard. It also supports the SATA Protocol AHCI SSDs to be connected to the motherboard's SATA port through a SATA cable. It supports ultra-fast PCI Express 3.0 x4 lanes with transmit bandwidth up to 32GT/s. And it supports with Serial ATA v3.0 with transmit speed up to 6Gbps. Through this adapter, you can increase the speed and performance of your computer.

If you need a simple and discreet way to expand your computer's storage, then this card can help. It supports common M.2 SATA SSDs, as well as newer high-performance M.2 PCIe drives. It also supports older mSATA SSDs. Now, you have a simple and effective way to expand the storage of your computer, regardless of the M.2 drive types you are using.

When you couple this card with a PCI Express based M.2 drive, you can give your computer's performance a noticeable speed boost. With support for PCI Express 3.0 (up to approximately 40Gbps), you can install the latest high-performance M.2 PCIe SSDs inside your computer. With faster performance, you can get more work done in less time.

This M.2 card lets you take advantage of the size and performance benefits of NGFF M.2 SSDs. M.2 drives are smaller than typical platter drives or mSATA-based SSDs, so you can install them in small form-factor PCs and servers, or in tighter areas within your computer case.

Features

• Compliant with PCI Express Specification Revision 3.0
• Compliant with Serial ATA Specification Revision 3.0
• Support Key B/M M.2 SSDs including 2230, 2242, 2260, 2280 and 22110 drives
• Backwards compatible with PCIE V2.0 and V1.0 mainboards
• Supported drive sizes: 110, 80, 60, 42 and 30mm
• Support Any "M" Key M.2 SSDs, "B" Key and "B+M" Key M.2 SSDs
• Support mSATA half/full size SSDs
• B-Key slot can insert SSDs of M.2 NGFF SATA Protocol, then insert SATA cable to connect the adapter with motherboard. The SSD will be powered by PCIe Bus. No external power supply needed.
• M-Key slot can insert SSDs of M.2 NVMe PCIe Protocol. The SSD will communicate with motherboard through PCIe interface, no need for SATA cable.
• The M.2 PCIe SSD gets its power supply form the motherboard PCIe BUS slot 3.3v
• No driver is required

Specifications

• Bus Type: PCI Express 3.0 x16

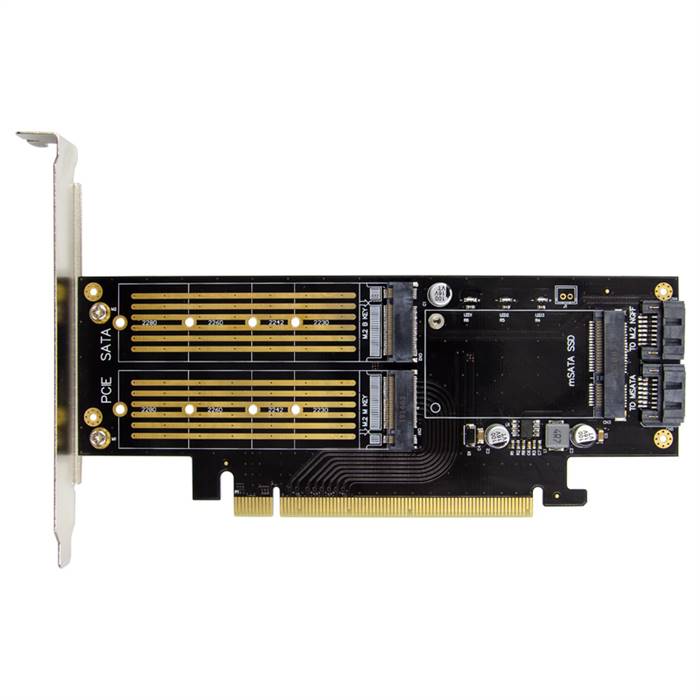

• Connector
  • 1 x M.2 B-key connector
  • 1 x M.2 M-key connector
  • 1 x mSATA SSD connector
  • 2 x 7-Pin SATA interface
• Data rate: transmit speed up to 6Gbps
• Raid array: No-RAID
• Support B-key / M-key M.2 SSDs including 2230, 2242, 2260, 2280 and 22110 drives
• The M.2 PCIe SSD gets its power supply form the motherboard PCIe BUS slot 3.3v
• Operating mode
• Safe Mode: Mirror data from SSDs to mechanical hard drives for optimized data protection
• Capacity Mode: Combine the capacity of solid state drives and mechanical hard disks 2-in-1
• System: Win 7 / Win 8 / Win 8.1 / Win 10, DOS , Linux2.6.x and above

Package Contents

• 1 x PCIe 3.0 x16 3-in-1 SSD Adapter
• 1 x User Manual

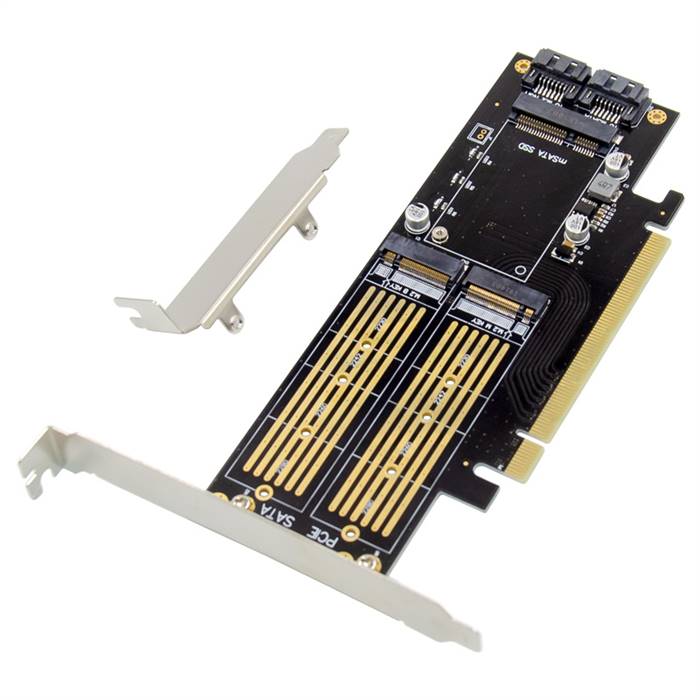

• 1 x Low profile bracket
