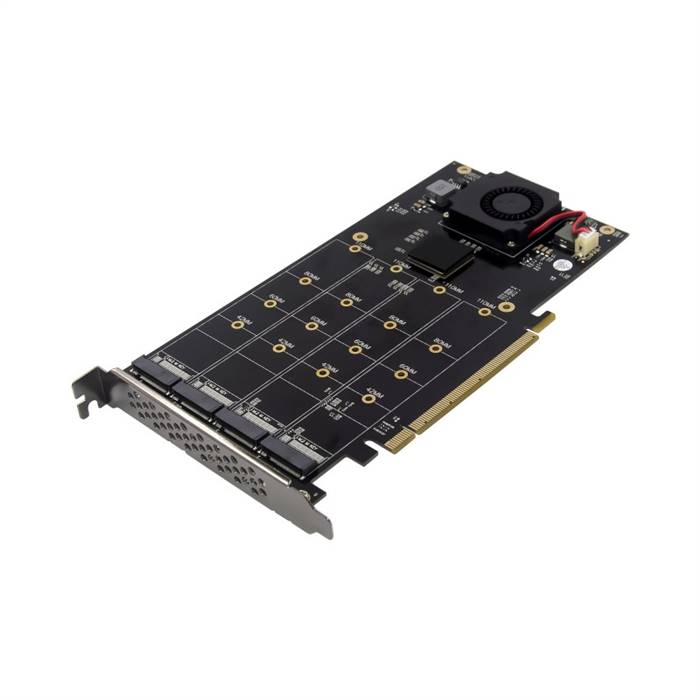

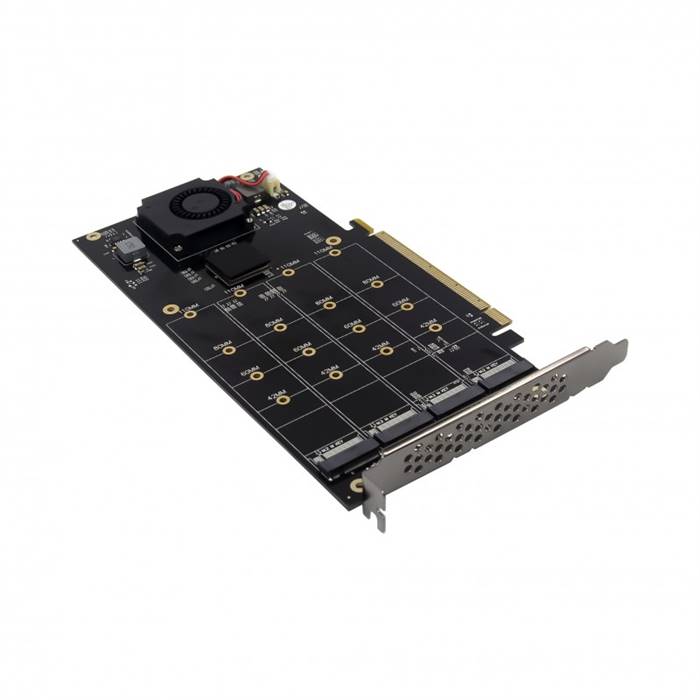

The PCIe 3.0 x16 4-port M.2 M-key NVMe SSD Expansion Card provides four M.2 M-key slots to let you expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure drives stay cool for optimum performance.

Features

• Compliant with PCI Express Specification Revision v3.0
• Backwards compatible with PCIe 2.0 and PCIe 1.0
• PCI Power Management Specification Revision1.2
• Supporting transfer rate of 2.5Gb(250MB/s),5Gb(500MB/s),and 8Gb(1GB/s)per lane
• The PCIe transfer rate up to 128Gb/s and the SSD transfer rate up to 32Gb/s.
• PCI Express interface: x16
• Supports NVM Express(NVMe)
• Support for 4-Port x4 lane M.2 M-key NVMe SSDs
• Supports M.2 SSD modules sizes: 2230, 2242, 2260, 2280 and 22110mm
• Supports M.2 "M" key and "B+M" key with PCIe Protocol
• LED read/write indicator
• On board active cooling FAN
• M.2 Specification Revision 0.9
• Automatic detection of lane configuration on boot-up
• Support wake up function in S3/S4
• Support hot-plug, surprise remove
• Support L1 sub state deep power saving mode
• Operating temperature range:0~85°C
• Support operating system: Linux kernel3.17 or above,Win7,Win8,Win8.1,Win10 32or 64bit
• No driver is required because the driver is transparent to the operating system

Specifications

• Chipset: PLX8747
• Bus Type: PCIe 3.0 x16
• Connector: 4 x M.2 M-key SSD connectors
• Data Rate: 2.5Gb (250MB/s), 5Gb (500MB/s), and 8Gb (1GB/s) per Lane
• Drive Type: M.2 Key M NVMe SSD
• Drive Size: 2230, 2242, 2260, 2280 and 22110 mm
• Functions
  • Support wake up function in S3/S4
  • Automatic detection of lane configuration on boot-up
• OS Compatibility: Win 7 / Win 8 / Win 8.1 / Win 10 32 or 64bit, Linux kernel3.17 or above

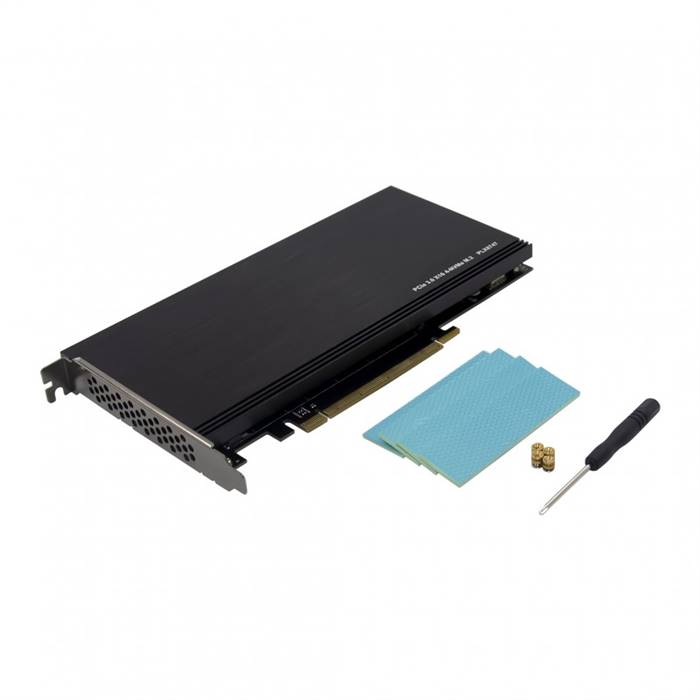

Package Contents

• 1 x PCIe x16 PEX8747 4-Port M.2 NVMe SSD adapter
• 1 x User Manual
• 4 x Screws
• 1 x Screw Driver
• 1 x Heat Sink
