Using this adapter card, you can exploit both RAID and NVMe technology on normal mainboard to gain ultra SSD performance for gaming or 8K/4K video processing

Features

• Compliant with PCI Express Specification Revision v3.0
• Backwards compatible with PCIe 2.0 and PCIe 1.0
• Supporting transfer rate of 2.5Gb(250MB/s),5Gb(500MB/s),and 8Gb(1GB/s)per lane
• PCI Express interface: x16
• Supports NVM Express(NVMe)
• Support for 4-Port x4 lane M.2 Key M NVMe SSD device
• Supports M.2 SSD modules sizes:2230,2242,2260,2280
• Supports M.2" M" key and "B+M" key with PCIe Protocol
• M.2 Specification Revision 0.9
• Automatic detection of lane configuration on boot-up
• Support L1 sub state deep power saving mode
• Support wake up function in S3/S4
• Support hot-plug, surprise remove
• Operating Temperature range:0~85°C
• Support operating system: Linux kernel3.17 or above,Win7,Win8,Win8.1,Win10 32or 64bit
• No driver is required because the driver is transparent to the operating system

Specifications

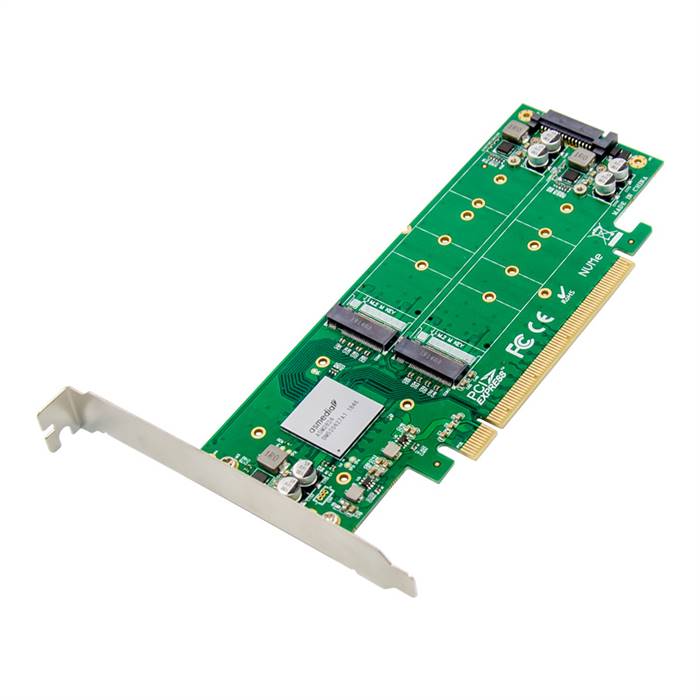

• Chipset: Asmedia ASM2824
• Bus Type: PCIe 3.0 x16
• Connector
  • 4 x M.2 M-key SSD connectors
  • 1 x 7-Pin SATA interface
• Data Rate: 2.5Gb (250MB/s), 5Gb (500MB/s) , and 8Gb (1GB/s) per Lane
• Drive Type: M.2 Key M NVMe SSD
• Drive Size: 2230, 2242, 2260 and 2280mm
• Functions
• Support wake up function in S3/S4
• Automatic detection of lane configuration on boot-up
• OS Compatibility: Win 7 / Win 8 / Win 8.1 / Win 10 32 or 64bit, Linux kernel3.17 or above

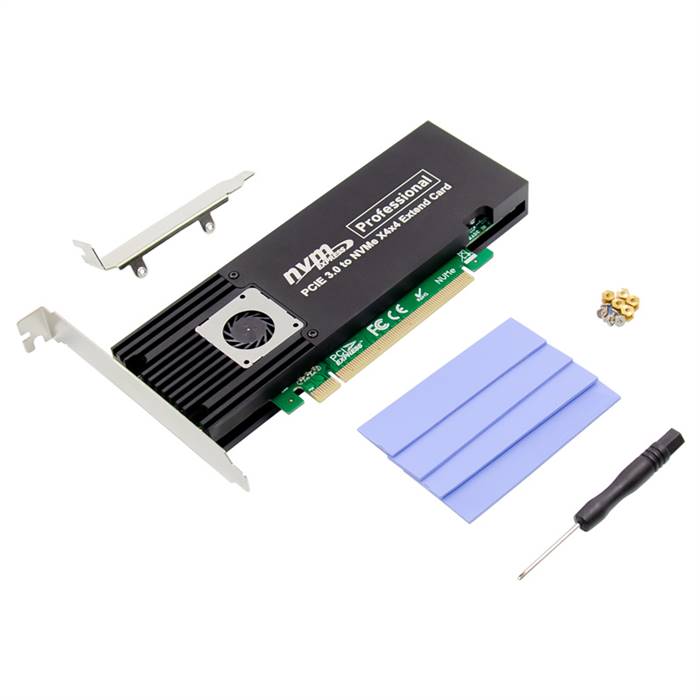

Package Contents

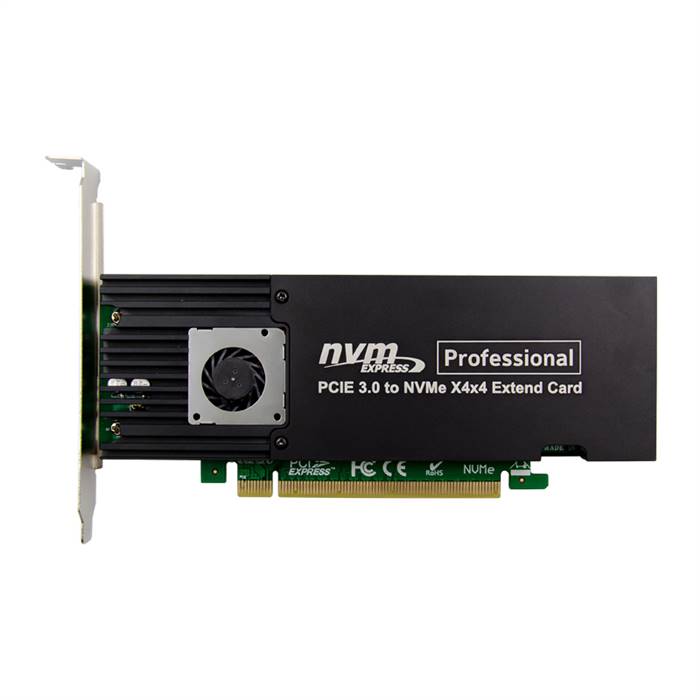

• 1 x PCIe 3.0 x16 4-port M.2 M-Key NGFF NVMe SSD Expansion Card
• 1 x User Manual
• 1 x Low Profile Bracket
• 5 x Screws
• 1 x Screw Driver
• 1 x Heat Sink
