The PX1-WIFI-300M
PCI Express Wireless N Card (PCIe x1) adds high speed wireless network
connectivity to almost any PCI Express-enabled desktop/workstation PC.
Using a 2T2R (2 Transmitter/2 Receiver) design over the 2.4GHz
frequency, this PCIe wireless card provides up to 300Mbps of data
bandwidth over an 802.11n network, while improving signal reception and
range. Backward compatible with 802.11b/g networks (11/54Mbps),
this WiFi N adapter offers a versatile wireless networking solution with
support for standard and advanced security options such as WEP, WPA and
WPA2, along with wireless Quality of Service (QoS) support and quick
and easy setup through WPS. Features - Compliant with PCI Express host interface specification v2.0
- Connector interface:x1
- 2.4GHz band rate up to 300Mbps
- Complies with 802.11a, 802.11b, 802.11g, 802.11n
- Supports simultaneous Client and SoftAP modes
- Wi-Fi Direct for peer to peer device connections
- Support authentication with WPA and WPA2, 802.1X(EAP-TLS,TTLS,PEAP,LEAP,EAP-FAST),EAP-SIM,EAP-AKA
- Wireless power gain:2*5dB
- Complies with dual mode Bluetooth 4.0
- Dual mode Bluetooth 2.1,2.1 + EDR,3.0,3.0+HS,4.0(BLE)
- Drivers support for Windows 7 32/64bit,Windows 8 32/64bit,Windows 8.1 32/64bit,Windows 10 32/64bit
Specifications - Chipset: Intel Wireless-N 7260
- Bus Type: PCIe x1
- Transmission Rate: up to 300Mbps
- Frequency Range
- WIFI: 2.4GHz
- Bluetooth: 2.402GHZ~2.4835GHZ
- Antenna: 2x5dBi
- IEEE WLAN Standard: IEEE802.11a, 802.11b, 802.11g, 802.11n
- Bluetooth: Dual mode Bluetooth 2.1,2.1+EDR,3.0,3.0+HS,4.0
- Modulation Type
- WiFi: 802.11a/b/g/n: OFDM
- 802.11B: CCK, DQPSK,BPSK
- Bluetooth: header GFSK
- Payload2M: 4-DQPSK
- Payload3M: 8DPSK
- OC Compatibility: Windows 7/8/8.1/10

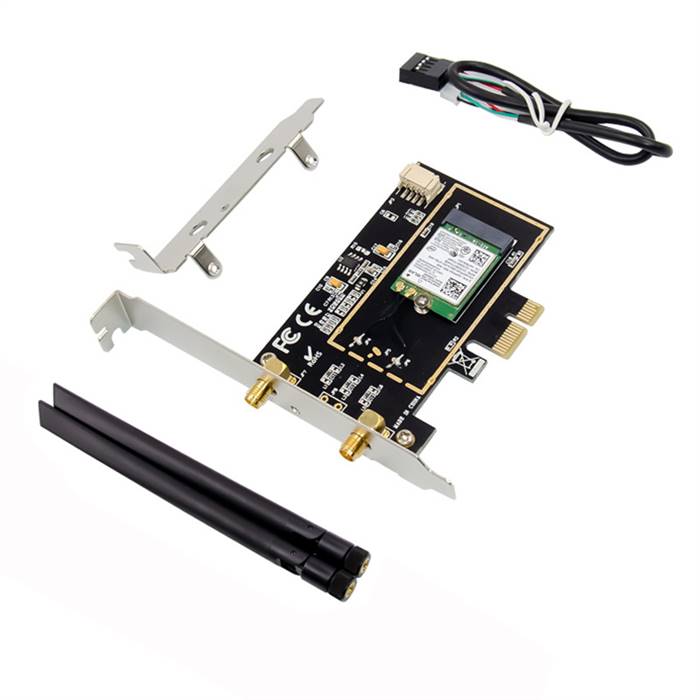

Package Contents - 1 x PCIe Intel 7260 Dual band Wireless Adapter
- 1 x User Manual
- 1 x CDDriver
- 1 x Low profile bracket
- 2 x 5dBi Gain antenna
- 1 x 9-pin to 4-pin USB Cable
|
|
|
 |
|
 |
|
