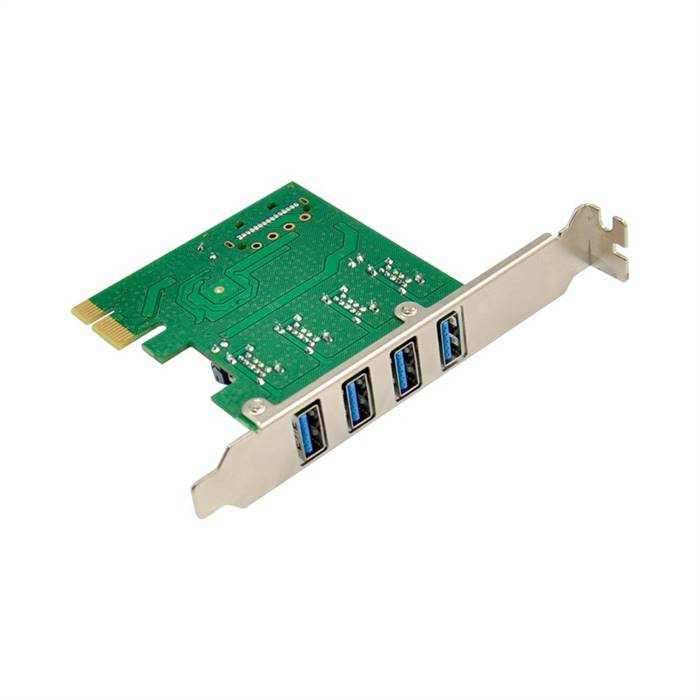

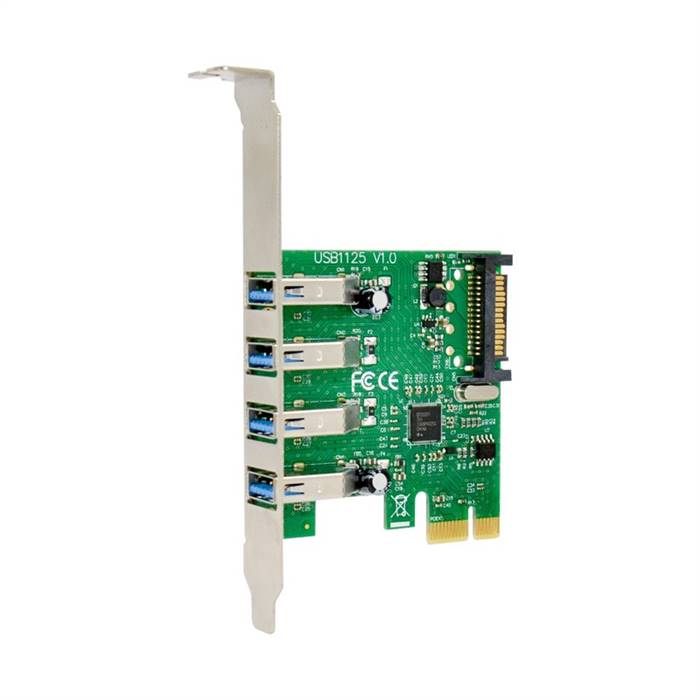

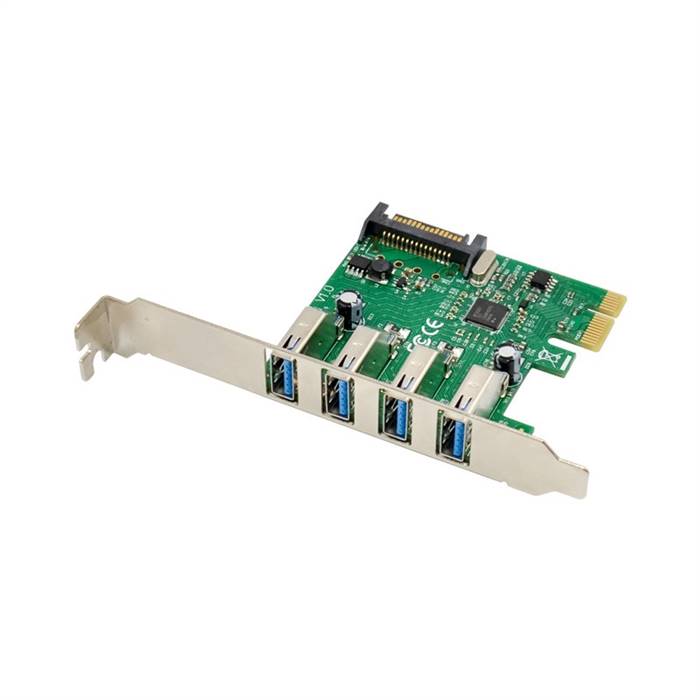

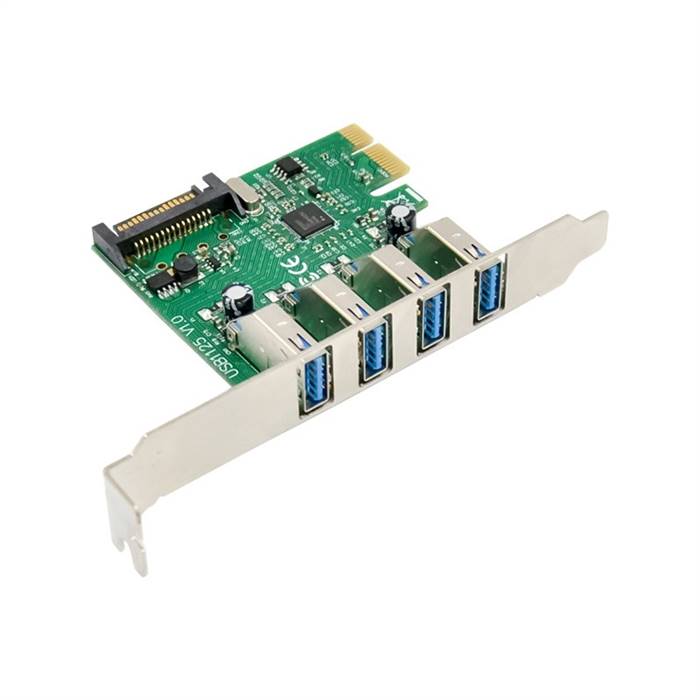

The PX1-U30-4A-201H PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 Type-A ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.

The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket.

Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.

Features

• 4 external USB 3.0 Type-A ports in a stacked layout
• UASP support for more efficient data transfer
• Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.95 specifications
• Optionally provides up to 900mA per USB port
• Built-in optional SATA power connector for bus-powered USB devices
• Backward compatible with USB 2.0 and USB 1.0/1.1 devices
• Compliant with PCI Express 2.0 specifications
• Includes a Low Profile/half-height installation bracket

Specifications

• Chipset: NEC 720201
• Host Bus: PCI Express xl
• Connectors
  • 4x 9-pin USB 3.0 Type A, Female
  • 1x 15-pin SATA power connector
• Version: PCI Express 2.0
• Compliant with USB 3.0 Specification
• USB data transfer rate: Up to 5Gbps
• Per port over-current protection
• USB power output: Up to 5V/900mA
• SATA power connection is required
• OS Compatibility
  • Windows® XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
• Environmental Conditions
  • Operating temperature: 32 to 140 degrees F
  • Storage temperature: 14 to 158 degrees F
  • Relative humidity: 5% to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS

Package Contents

• PCI Express USB 3.0 Card
• Low Profile Bracket
• Driver CD
• Instruction Manual
