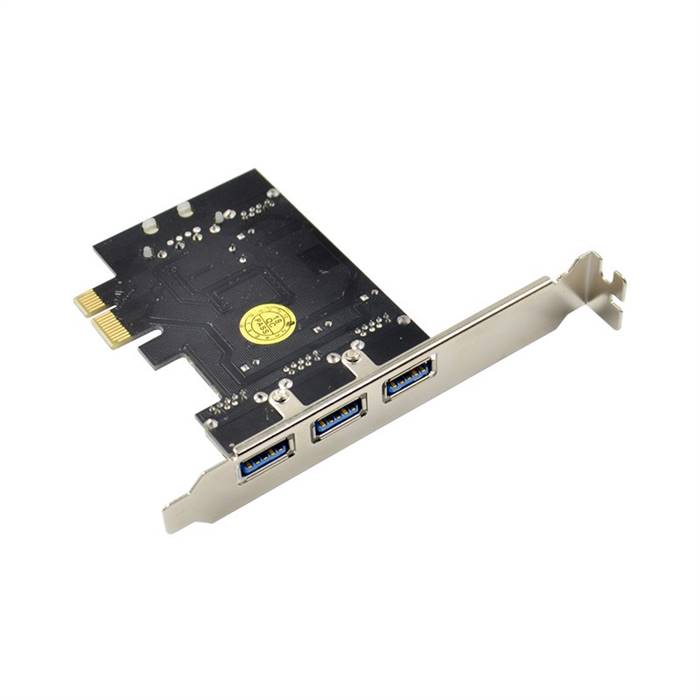

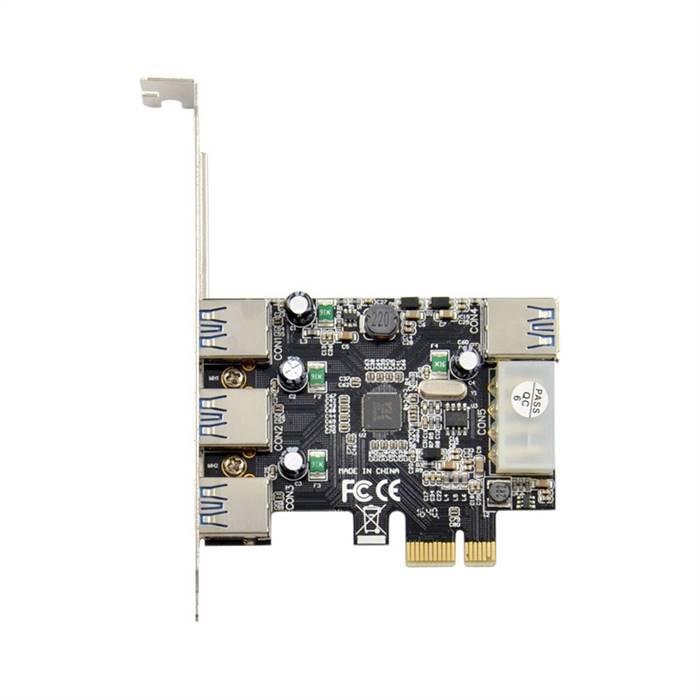

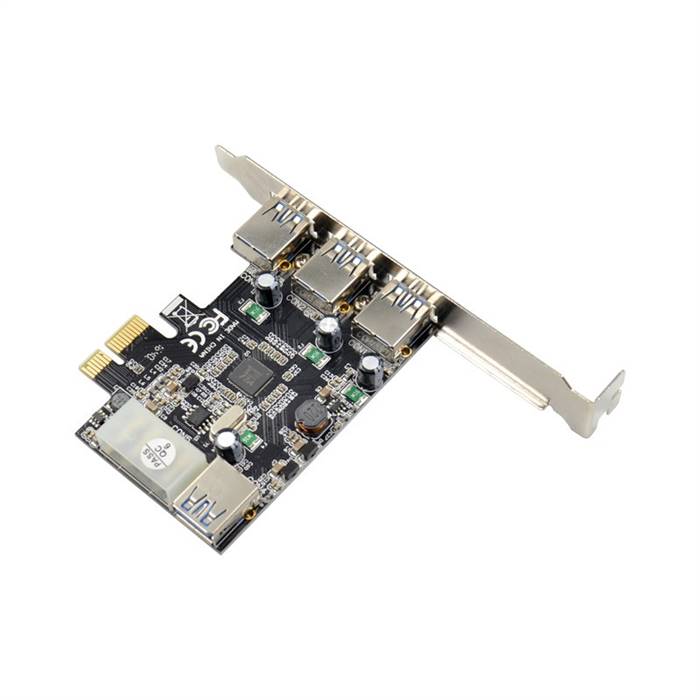

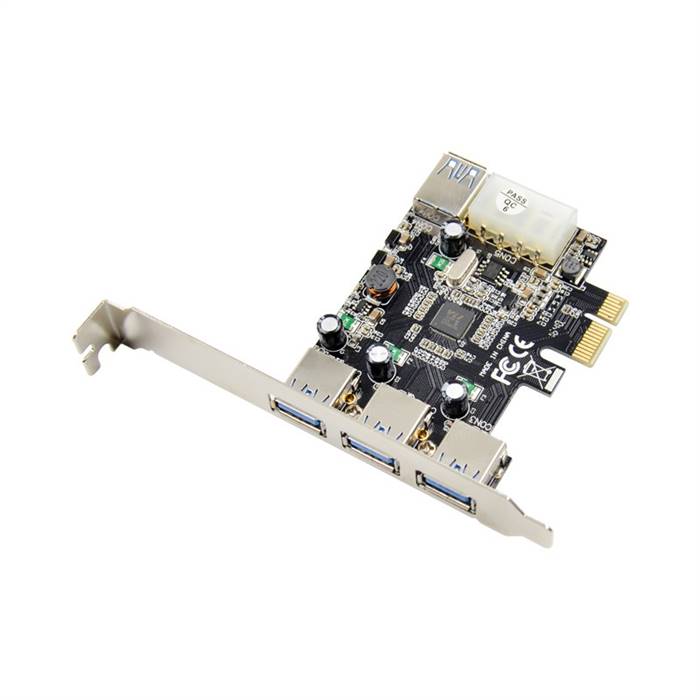

Here’s a cost-effective solution for adding USB 3.0 connectivity to your computer. This 4-port PCIe USB 3.0 card gives you three external ports and one internal port, for the ultimate connection flexibility. With three external USB 3.0 ports you can connect more devices to your computer. The card provides easy access to commonly-used peripherals such as your tablet and external hard drive. It also features an internal USB port that lets you connect a device such as a flash drive inside your computer case, providing added security and convenience. USB 3.0 gives you fast access to your files with data transfer rates up to 5 Gbps. Plus it's backward compatible with USB 2.0 and 1.x devices, which eliminates the cost and aggravation of upgrading your existing devices.

Setup is a breeze with native operating system support. The USB 3.0 adapter card automatically installs in Windows 10, 8.1, 8 and 7. For convenient installation, this PCI Express USB 3.0 card features a dual-profile design that can be installed in almost any type of computer. It comes with a standard profile bracket and also includes a low-profile bracket for installation in small form-factor/half-height systems.

Features

• Expands your computer connectivity with four extra USB 3.0 ports (3 external, 1 internal)
• Easy to install with native OS support in Windows 8.1, 8, 7, and Linux kernel 2.6.31 or later
• Fits standard or small form-factor computers, low-profile bracket included
• Data transfer rates up to 5 Gbps plus UASP support
• Backward compatible with USB 2.0 and 1.x devices
• Built-in optional SATA power connector provides up to 900mA per USB port
• PCIe x1 interface, compliant with PCI Express 2.0 specifications

Specifications

• Chipset: VL805
• Host Bus: PCIe 2.0 x1
• Connectors
  • 3 x 9-pin, USB 3.0, Type A, External
  • 1 x 9-pin, USB 3.0, Type A, Internal
  • 1 x 4-pin IDE power connector, Internal
• Compliant with USB 3.0 specification
• Compliant with PCI Express Base Specification, Revision 2.0
• Supports ultra-fast data transfer rate up to 5Gb/s and backward compatible with USB 2.0/1.1 devices
• Dual profile design to work with full height and low profile chassis with included brackets
• Supports per port over-current protection
• Product Dimensions: 3.9" (W) x 4.72" (H) x 0.79" (D)
• Product weight: 0.12 lbs
• OS Compatibility
  • Windows® XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019
  • Linux 2.6.31 to 4.11.x LTS Versions only
• Environmental conditions
  • Operating temperature: 32 to 140 degrees F
  • Operating humidity: 10% to 90% RH (non-condensing)
  • Storage temperature: 14 to 176 degrees F
  • Storage humidity: 10% to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS

Package Contents

• 4 Port PCI Express USB 3.0 Card
• Low-Profile Bracket
• Driver CD
• Instruction Manual
