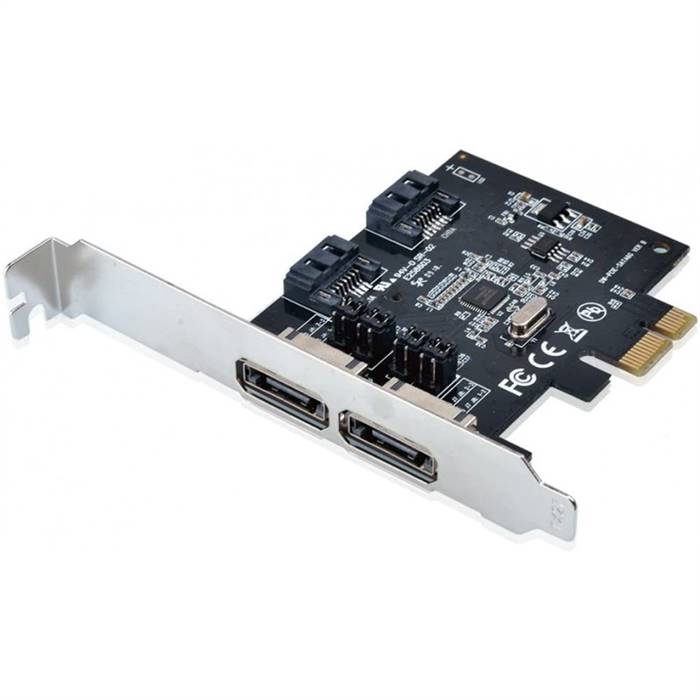

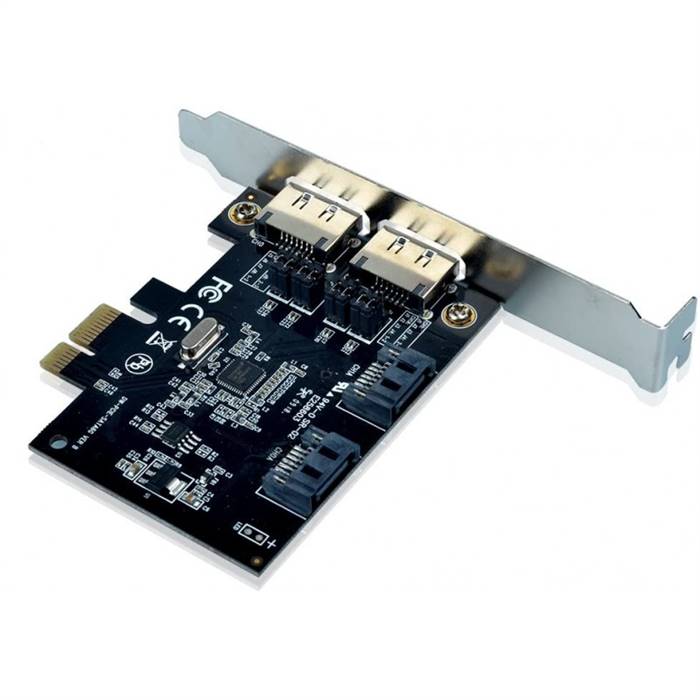

The PX1-S2-2I2E is a 2-ch Serial ATA II 3 Gbps to PCI Express Host Adapter Card. It has two internal SATA ports and two external eSATA ports. The card is designed to provide multiple port serial ATA connectivity with minimal host overhead and host to device latency. The card supports a 1-lane 2.5 Gb/s PCI Express bus and the Serial ATA Generation 2 transfer rate of 3.0 Gb/s (300 MB/s). The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA II ports, or one of each, as needed.

The card is fully compliant with the SATA revision 2.0 specification (up to 3Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).

Features

• Two internal/external switchable SATA ports
• Compliant with SATA revision 2.0, which can support up to 3Gbps of bandwidth
• Backward compatible to SATA 1.0a specification
• Support for SATA-based optical drives (CD/DVD/BD)
• Compliant with PCI Express Specification Revision 1.0a
• Support 1-Lane (x1) PCI Express with transfer rate 2.5 Gb/s
• Hot plugging supported
• Supports Native Command Queuing (NCQ), Non-zero offsets NCQ, and Out-of-order data delivery NCQ
• Supports RAID 0(striping) and RAID 1(mirroring) for speed and data protection respectively

Specifications

• Chipset: Silicon Image Sil3132
• Bus Type: PCIe 1.0 x1
• Connector
  • 2 * Internal SATA (7 pin, Data)
  • 2 * External eSATA (7 pin, Data)
• Data Rate: eSATA / SATA up to 3.0 GB/s
• Raid Array
  • RAID 0(striping) , RAID 1(mirroring) for speed and data protection respectively
  • Native Command Queuing (NCQ), Non-zero offsets NCQ, Out-of-order data delivery NCQ
• OS Compatibility
  • Windows® XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019

Package Contents

• 1 x PCIe 1.0 x1 2-ch SATA II 3 Gbps Controller Card
• 1 x Driver CD
• 1 x SATA Data Cable
• 1 x Instruction Manual
