This

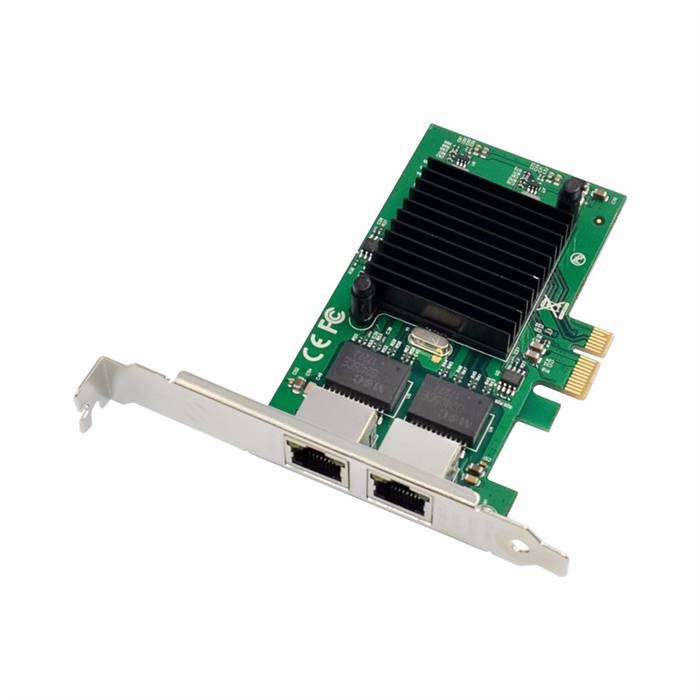

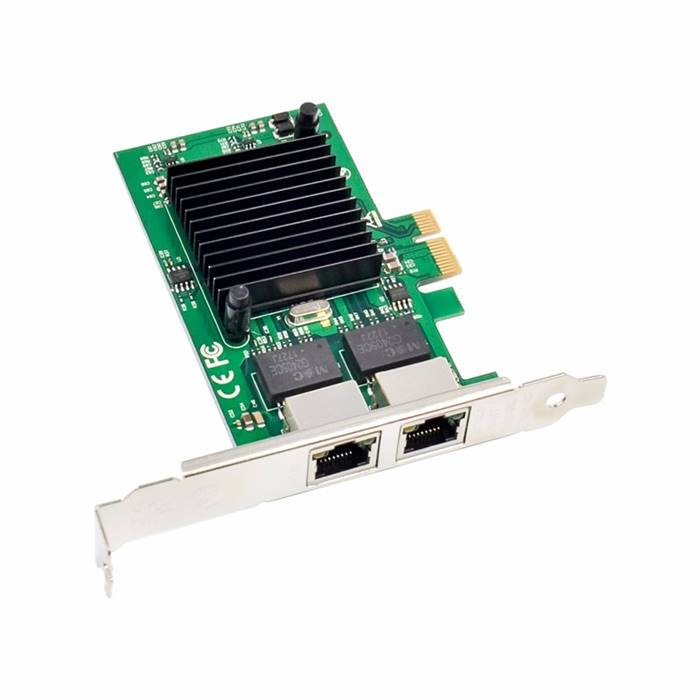

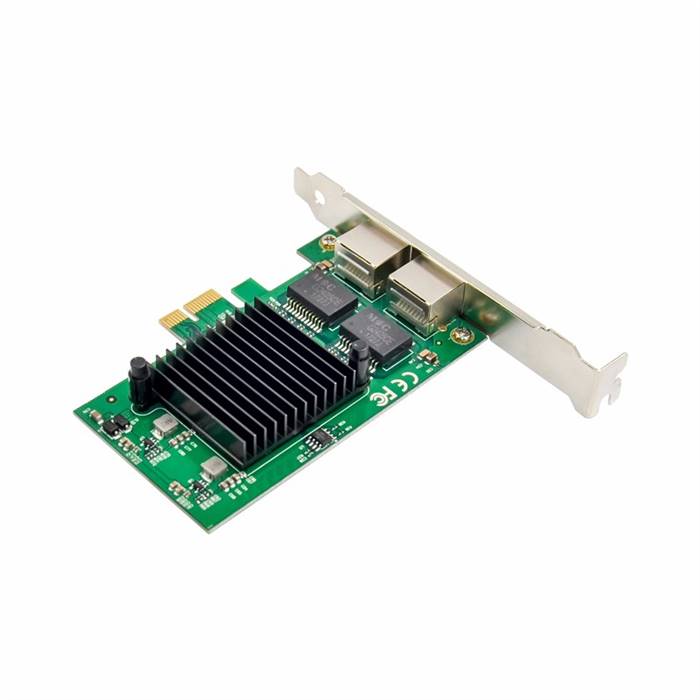

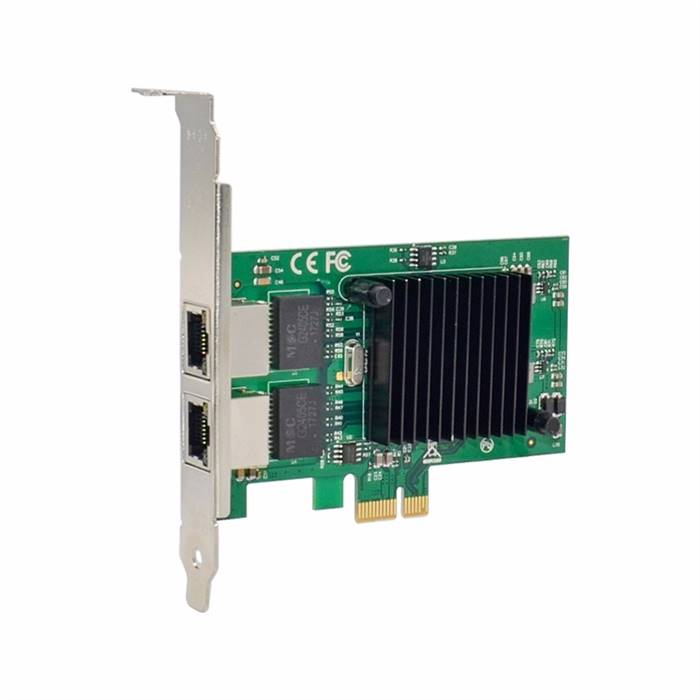

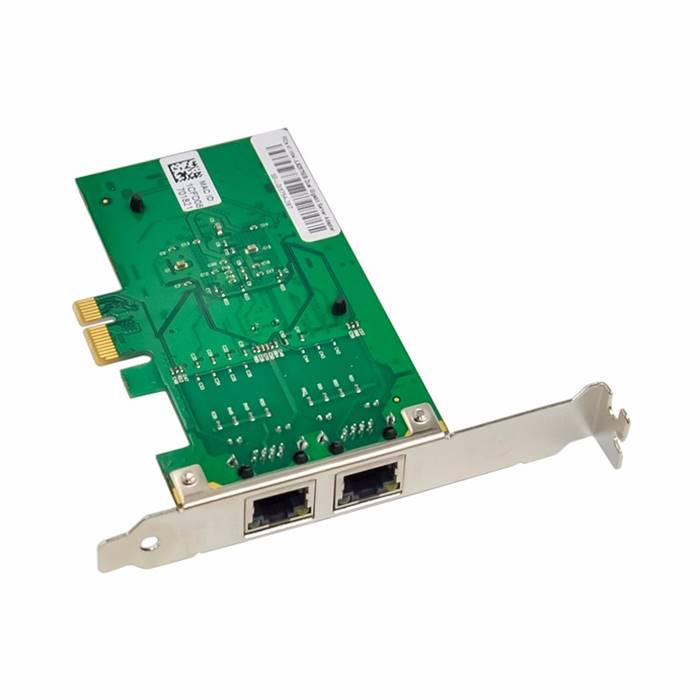

PX1-GE-2T-82575 Dual RJ45 Port Gigabit Ethernet PCI Express Network Card
is a high performance 10/100/1000BASE-T Ethernet LAN Card which
designed by Intel 82575EB Controller. It provides a low cost solution
for connecting to a high speed Local Area Network with a data transfer
rate up to 1000Mbps over a group of 4 twisted pair copper wires to a
distance of maximum 100 meters, and yet 100% fully backward compatible
with 10/100BASE-T system. Low profile and full height brackets are both
provided, suitable for all computers including Desktops, Servers and
Workstations. Features - Low-halogen1 single-port PCI-Express 10/100/1000 Ethernet adapter
- Innovative
power management features including Energy Efficient Ethernet (EEE),
DMA Coalescing, ultra-compact design, and a unique ventilated bracket
for increased efficiency and reduced power consumption
- IEEE 802.1Qav Audio-Video-Bridging (AVB) for tightly controlled media stream synchronization, buffering, and reservation
- High-performing design supporting PCI Express* Gen 2.1 (2.5GT/s)
- Reliable and proven Gigabit Ethernet technology
Specifications - Chipset Intel 82575EB
- Bus Type: PCI Express* 1.1 (2.5GT/s) x1
- Connector: 2 * RJ45 (Copper)
- Transmission Rate: 10/100/1000 Mbps
- Function: IPMI pass-through via SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering
- IEEE Standard / Network topology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- IEEE 802.3z, IEEE 802.3, IEEE 802.1Q VLANs, IEEE 802.3x, IEEE 1588, IEEE 802.3az
- System Requirements
- Windows Server 2003 / Server 2008 / R2 / Server 2012 / R2
- Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit
- DOS, Linux, FreeBSD, Novell, UnixWare / OpenUnix 8
- Applicable Fields: Desktops, Servers, Workstations
Hardware - Certifications: FCC, CE, RoHS
- Metal Bracket: Full-height and Low-profile
- LED Indicators
- Link/Activity LED: off = No Link; on = Link; Blinking = Activity
- Not illuminated = 10Mb/s; green = 100Mb/s; amber = 1 Gb/s
Environmental - Operating Temperature: 0 ~ 85 ℃
- Storage Temperature: -40 ~ 85 ℃
- Storage Humidity: 90% Non-condensing relative humidity at 35 ℃
Package Contents - 1 * PCIe Dual Gigabit RJ45 Ethernet Nic 82575EB
- 1 * User Manual
- 1 * Driver CD
- 1 * Low Profile Bracket
|
|
|
 |
|
 |
|
