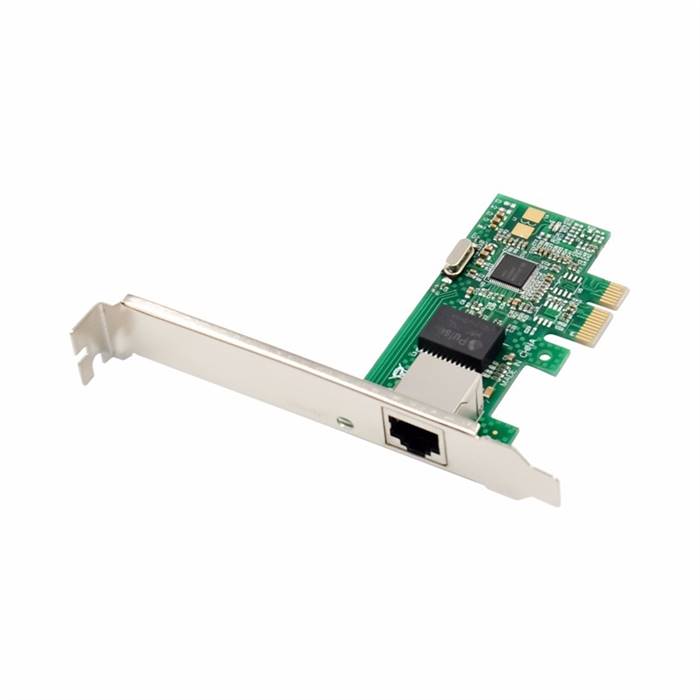

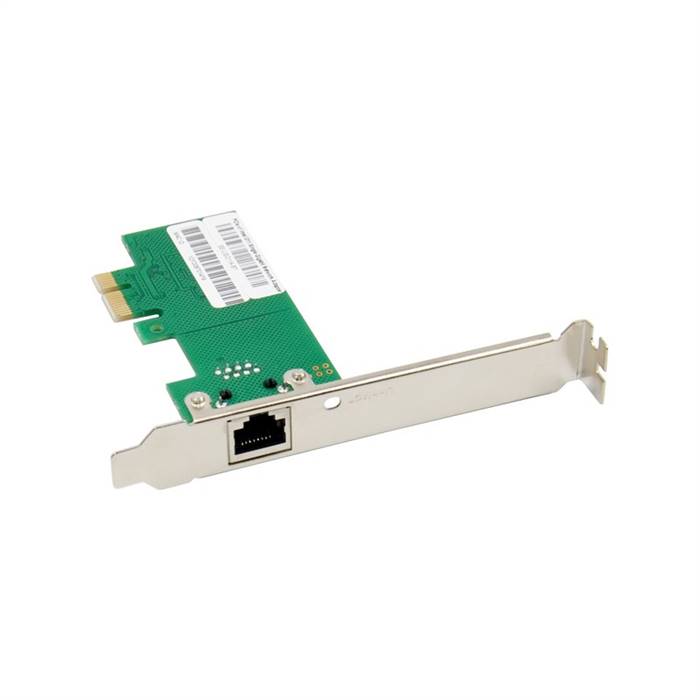

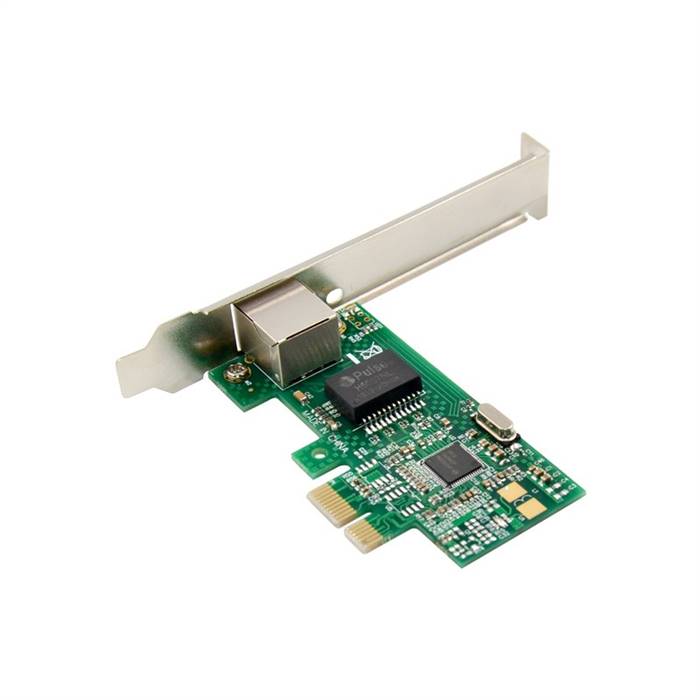

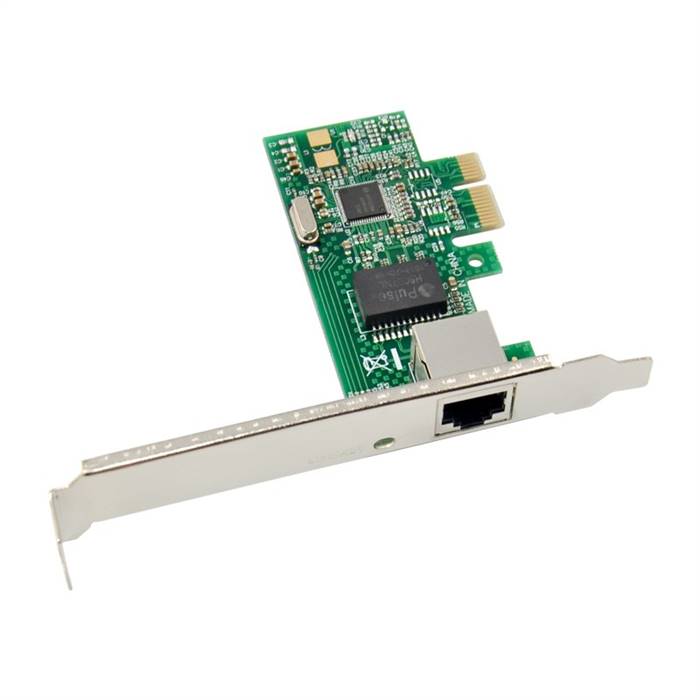

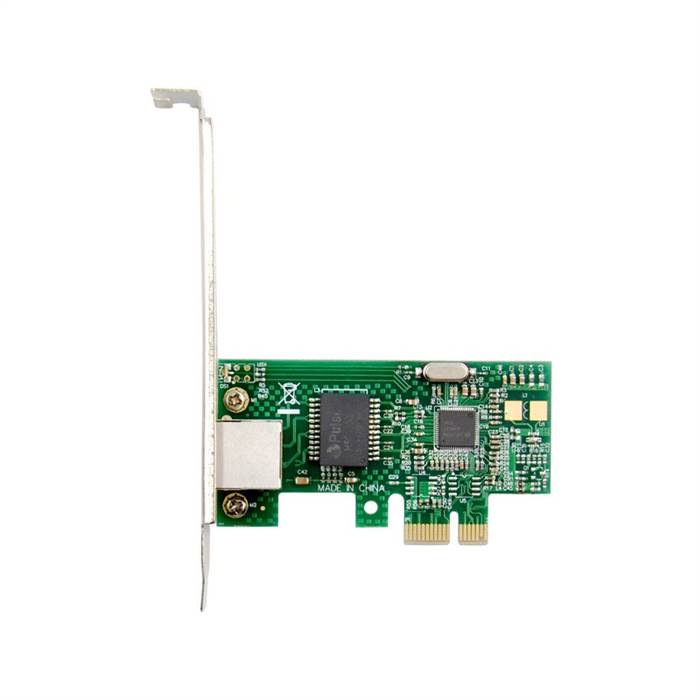

PX1-GE-1T-I211 is a PCI Express v2.1 x1 Single RJ45 Port Gigabit Ethernet Network Card. The card contains two transmit and two receive queues for the single port. It has advanced interrupt-handling, IPv4 and IPv6 checksum offload, TCP/UDP checksum offload features and the Auto-Negotiation (Nway) function, Jumbo Frame support. With single UTP/STP and the Auto-Negotiation (Nway) function support, the Card can auto-negotiate 10Mbps, 100Mbps or 1000Mbps speed, and half or full duplex mode with its link partner (a hub, for example). Full range of drivers are provided for major Operating Systems.

Features

• Single port 10/100/1000Mbps adapter
• PCI Express v2.1 x1 lane
• RJ45 Connectivity
• Low-cost, low-power
• VLAN Support
• Innovative power management features
• MSI,MSI-X support
• Excellent small packet performance for network appliances
• Low profile and full-height bracket

Specifications

• Chipset: Intel I211AT
• Bus Type: PCI Express* 2.1 (2.5GT/s), operable in x1 or greater slots
• Connector: 1 x RJ-45 (Copper)
• Transmission Rate: 10/100/1000 Mbps
• Function: IPMI pass-through via SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering
• IEEE Standard / Network topology
  • IEEE 802.3/10BASE-T, 100BASE-TX, 1000BASE-T
  • IEEE 802.3z, IEEE 802.3, IEEE 802.1Q VLANs, IEEE 802.3x, IEEE 1588, IEEE 802.3az - Energy Efficient Ethernet (EEE)
• Operating System Support
  • Windows Server2008 / 2008 R2 / 2012 /2012 R2 /2016 R2
  • Windows 7 / 8 / 8.1 / 10
  • Linux Stable Kernel version 2.6.x / 3.x / 4.x or later
  • Linux SLES 10 / 11 or later
  • VMvare ESX/ESXi 5.x/6.x or later
