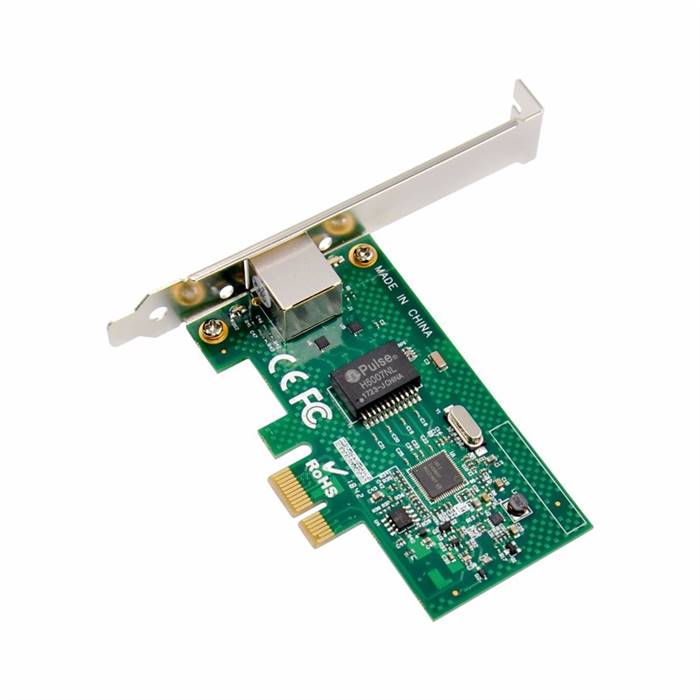

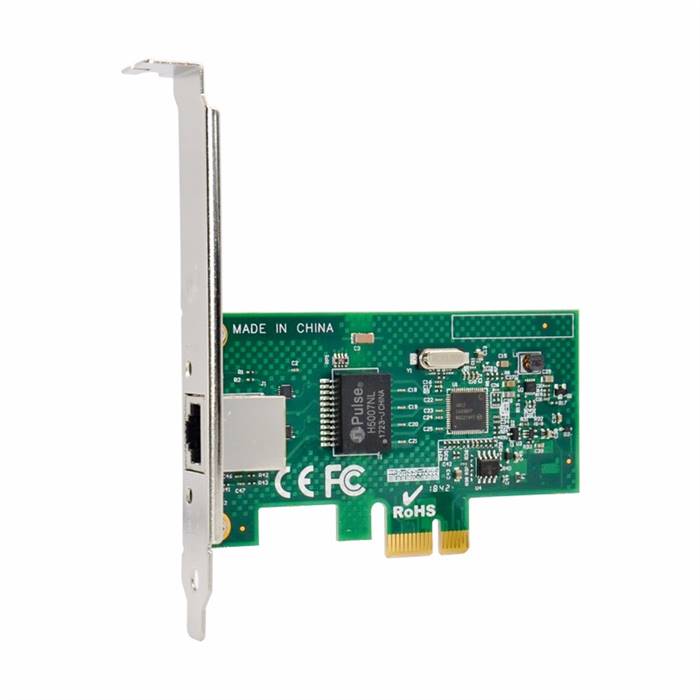

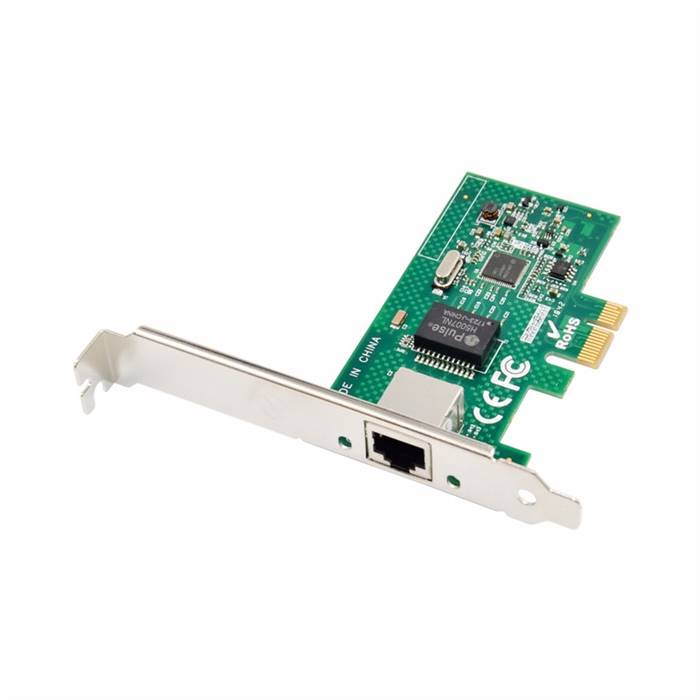

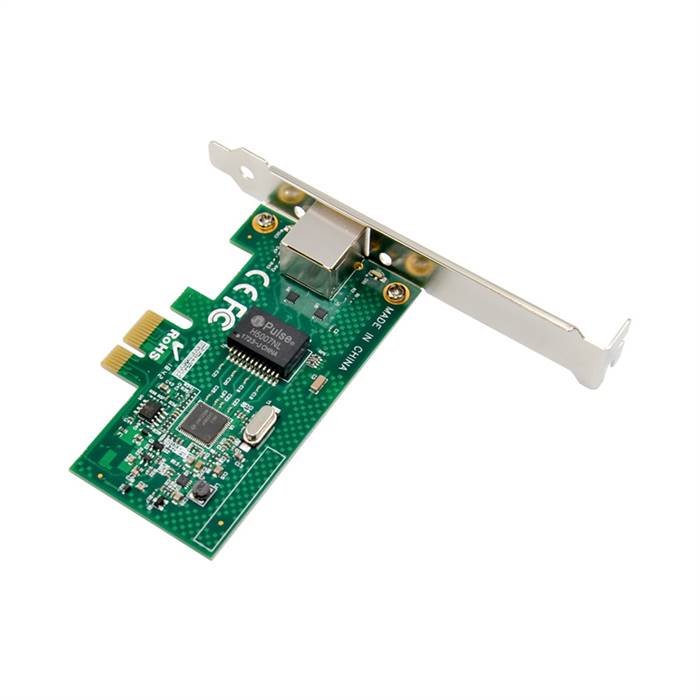

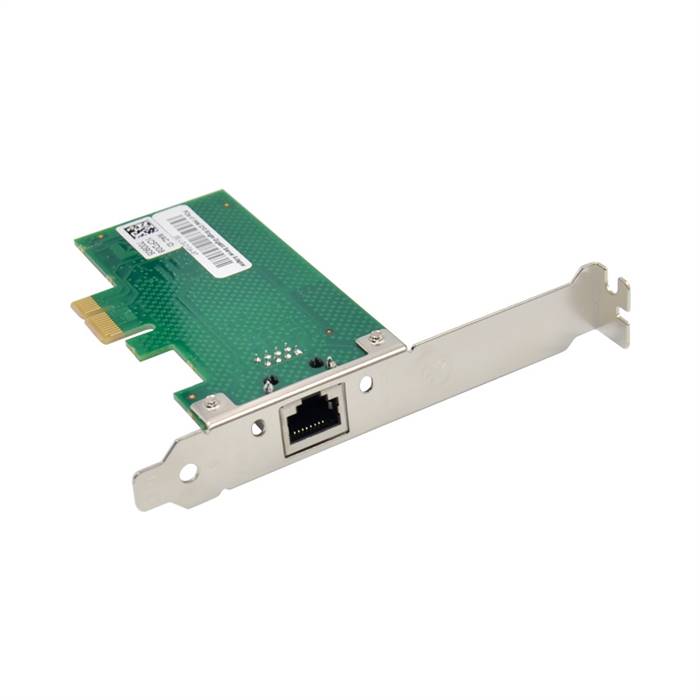

PX1-GE-1T-I210 is PCI Express x1 Gigabit Ethernet desktop network adapter based on Intel I210 solution. The Gigabit adapter adopts a compact design and does not reduce the performance of the NIC.

The adapter adopts Ethernet power management technologies such as Energy Efficient Ethernet and DMA Merge, and has 4 transmit and 4 receive queues, error correction memory protection and other technologies to improve the reliability of data transmission. Manage latency data packets efficiently by combining parallel and pipe-lined logical architectures.

The adapter has high-performance network data transmission on the machine bus architecture, compatible with Ethernet and fast Ethernet to greatly reduce customer deployment and training costs.

Features

• Single Port 10/100/1000Mbps adapter
• PCI Express (PCIe) 2.1 (2.5 GT/s) x1 lane
• RJ45 Connectivity
• Low-cost, low-power
• WOL,PXE Support
• Innovative power management features
• MSI,MSI-X support
• Excellent small packet performance for network appliances
• Low profile and full-height bracket

Specifications

• Controller: Intel I210AT
• Bus Type: PCI Express* 2.1 (2.5GT/s) x1
• Connector: 1 * RJ-45 (Copper)
• Transmission Rate: 10/100/1000Mbps
• Cabling
  • 1000BASE-T:Cat 5eor higherup to 100m
  • 100BASE-Tx:Cat5/5e/6or higherup to 100m
  • 10BASE-T: Cat3/4/5/5e/6or higherup to 100m
• Jumbo Frame Support: Up to 9.5 KB
• Operating Temperature: 0 °C to 55 °C (32 °F to 131 °F)
• Network Virtualization: PXE
• LED Indicators
• 1000Mbps/s: Yellow Link and Green Ack,
• 100Mbps/s: Green Link and Green Ack,10Mbps/s: Not illuminate
• Operating System Support
  • Windows Server2008 / 2008 R2 / 2012 /2012 R2 /2016 R2
  • Windows 7 / 8 / 8.1 / 10
  • Linux Stable Kernel version 2.6.x / 3.x / 4.x or later
  • Linux SLES 10 / 11 or later
  • VMvare ESX/ESXi 5.x/6.x or later

Package Contents

• 1 * PCIe Single Gigabit ethernet Network card I210AT
• 1 * User Manual
• 1 * Driver CD
• 1 * Low Profile Bracket
