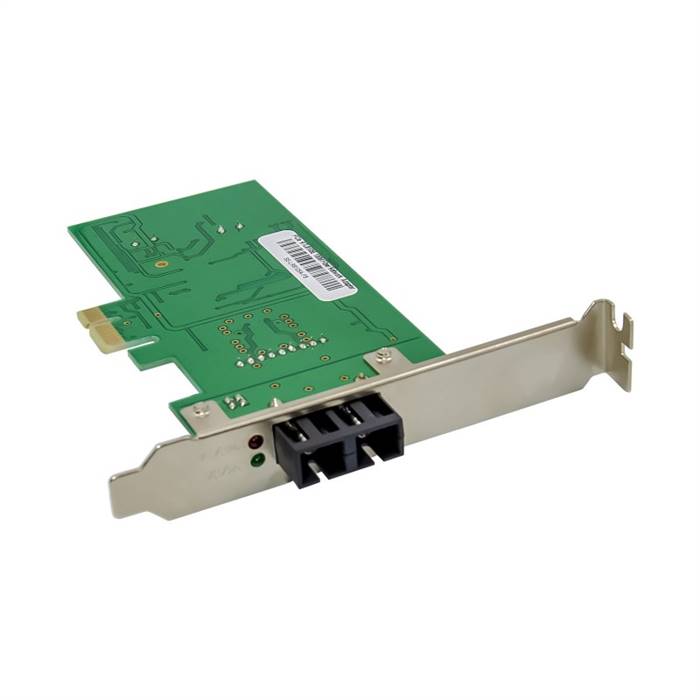

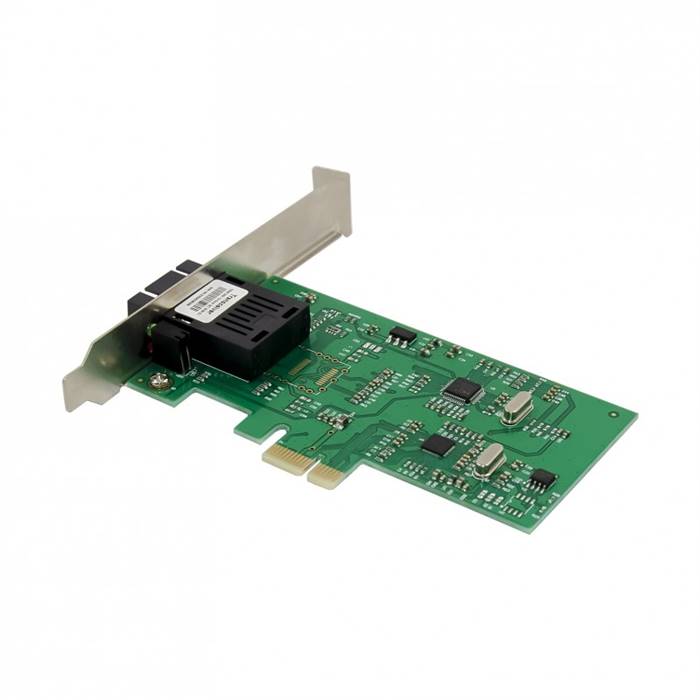

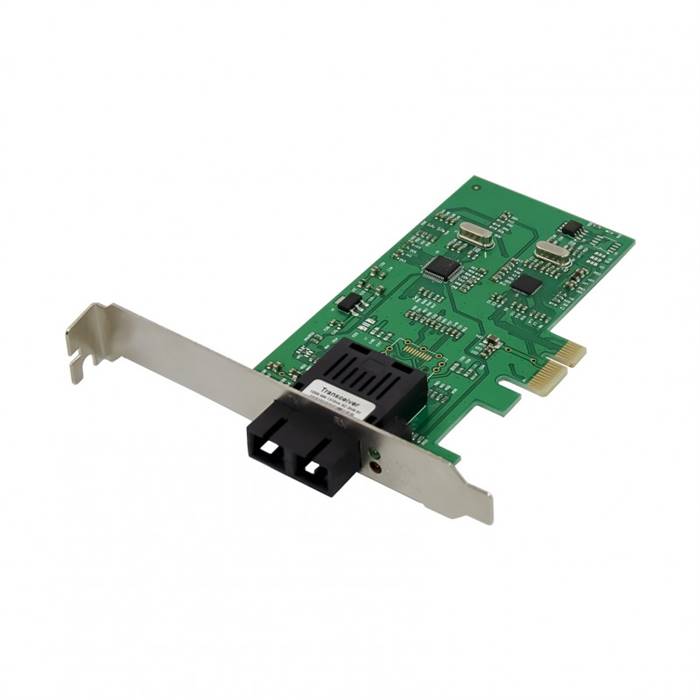

PX1-FE-1F-8105 is a Fiber Fast Ethernet to PCI-Express (PCIe) bus adapter that fully complies with all IEEE 802.3u and 100Base-FX standards. It provides up to 200Mbps full-duplex bandwidth capacity to support high-end systems. In addition, with advanced functions like VLAN filtering packet processing, the adapter provides added performance, flexible configuration and secure networking to users in a standards-based environment.

The PCI-Express (PCIe) design gives you the maximum possible bandwidth and bus efficiency, along with low power consumption.

For users equipped with PCI-Express systems, the fiber NIC provides the ability to easily build or connect to Fast Ethernet fiber networks.

Features

• PCI-Express x1 Interface
• IEEE 802.3x Full-Duplex Flow Control
• Supports Multicast Frame Filtering
• Supports Asymmetric/Symmetric Flow control
• Supports IEEE 802.1Q VLAN tagging
• IPv6 capable
• Wake-on-LAN (WoL) power management
• Microsoft certified drivers
• PXE remote boot support
• UEFI (PC platform BIOS must support)
• Message Signaled Interrupts (MSI)
• Extended Message Signaled Interrupts (MSI-X)
• TCP Segmentation Offload (large send v1 and large send v2 support)
• RoHS Compliance
• Available with SC, LC and MT-RJ multimode fiber connectors
• Standard bracket attached, low-profile bracket included
• Compliant with PCIe Rev 1.1 interface
• Supports Jumbo Frame
• Supports ASF 2.0
• ACPI Supported

Specifcations

• Chipset: Realtek RTL8105E
• Slots: PCIe 1.1
• Status LEDs
  • LINK/ACT (Link/Activity):
  • ON = communication link;
  • FLASHING = activity on link
  • FDX (Full-duplex): ON = Full-duplex link
• Software Support
  • Windows 2003, 10, NT 4.0, Windows 2008 Server,
  • Vista, Novell NetWare 5.x, 6.x, Linux
• Boot Server Support: PXE Boot ROM
• Power Consumption: 1.2 Watts (max), +3.3 VDC @ 0.7A
• Environment
  • Operating: 0°C to 50°C
  • Storage: -15°C to 65°C
  • Humidity: 5% to 95% (non-condensing)
  • Altitude: 0 – 10,000 ft.
