PCIe x1 XR17V358 8-port RS232 serial adapter cards are the high performance RS232 serial interface controller for home and industrial users. They are compatible with industrial standard 16C550 UART, which provide a low cost connection platform for industrial machines, POS machines, external Modems, mice, etc.

Features

• PCI Express 2.0 x1 compliant
• PCIe 1 Lane compliant
• 16C550 compatibility
• 256 byte receive FIFO buffer
• 256 byte transmit FIFO buffer for high speed data throughput
• Automatic RTS/CTS or DTR/DSR hardware flow control with programmable hysteresis
• Automatic Xon/Xoff software flow control
• Drivers provided for Windows and Linux O.S
• Wide ambient temperature operation 0°C to 60°C (32°F to 140°F)
• CE, FCC approval
• Supports eight high speed RS-232 serial ports with data transfer rate up to 912.6 Kbps
• Provides 15KV ESD protection for all serial signals
• Provides eight DB-9 male connectors
• RS-232 data signals: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS

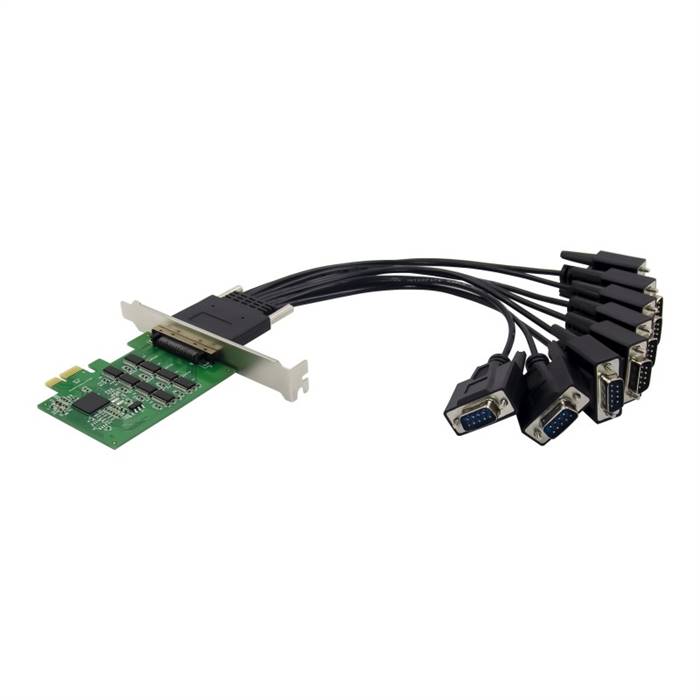

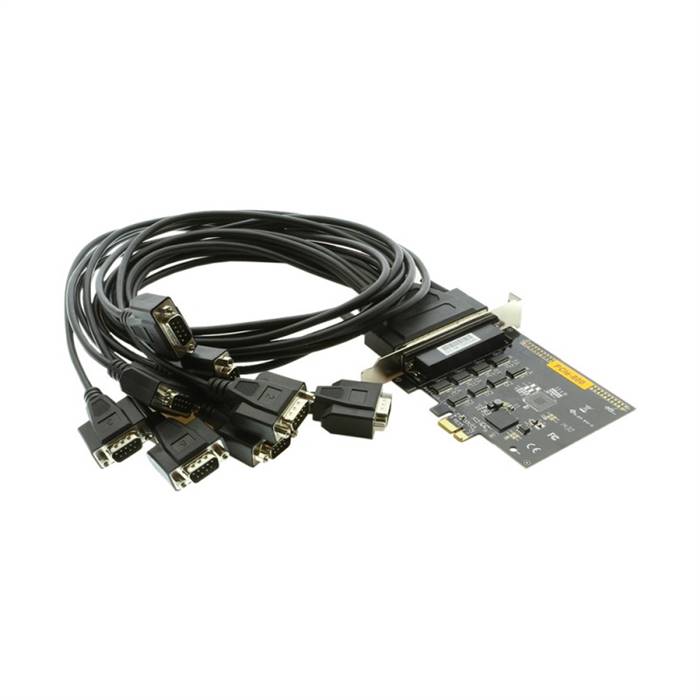

• Includes one octopus cable with one DB-62 male connector to eight DB-9 male connectors cable

Specifications

• Chipset: Exar XR17V358
• Bus type: PCI Express 2.0 x1
• Port type: 8 x 9-pin RS-232 serial ports (via fan-out cable)
• Compliant with PCI Express Base Specification, Revision 2.0
• FIFO: 256 byte
• UART: 16C550
• Max Baud Rate: 921.6 Kbps
• OS Compatibility
  • Windows® CE 5.0, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2016, 2019
  • Linux 2.4.18 to 4.16.x LTS Versions only
• Environmental conditions:
  • Operating temperature: 32° to 122° F (0° to 50° C)
  • Operating humidty: 20% to 80% RH
  • Storage temperature: -4° to 140° F (-20° to 60° C)
  • Storage humidity: 10% to 90% RH
• Certifications/Standards: FCC, CE, RoHS

Package Contents

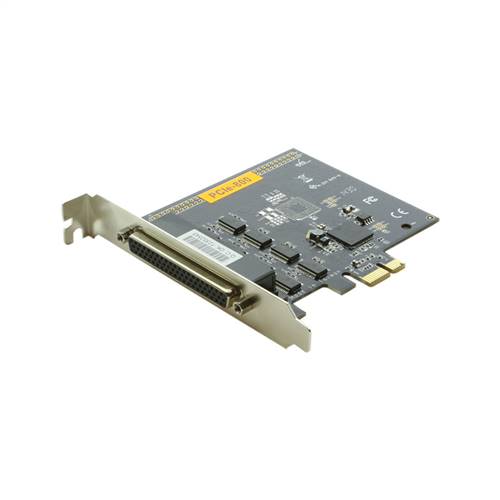

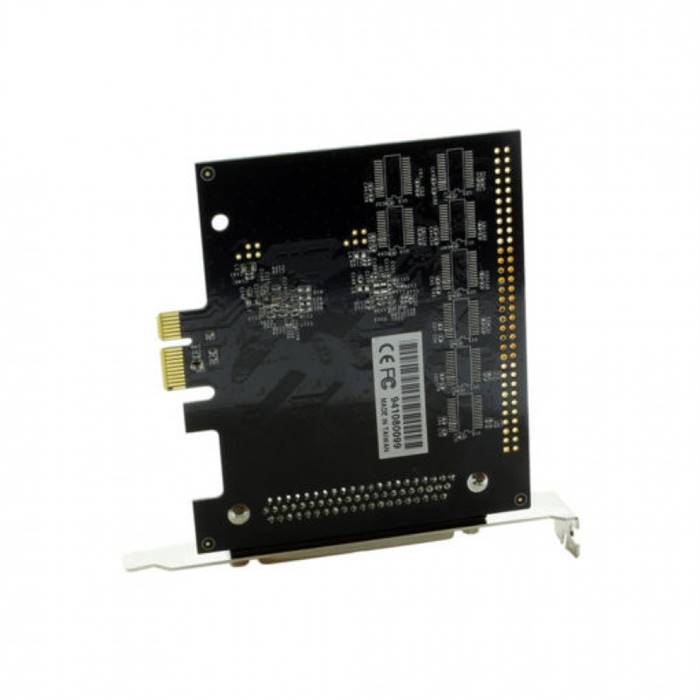

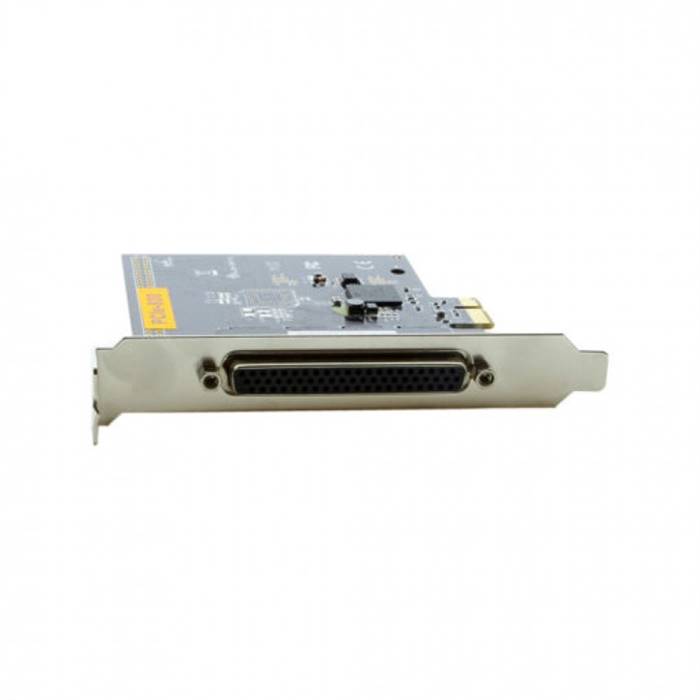

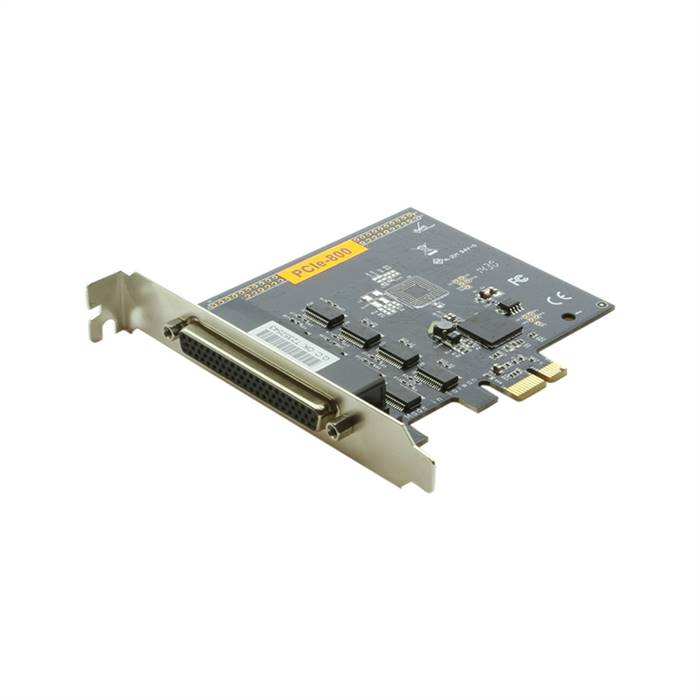

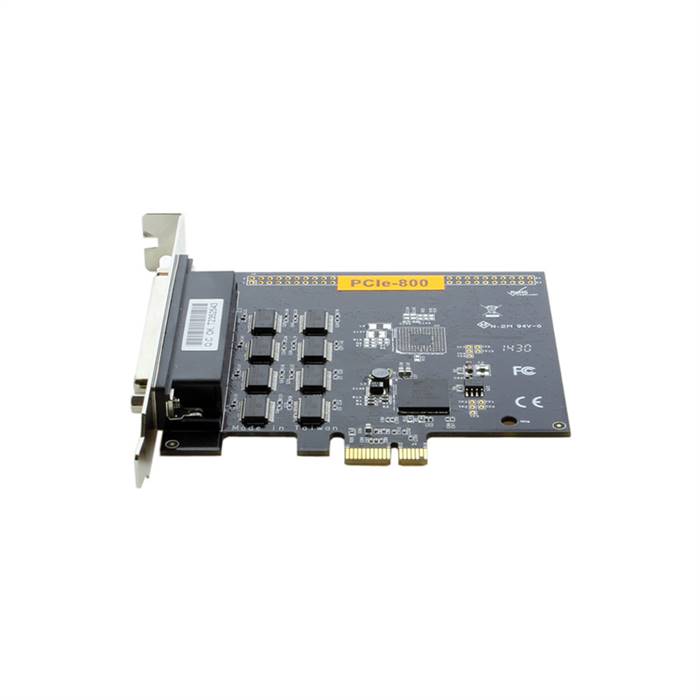

• PCIe x1 XR17V358 8-port RS232 Serial Adapter Card

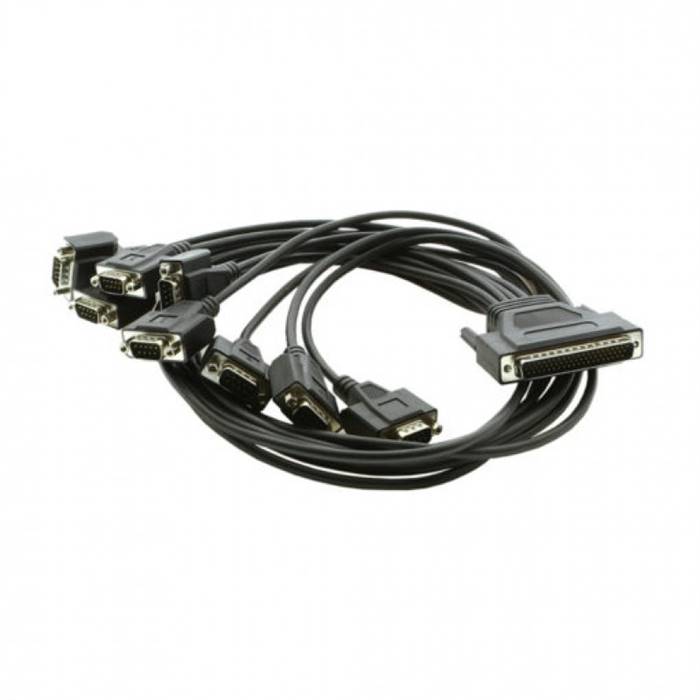

• DB62 to 8 Port DB9 Breakout Cable
• Low Profile Bracket
• Quick Start Guide
