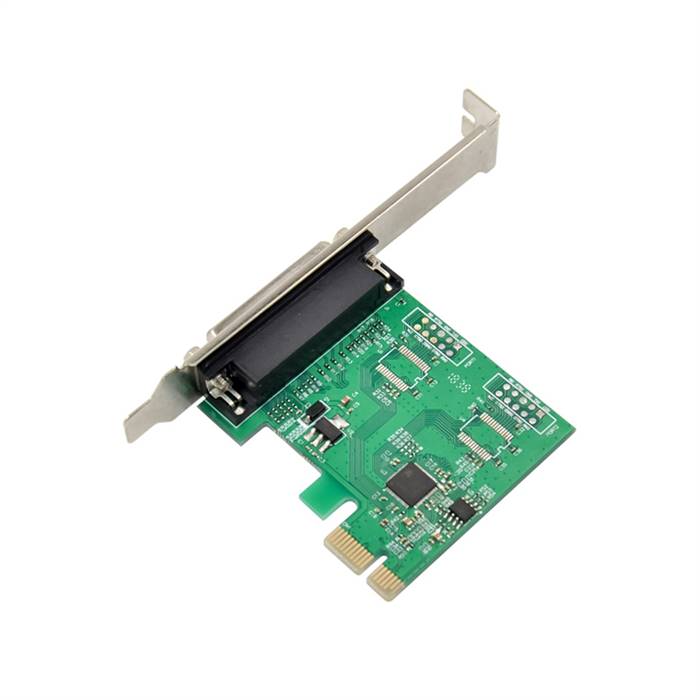

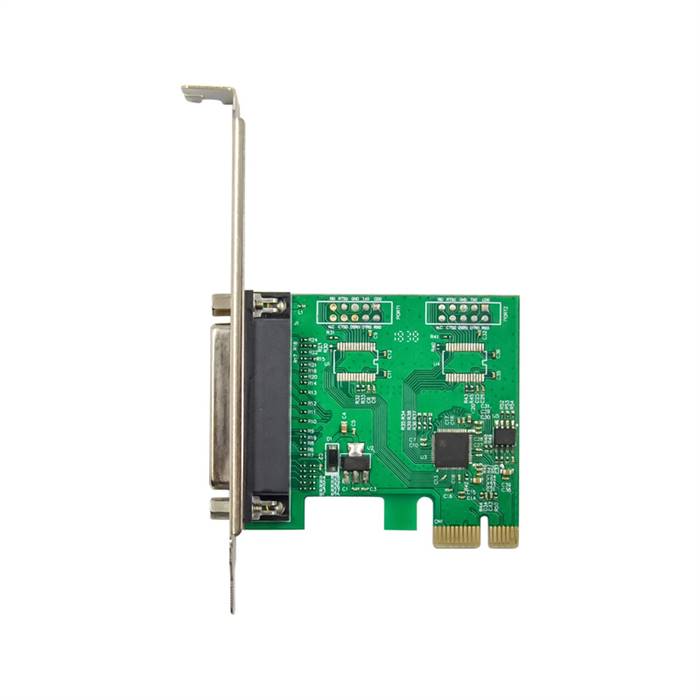

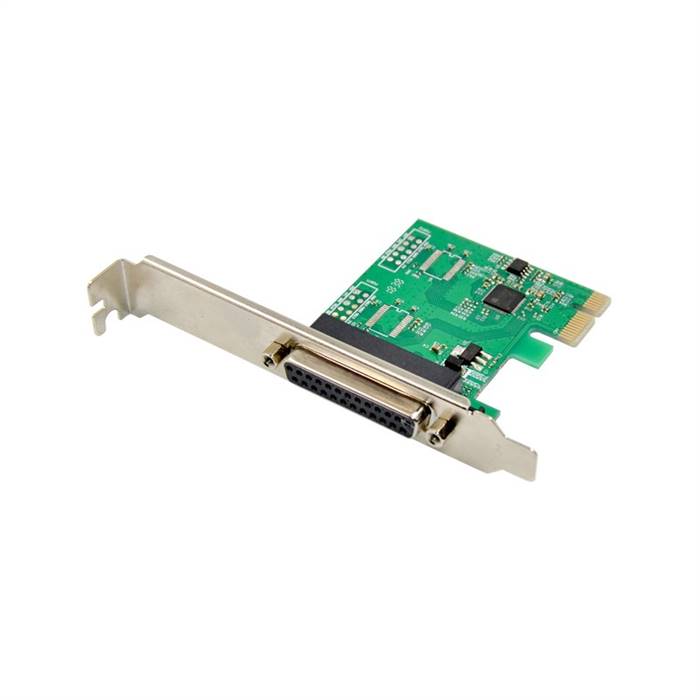

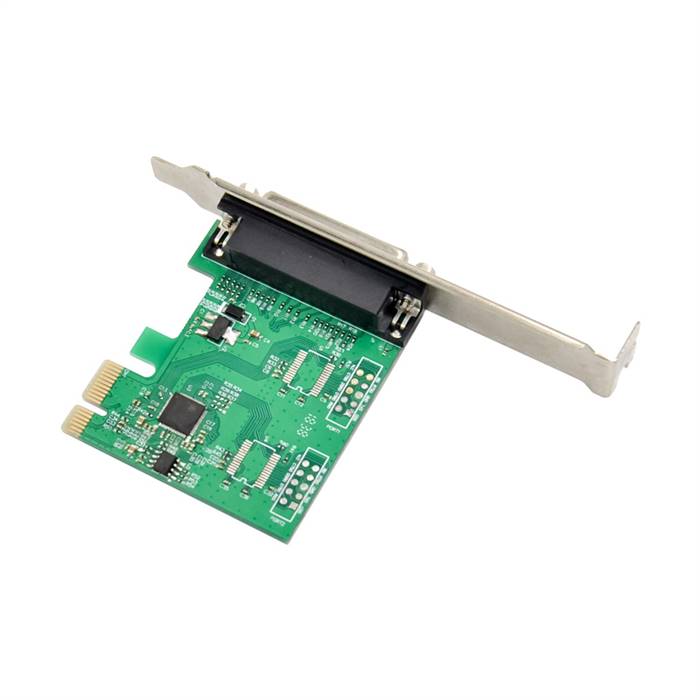

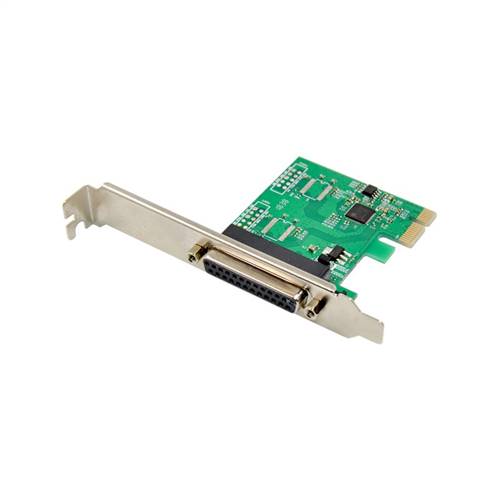

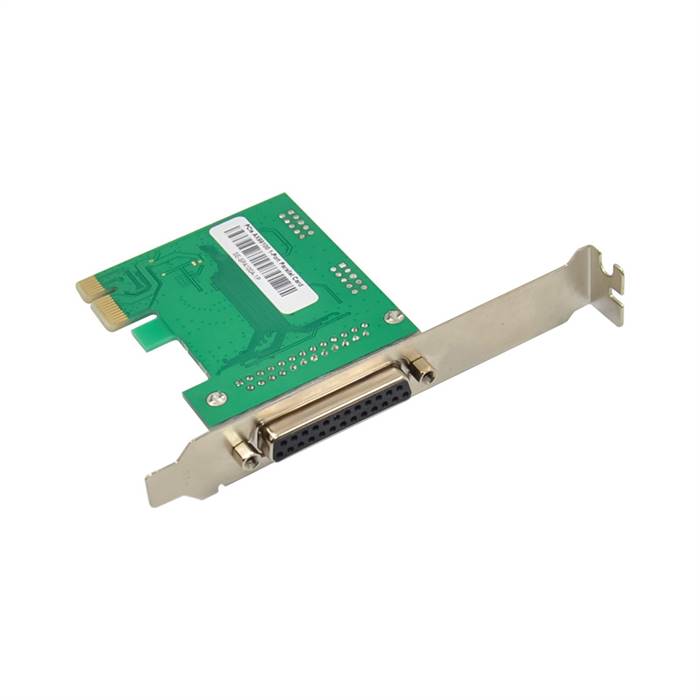

The PX1-1P-9100 PCIe Parallel Adapter card can be installed in a PCI Express (PCIe) slot, allowing you to connect EPP/ECP parallel peripherals to any computer system. Relying on a native single-chip design(WCH CH382L), this adapter harnesses the true capability of PCI Express - ensuring maximum performance and reliability.

This high performance SPP/EPP/ECP parallel card adds one DB25 parallel port, perfect for connecting printers, scanners, CD-R/RW drives, memory card readers, bar code scanners and more. With the added convenience of plug and play capability, installing the parallel adapter card is hassle-free!

Features

• Easily add one high-speed parallel port (25-pin) to your PCI Express desktop system
• Compliant with PCI Express 2.0 Gen 1
• Single-lane (X1) PCI Express End-point Controller with PHY integrated
• Compliant with PCI Power Management 1.2
• Supports both legacy and MSI Interrupts
• Supports ASPM Power Management
• Compatible with IEEE 1284-SPP/Byte/ECP Mode

Specifications

• Chipset: ASIX99100
• Bus connector: PCI Express x1
• Version: PCI Express 2.0
• Connectors: 1 x 25-pin Parallel Port, Female
• FIFO: 128 byte
• Data transfer rate: Up to 1.5 Mbps
• Function
• IEEE1284, SPP/EPP/ECP compliant Parallel port
• Automatically selects IRQ and I/O address
• OS Compatibility
• Windows® CE 6.0 / 5.0, 95, 98SE, 2000, XP, XP Embedded, Vista, 7, 8, 8.1, 10
• Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
• Linux 2.4.x to 4.11.x LTS Versions only
• Environmental conditions:
• Operating temperature: 32 to 140 degrees F
• Storage temperature: 14 to 158 degrees F
• Relative humidity: 5% to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS

Package Contents

• PCI Express AX99100 Parallel Card
• Low Profile Bracket
• Driver CD
• Instruction Manual
