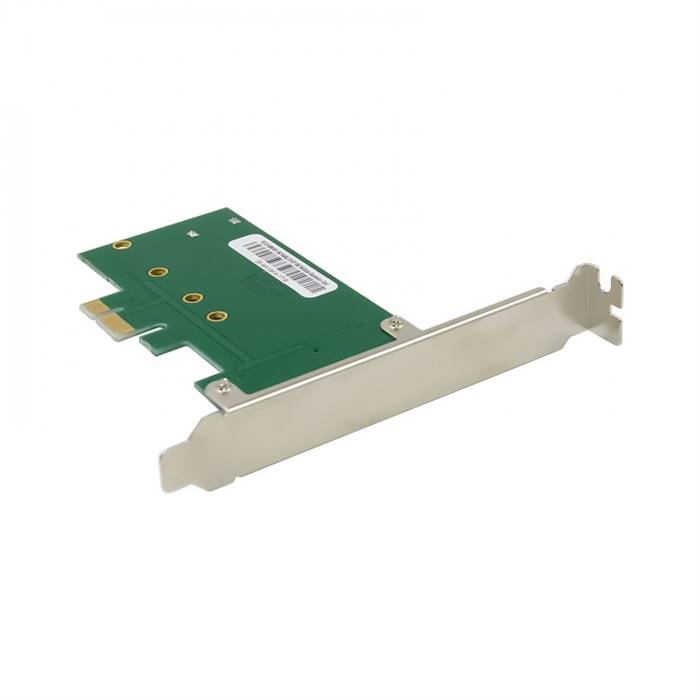

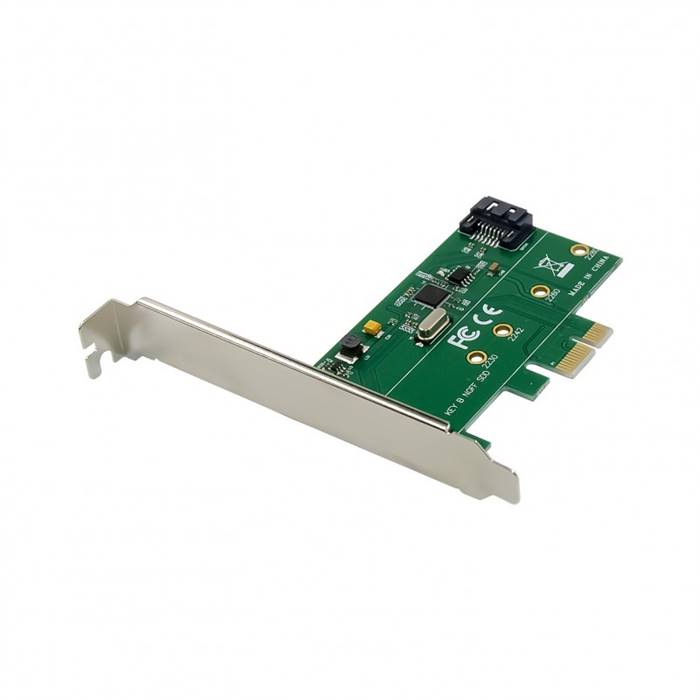

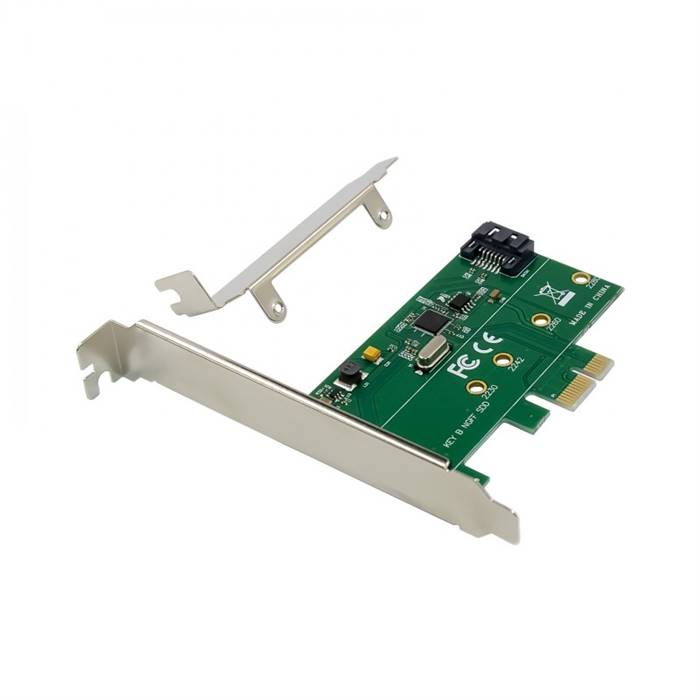

The PX1-1M2B-1S PCIe 3.0 x1 1-port M.2 B-key & 1-port SATA III Expansion Card enables one SATA III slot and one M.2 B-key slot to a computer through a PCI-Express x1 slot. It takes the advantage of the rapid respond of a solid state drive (SSD) and the spacious capacity of a hard disk drive (HDD), to form an ultimate total solution for a high performance, cost effective and large storage system.

Features

• Built with ASM1061 Chipset
• PCIe X1 to M.2 NGFF + SATA III Port
• Simultaneously Connect M.2 SSD and SATA HDD or CD Drive, Maximum 6Gbps
• Support B key & B+M Key M.2 SATA SSD
• Support M.2 card size: 22*30 22*42 22*60 22*80
• Does not support NVMe M.2 SSD
• M. 2 Specification Revision 0.9
• Serial ATA Specification Revision 3.2
• Compatible with SATA I, II, III

Specifications

• Chipset: Asmedia ASM1061
• Bus Type: PCIe-X1, support PCIE X2, X4, X8, X16
• Connector:
  • 1 * M. 2 B-Key slot
  • 1 * SATA III slot
• Operation System: Windows10/8/7(32/64)/Vista(32/64)/XP/2003/2008/linux

Note: M. 2 slot supports M. 2 (NGFF) SATA SSD only, DOES NOT support NVMe M. 2 SSD. The efficiency mainly depends on M. 2 (NGFF) SSD master IC and the size of the capacity
