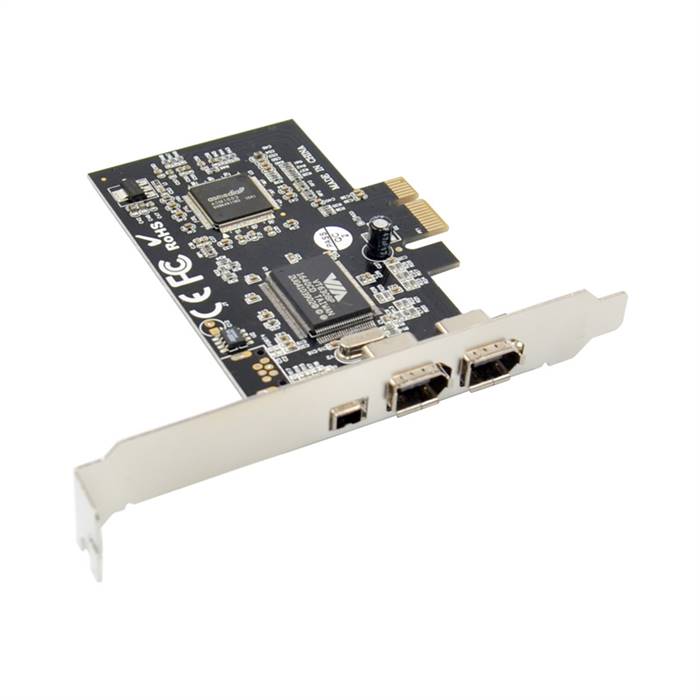

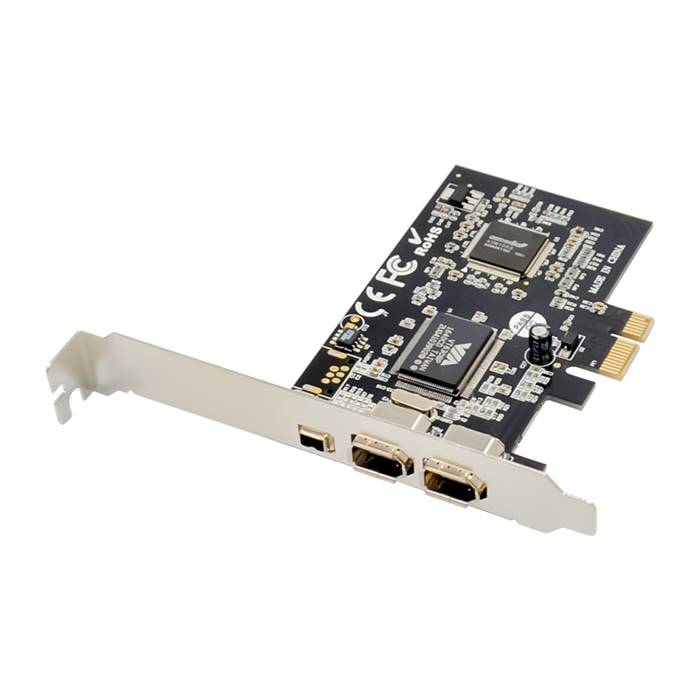

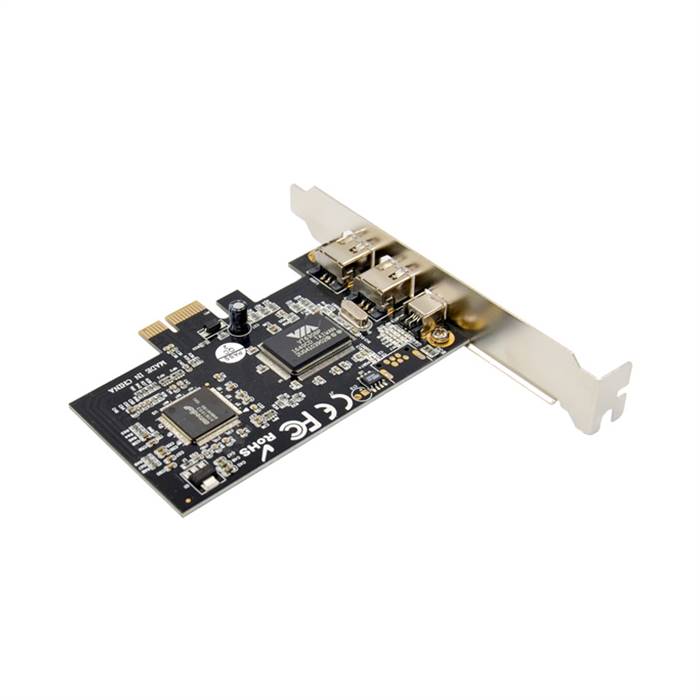

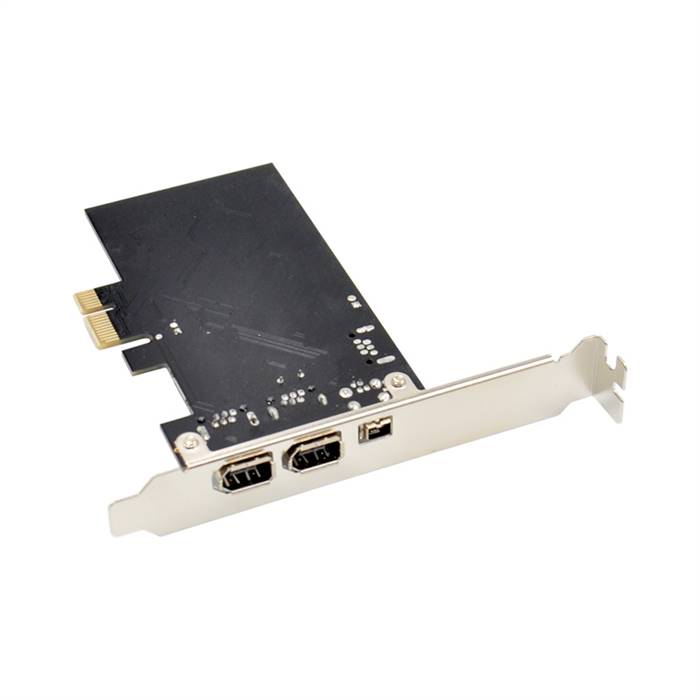

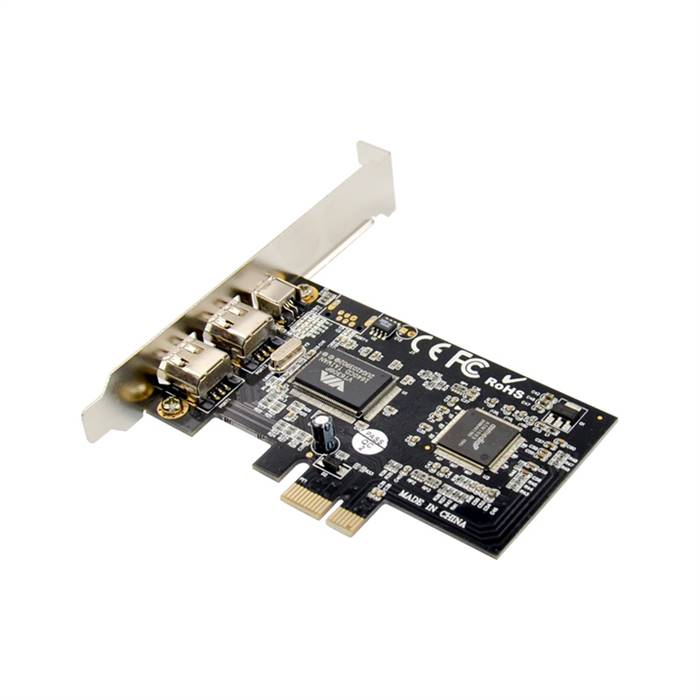

The PCIe x1 3-port 1394A FireWire 400 Adapter Card expands your PC by three external FireWire 400 ports. You can connect devices like external enclosure, digital cameras, camcorder, adapter, etc. to your desktop computer. The FireWire adapter card supports hot-swapping, so you’ll be able to plug, unplug, and swap your FireWire peripherals with ease.

Features

• PCI Express x1 rate 2.5Gb/s full duplex channel, 1.0a specification
• Compatible IEEE 1394 OpenHCI Specification Version 1.0 and v1.1
• Compatible IEEE 1394 ~ 1995 High Performance Serial Bus
• Compatible with IEEE 1394 - 2000 standard
• Supports OHCI specifications V1.0 and 1.1
• 3 x external FireWire 1394A specification
• Data transfer rate up to 400 Mbps
• No drive required, Hot Plug, Plug & Play
• For Windows 2000/XP/Vista/Win7-64/Server 2003, Linux Kernel 2.6
• For tape DV/HDV, up to 1080i small HD video, compatible with all PCIe standard slots.

Specifications

• Chipset: VT6308P + ASM1083
• Bus interface: PCI Express x1 1.0a 2.5Gb/s ,
• Interface
  • 2 x 1394a 6-Pin
  • 1 x mini 1394a 4-Pin
• Transfer rate: up to 400Mb/s
• Functions: No drive required, Hot Plug, Plug & Play
• OS Compatibility: Windows 2000/XP/Win 7/Server 2003, Linux Kernel 2.6

Package Contents

• PCI FireWire Card
• Low Profile Bracket
• Instruction Manual
