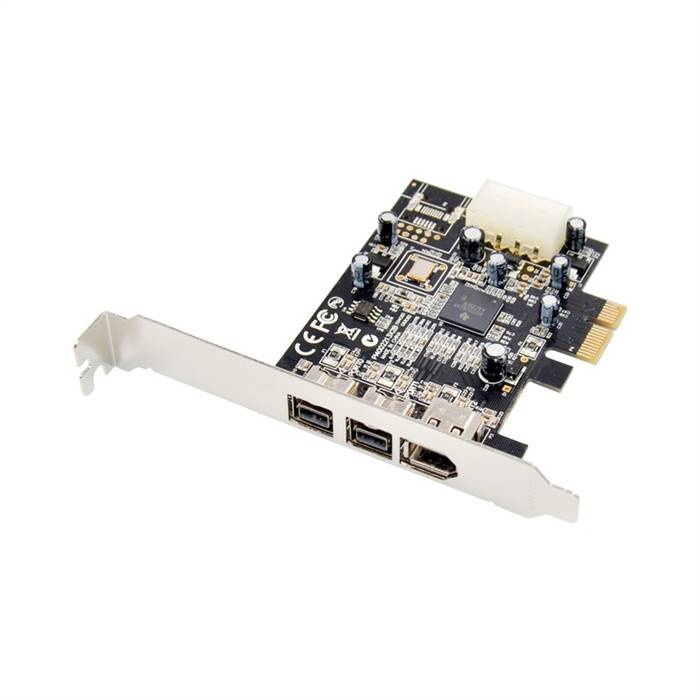

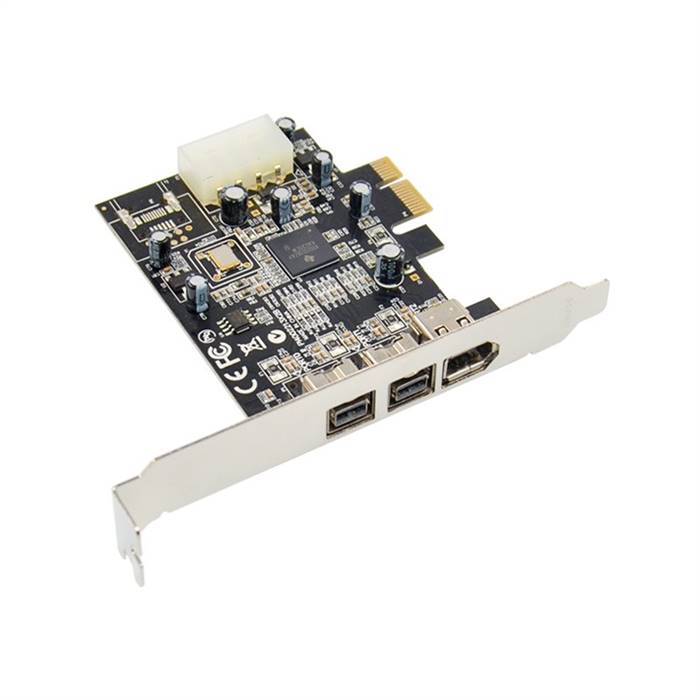

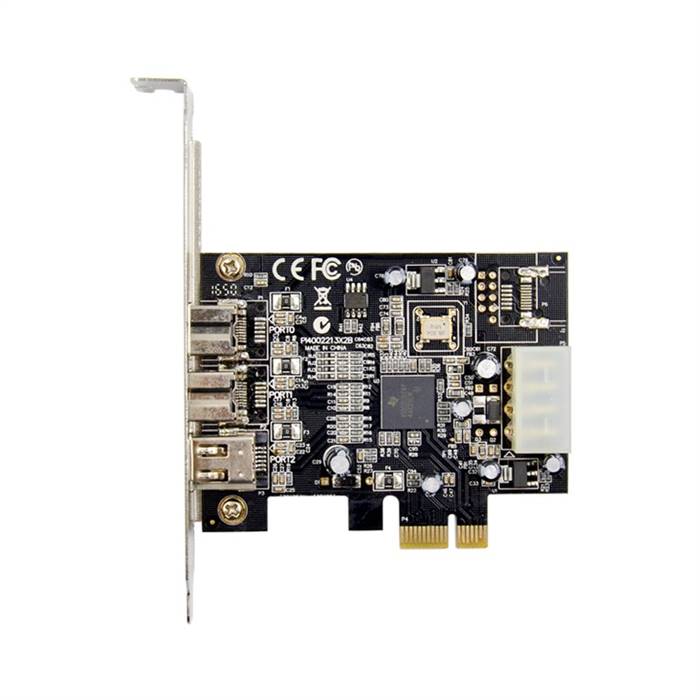

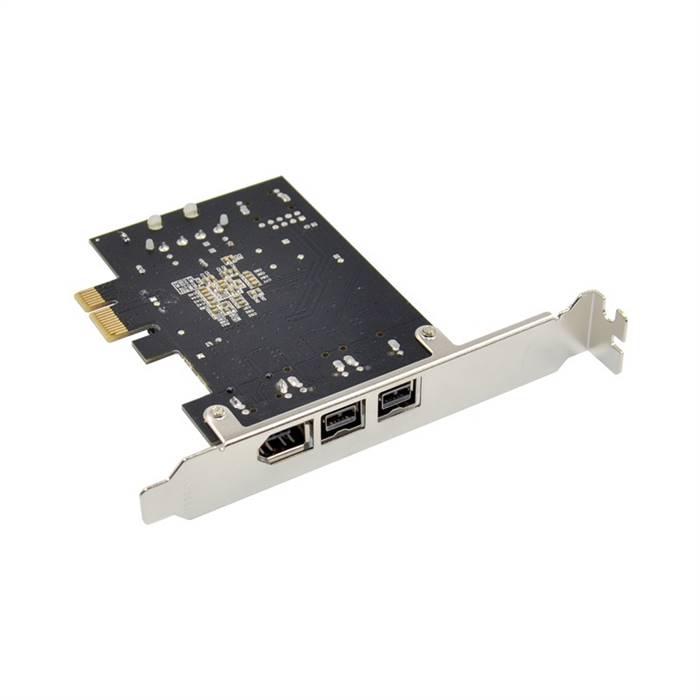

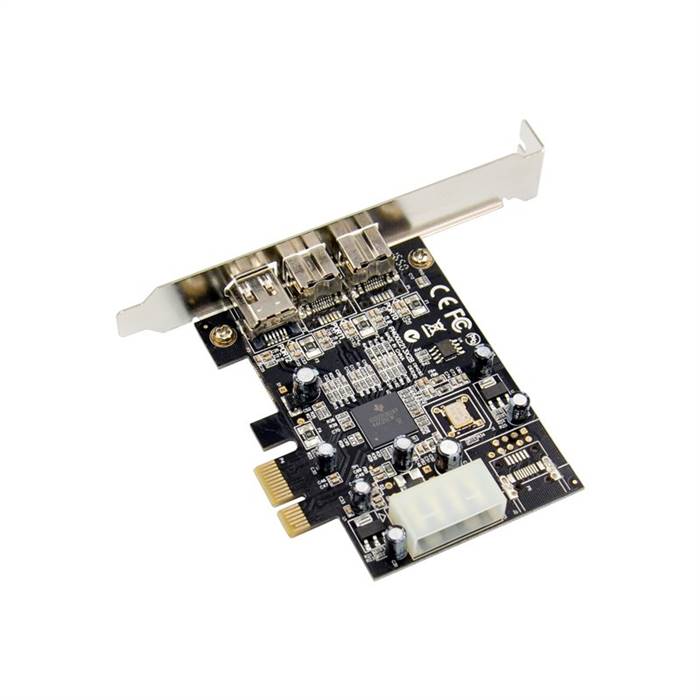

This 3 Port PCI Express FireWire adapter card can be installed in a PCI Express slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).

Features

• Provides two FireWire 800 (1394b) ports and one 1394a (6-pin) port for multiple 1394b/1394a devices connections
• Supports data transfer rates of 100, 200, 400 and 800 Mbps
• Built-in 4-pin power connector provides extra power when connected to the system's power supply (recommended)
• Supports hot-swapping and Plug-n-Play connection of peripheral devices
• Works with various types of FireWire 800 (1394b) and 1394a devices including portable hard disk, DV camcorder, digital camera, CD-RW/DVD-ROM drive and other audio/video devices

Specifications

• Chipset: TI XIO2213AZAY
• Bus interface: PCI Express x1
• Compliant with PCI Express Base Specification Revision 1.0a
• Connectors
  • 2 x External FireWire 800 (9 pin, IEEE 1394b)
  • 1 x External FireWire 400 (6 pin, IEEE 1394a)
  • 1 x Internal LP4 (4 pin; Large Drive Power)
• Transfer rate: up to 800 Mbps
• Functions
  • Built-in 4-pin power connector provides extra power when connected to the system's power supply (recommended)
  • Hot-swapping and Plug-n-Play connection of peripheral devices
• OS Compatibility
  • Windows® 2000, XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2016, 2019
  • macOS 10.6 to 10.15, 11.0
  • Linux 3.5.x to 4.4.x LTS Versions Only
• Environmental conditions:
  • Operating temperature: 32 to 122 F (0 to 50 C)
  • Operating humidity: 10% to 90% RH
  • Storage temperature: -4 to 140 F (0 to 60 C)
  • Storage humidity: 10% to 90% RH
• Certifications/Standards: FCC, CE, RoHS

Package Contents

• PCIe x1 3-port 2b 1a 1394 FireWire Card
• Low-profile bracket
• Installation Guide
