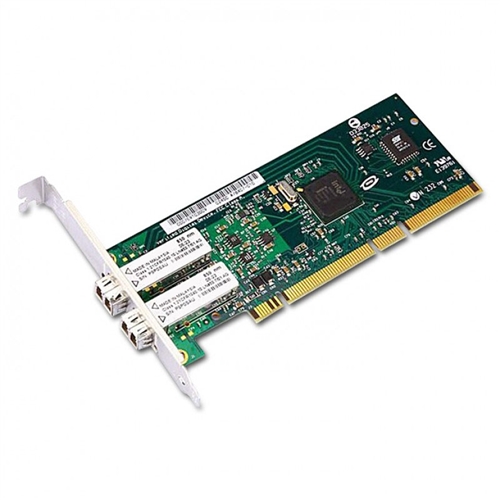

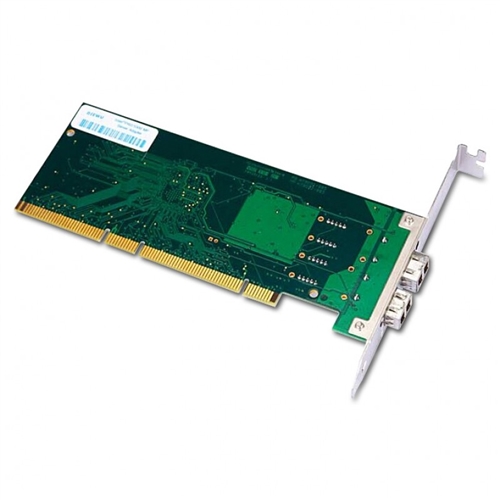

Intel PRO/1000 MF Dual Port Server Adapter (SX Fiber), 2xLC, 1000Full, PCI-X, 82546.
Conserve valuable PCI slot space in servers, alleviate bottlenecks,
and increase uptime with Gigabit performance for servers in multi-mode
fiber-optic networks. The Intel PRO/1000 MF Dual Port Server Adapter
PWLA8492MF, with a self configuring PCI/PCI-X interface, delivers high
throughput while conserving CPU resources. Enhance server performance
further by teaming these two connections together or with other Intel
PRO Server Adapters using Intel's advanced server feature software to
achieve multi-Gigabit scalability and redundant failover capability. A
compact form factor and swappable low-profile bracket allow this dual
port Gigabit adapter to fit in even high-density, rack mounted 1U and 2U
servers.
Features
- Support for most NOSs
- Intel SingleDriver technology
- Remote Management Support (WfM, RIS, SNMP/DMI)
- Intel 82546 Gigabit Controller
- Full-height and low-profile, screw-on brackets included with each adapter
- Interrupt Moderation
- Large Send Off-load/TCP Segmentation Off-load
- Expanded Advanced Server Features
- Two LC Connectors
- 1000GBASE-SX Multi-mode Fiber
Specifications
- Product Name: Intel PRO/1000 MF Dual Port Server Adapter (SX Fiber)
- Product Code: PWLA8492MF
- Connectors: Two LC
- IEEE standards/network topology: 1000BASE-SX
- Wiring: MMF
- Cable Distance: 550m at 50um, 275m at 62.5um
- Data rate(s) supported per port: 1000 Mbps
- Bus type: PCI/PCI-X
- Bus width: 32 or 64 bit
- Bus speed (MHz): 33/66/100/133
- Onboard Memory: 128 KB
- Interrupt levels: INTA
- IEEE support: 802.3z
- Hardware certifications: FCC Class A, CE
- Data Transfer Mode: Bus-master DMA
- Controller-processor: Intel 82545
- Typical power consumption: 1A at +5V DC
- Operating temperature: 32 °F (0.0 °C) to 131 °F (55.0 °C) Operating
- Operating Humidity: 85% at +55° C
- Physical Dimensions: 2.5" Height x 6.6" Width
NOS SOFTWARE SUPPORT
- Microsoft Windows 2000, XP
- Microsoft Windows NT 4.0
- Novell Netware 4.11, 4.2, 5.0, 5.1, 6.0
- SunSoft Solaris 7, 8
- UnixWare 7.x, OpenUNIX 8 (ddi8)
- Linux 2.2.4 or Better
- FreeBSD v4.0 (latest kernel)
|
|
This PWLA8492MF is 100% genuine Intel product.
It won't have any compatibility problem with your Intel devices.
And the Intel PRO/1000 MF Dual Port Server Adapter (SX Fiber), 2xLC,
1000Full, PCI-X, 82546 is factory new with original packaging.
Buy it now and enjoy risk free purchase with fast worldwide delivery
from Compufox.com
|
|
|
|
 |
|
 |
|
