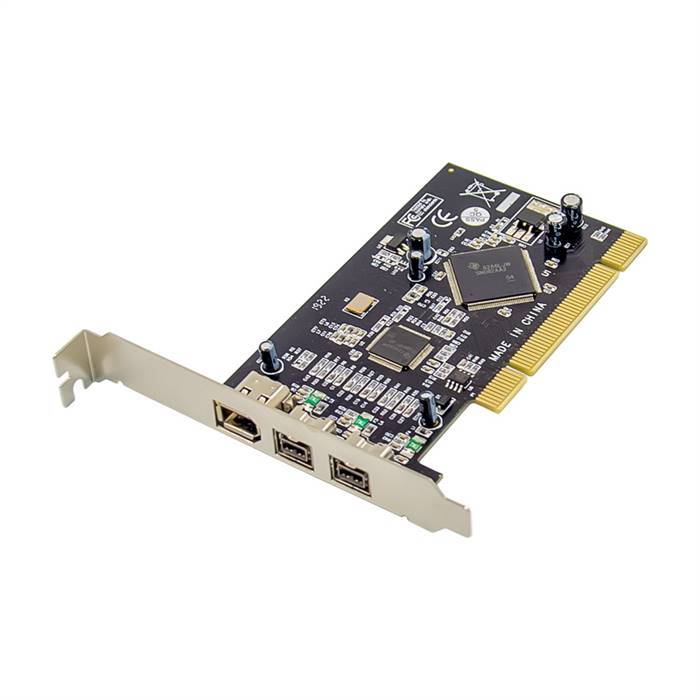

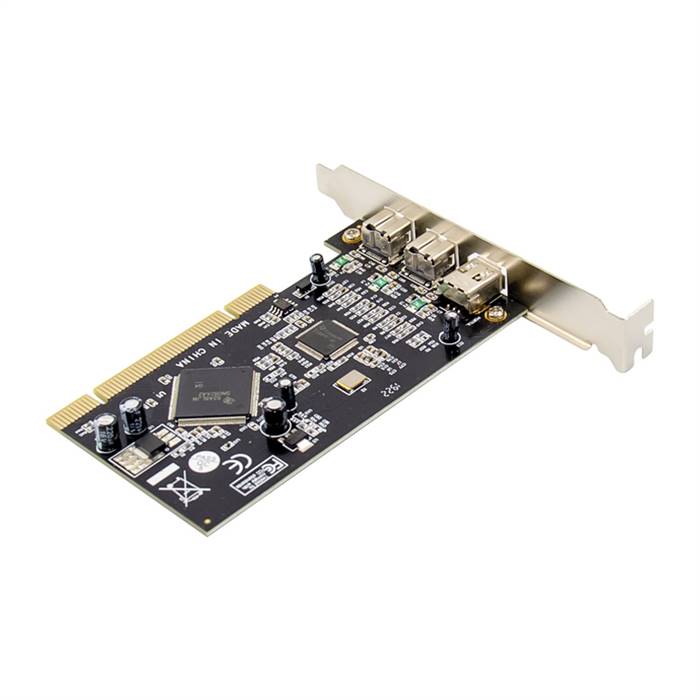

The PCI 3-port 2b 2a 1394 FireWire Card turns a PCI slot into 2 FireWire 800 (IEEE 1394b) ports and 1 FireWire 400 (IEEE 1394a) port - a cost-effective solution that lets you connect FireWire 800 devices, as well as older FireWire 400 devices to your desktop computer.

A versatile FireWire solution, the adapter card works in both 5v and 3.3v PCI slots and in 64-bit and 32-bit operating environments, making it easy to create a high-speed laptop digital media center, or connect demanding FireWire peripheral devices such as portable hard drives, DV camcorders, digital cameras and CD-RW/DVD-RW drives.

This high quality adapter card is designed to provide reliable FireWire 800 and FireWire 400 connections, delivering 800 Mbps and 400 Mbps data transfer rates respectively (a 64-bit PCI slot is required to achieve 800 Mbps data transfer rates).

Features

• Support Provisions of IEEE P1394b Revision 1.33+
• Compliant with PCI Revision 1.0a
• Compliant with IEEE 1394 OpenHCI Specifications v1.0 and v1.1
• Compliant with IEEE 1394-1995 for a High Performance Serial Bus
• Compliant with IEEE 1394a-2000 Standard
• Fully Backward Compatible to 1394a Specification
• Fully Interoperable with FireWire, i-Link, and SB1394 Implementation of IEEE 1394 Standard
• Simultaneous Operation of Multiple High-performance Devices
• Supports Hot-swapping and Plug-n-Play Connection of Peripheral Devices
• Works with Various Types of FireWire 800 (1394b) and 1394a Devices Including Portable Hard Disk, DV Camcorder, CD-RW/DVD-ROM Drive and Other Audio/Video Devices

Specifications

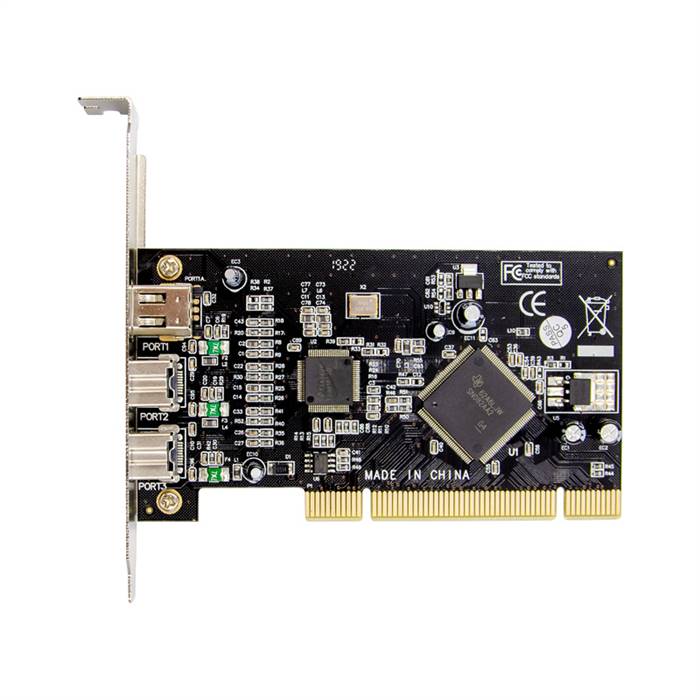

• Chipset: TI TSB81BA3+SN082AA2
• Bus interface: PCI Rev 2.2
• Standard: IEEE 1394a-2000, IEEE 1394b-2002

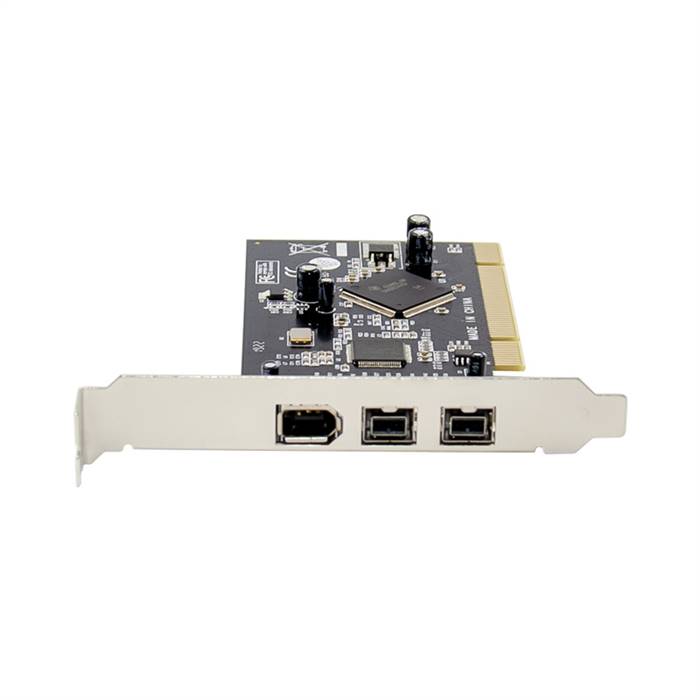

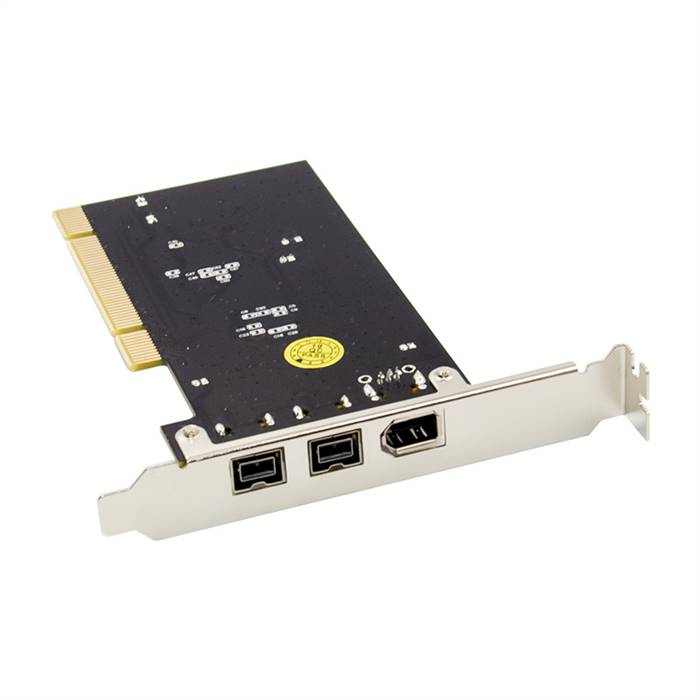

• Ports
  • 1 x FireWire 400 (6 pin, IEEE 1394a)
  • 2 x FireWire 800 (9 pin, IEEE 1394b)
• Transfer Rate: 1394A up to 400Mbps, 1394B up to 800Mbps
• Functions: Fully Interoperable with FireWire, iLink, and SB1394 Implementation of IEEE 1394 Standard
• OS Compatibility: Windows 98SE / ME / 2000 / XP / Server 2003 / Vista / Win 7 / Win 8.x, Linux, Dos

Package Contents

• 1 x PCI FireWire 800 Card 3 Ports
• 1 x Instruction Manual
