PAN-SFP-PLUS-SR | Palo Alto Networks Compatible 10G SFP+ Optical Transceiver
PAN-SFP-PLUS-SR | Palo Alto Networks Compatible 10G SFP+ Optical Transceiver

Our Price: $18.00

Warranty: 1 Year Warranty


Free Shipping
Product Code: PAN-SFP-PLUS-SR-CO


Compatibility: 		Please input the model of the switch or router on which you will install this transceiver

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

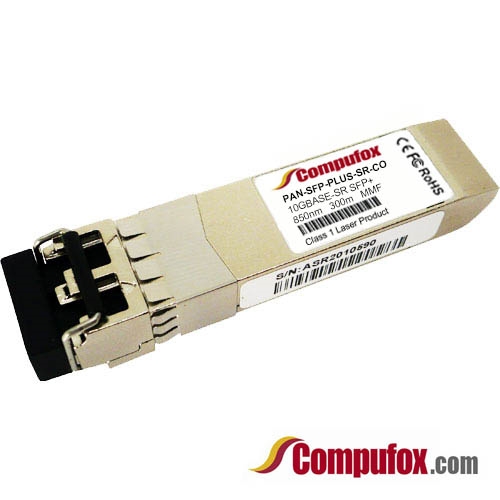

Palo Alto Networks PAN-SFP-PLUS-SR Compatible 10GBASE-SR SFP+ Optical Transceiver Module (MMF, 850nm, 300m, LC, DOM).

Features:

10GBase-SR Features

Form Factor SFP+

Data Rate 10G

Wavelength 850nm

Cable Distance* 300m@OM3/400m@OM4

Connector Duplex LC

Cable Type MMF

Transmitter Type VCSEL

Receiver Type PIN

TX Power -7.3~-1dBm

Receiver Sensitivity < -11.1dBm

Power Budget 3.8dB

Receiver Overload -1dBm

Power Consumption <1W

Extinction Ratio >3dB

DDM/DOM Yes

Commercial Temperature 0 to 70°C

* Minimum cabling distance for SR modules is 2m, according to the IEEE 802.3ae.
