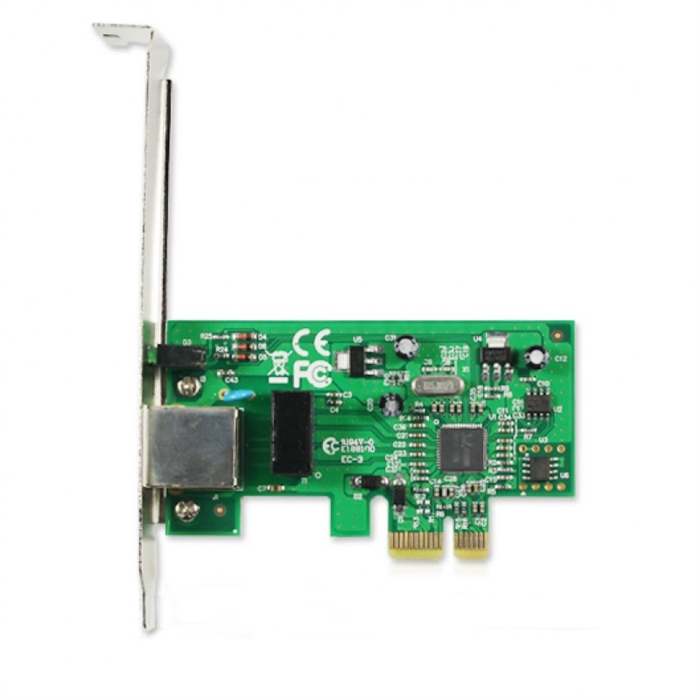

PCIe Gigabit Ethernet Single RJ45 Port Network Interface Card, PCI Express x1 Realtek RTL8168 Chipset Desktop Network Adapter
PCIe Gigabit Ethernet Single RJ45 Port Network Interface Card, PCI Express x1 Realtek RTL8168 Chipset Desktop Network Adapter

Our Price: $20.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Days


Product Code: NIC-9230MT
Qty:

Description Datasheet

This NIC-9230MT PCIe NIC card is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.

This PCIe NIC Card NIC-9230MT is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology.

Features

  • PCIe NIC Card supporting Wake-on-LAN
  • Auto-Negotiation and Auto MDI/MDIX
  • Supports IEEE 802.3x Flow Control for Full-duplex Mode and back pressure for Half-duplex Mode
  • Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging
  • PCIe NIC Card Supports power down/link down power saving
  • Supports Windows XP 32/64bit, Windows Vista 32/64bit, Windows7 32/64bit

Specifications

Standards and Protocols

IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP

Interface

PCI Express

1 10/100/1000Mbps RJ45 port

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100 STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100 STP (maximum 100m)

1000Base-T: UTP category 5, 5e cable (maximum 100m)

Data Rates

10/100/1000Mbps for Half-Duplex mode

20/200/2000Mbps for Full-Duplex mode

LED Indicator

1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act

Flow Control

IEEE 802.3x Flow Control (Full-Duplex)

Certification

CE, FCC, RoHS

Package Contents

PCIe NIC Card TG-3468

Resource CD

Quick Installation Guide

System Requirements

Windows 7(32/64bits),Windows Vista (32/64 bits),Window XP (32/64bits)

Environment

Operating Temperature: 0 Centigrade-40 Centigrade

Storage Temperature: -40 Centigrade-70 Centigrade

Operating Humidity: 10%-90% non-condensing

Storage Humidity: 5%-90% non-condensing
