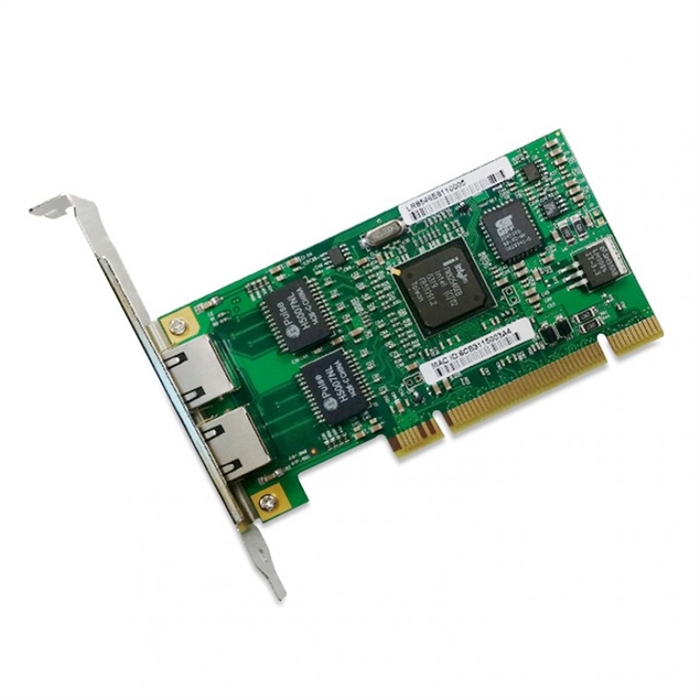

PCI Gigabit Ethernet Dual RJ45 Port Network Interface Card, Intel 82546 Chipset Desktop Network Adapter.

The NIC-7212MT is a high-performance, flexible dual-port Gigabit Ethernet server adapter, engineered to scale with your growing network infrastructure. With auto-negotiating 10/100/1000 Mbps capabilities, it automatically adjusts to meet the demands of modern, dynamic networks. Designed with a compact form factor and a swappable low-profile bracket, the NIC-7212MT fits easily in high-density, rack-mounted 1U and 2U servers. Its wide compatibility with different PCI buses, coupled with comprehensive support for network operating systems and advanced management features, makes it an ideal solution for a wide range of server and networking environments.

Key Features

Widespread Compatibility

• Supports most Network Operating Systems (NOSs)
• Intel SingleDriver technology ensures seamless integration
• Backward compatibility with previous Intel PRO/1000 Network Adapters
• Compatible with 32-bit PCI 1.0 or PCI 2.2 buses
• Remote management support: WfM, RIS, SNMP/DMI
• Fully compliant with IEEE 802.3ab (Gigabit Ethernet) standards

New Features in the Intel PRO/1000 MT Dual-Port Server Adapter

• Equipped with the Intel 82546 Gigabit Controller for enhanced performance
• Includes both full-height and low-profile screw-on brackets
• Advanced cable diagnostics for quick troubleshooting
• Large Send Offload (LSO) and TCP Segmentation Offload (TSO)
• Expanded advanced server features

Gigabit-over-Copper Advantages

• Supports Gigabit speeds over Category-5 cable networks
• Compatible with Fast Ethernet for legacy network compatibility
• Auto-sensing, self-configuring 10/100/1000 Mbps performance

Specifications

• IEEE Standard/Network Topology: 10BASE-T, 100BASE-TX, 1000BASE-T
• Adapter Product Features:
  • Intel SingleDriver technology
  • Plug and Play support
  • Easy installation with Intel PROSet Utility and Intel PRO Intelligent Install
  • Auto-negotiation and Full-Duplex support
  • Includes both low-profile and full-height brackets

Network Management

• Wired for Management (WfM) Baseline v2.0
• DMI 2.0 support, SNMP and WMI management
• Offline diagnostics with dynamic cable diagnostics
• Intel Boot Agent, ACPI Power Management, and Wake-on-LAN support
• PXE 2.0 enabled

Advanced Software Features

• Adapter and switch fault tolerance
• Adaptive Load Balancing and Fast EtherChannel-1
• Gigabit EtherChannel-1, IEEE 802.3ad (Link Aggregation Control Protocol)
• 802.1Q VLAN tagging, 802.3x Flow Control, and IEEE 802.1p support
• TCP Checksum Offload, TCP Segmentation/Large Send Offload
• Interrupt moderation, Save and Restore capabilities

Technical Features

• Data Rates Supported per Port: 10/100/1000 Mbps
• Bus Type: PCI, 32-bit
• Bus Speed: 33/66 MHz
• Onboard Memory: 128 KB
• Interrupt Levels: INTA
• Controller Processor: Intel 82546
• Typical Power Consumption: 1A at +5VDC
• Operating Temperature: 0°C to 55°C
• Operating Humidity: 85% at +55°C

Operating Systems Support

• Windows 2000, XP, Vista (32/64-bit), 7 (32/64-bit), 8 (32/64-bit)
• Windows Server 2003 (32/64-bit), 2008 (32/64-bit), 2008 R2 (32/64-bit), 2012 R2 (32/64-bit)
• Novell NetWare 5.x/6.x
• Linux kernel version 2.6.30 or higher
• FreeBSD 7.x or higher
• DOS, Sun Solaris x86
• VMware ESX
• OS Independent

The NIC-7212MT is a powerful and reliable solution for high-performance server networking, delivering scalability and advanced features in a compact, cost-effective design.
