PCIe Gigabit Ethernet Fiber Network Interface Card, PCI Express x1 Intel 82575EB Chipset 1000Base-LX SM Fiber NIC, Single SC Port.

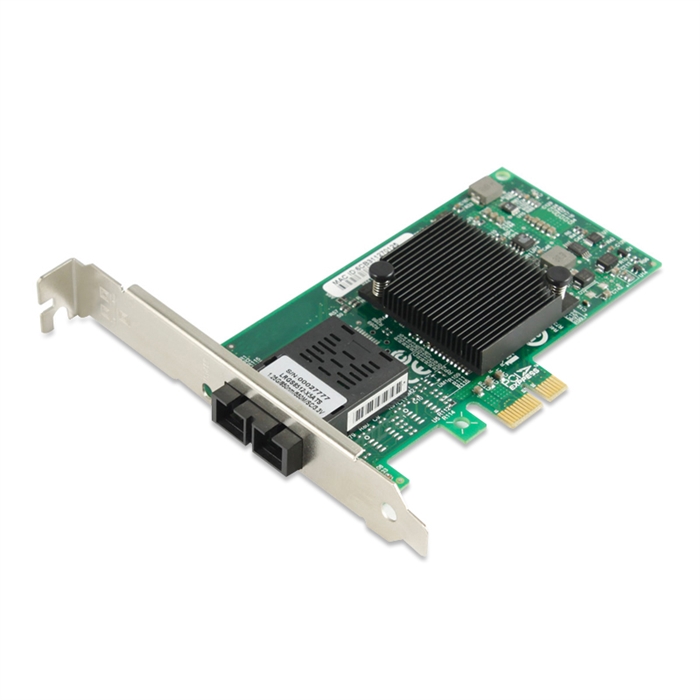

The NIC-6220PF-LX is a high-performance PCI Express multifunction network adapter designed for use in both standard and low-profile slots within fiber-optic network environments. Based on the Intel 82575EB controller, this adapter supports 1000Base-LX PCI Express x1 operation and is ideal for desktop applications.

Key Features

Industry-Leading Performance

• Engineered for high-end appliances, with optimized performance ensuring system I/O is not a bottleneck in demanding networking applications.
• Integrated hardware acceleration for TCP/UDP/IP checksum offload and TCP segmentation, freeing CPU resources for application tasks.

Reliability, Availability, and Serviceability

• Fault-tolerant teaming: Routes traffic from a failed port to up to seven other team members, ensuring uninterrupted network operation.
• Designed with high stability, performance, and compatibility, making it ideal for high-performance FTTD applications.

Versatile Singlemode Network Support

• Equipped with a single SC connector, supporting singlemode fiber operations with an optional multimode fiber configuration based on customer needs.
• Fully compatible with all major computer brands and fiber switches on the market.

Advantages

• Intel 82575EB chipset enables advanced features and reliability.
• Fully compatible with all major operating systems.
• High-quality 4-layer PCB (1.5oz, 4mil) for enhanced stability, longer lifespan, and reduced resistance.
• Triple-line power design (3.3V/2.5V/1.0V) ensures stable performance, minimizing the impact of external power fluctuations.
• Manufactured with premium materials, including TI and LT power controllers for optimal stability.
• Supports PXE and Wake-on-LAN (WOL) for advanced network management.

Standard Features

• Host Interface: PCI Express 2.0a standard.
• Intel 82575EB Controller: Integrated MAC + PHY/SERDES chip for high performance, reliability, and low power consumption.
• Fiber Gigabit Ethernet Channels: Independently support 1000Base-LX for singlemode fiber operation.
• Hardware Acceleration: Offloads TCP/UDP/IP checksum calculations and TCP segmentation to reduce CPU usage.
• Server-Class Features:
  • Link Aggregation and Load Balancing:
    • 802.3ad (LACP), Generic Trunking (GEC/FEC), and failover support.
  • VLAN Support: 802.1Q VLAN tagging.
  • Priority Queuing: 802.1P Layer 2 priority encoding.
  • Jumbo Frames: Up to 16KB.
  • Flow Control: 802.3x.
  • Extensive SNMP MIB II, Ethernet-like MIB, and Ethernet MIB (802.3z, Clause 30) support.
• LED Indicators: Provide status for link, activity, and speed.
• Compatible with both full-height and low-profile brackets.

Specifications

General

• IEEE Standards: 1000Base-LX (singlemode fiber).
• Cables and Operating Distance: Singlemode fiber.
• Optical Output Power: Minimum: -9.0dBm.
• Optical Receive Sensitivity: Maximum: -20dBm.
• Connectors: Small Form Factor (SC).

Technical

• Interface Standard: PCI Express 2.0 (x1, compatible with x4, x8, x16).
• Power Consumption: +12V ±8%, +3.3V ±8%.
• Operating Temperature: -5°C to 40°C.
• Storage Temperature: -40°C to 85°C.
• LED Indicators:
  • Link (green): Lights up when a connection is established.
  • Activity (green): Blinks during network activity.

Operating System Support

• Windows: 2000, XP, Vista, 7, 8 (32-bit and 64-bit), Server 2003, Server 2008, Server 2008 R2, Server 2012 R2.
• Novell Netware: 5.x, 6.x.
• Linux: Kernel version 2.6.30 or higher.
• FreeBSD: Version 7.x or higher.
• Sun Solaris x86.
• VMware ESX.
• OS Independent.
• DOS.

The NIC-6220PF-LX Singlemode Fiber Network Adapter provides a reliable, high-performance solution for singlemode fiber networking, offering exceptional compatibility, durability, and efficiency for diverse network environments.
