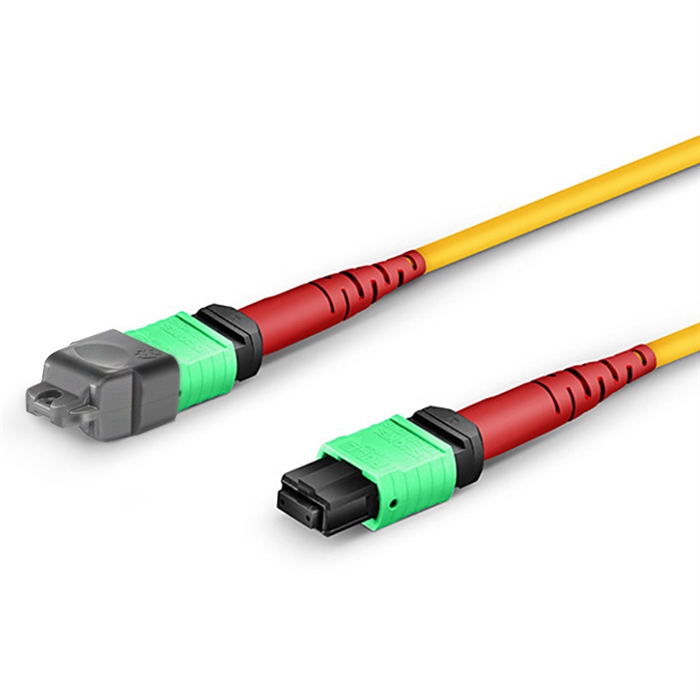

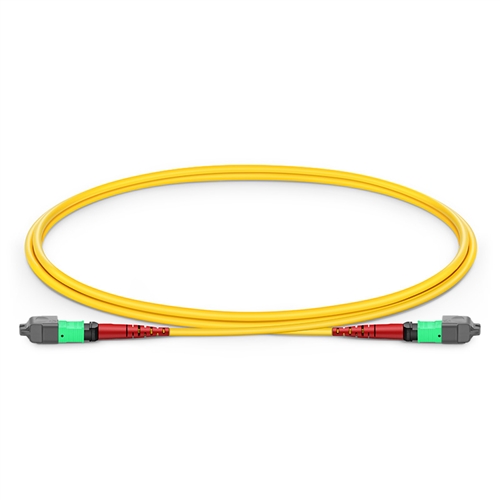

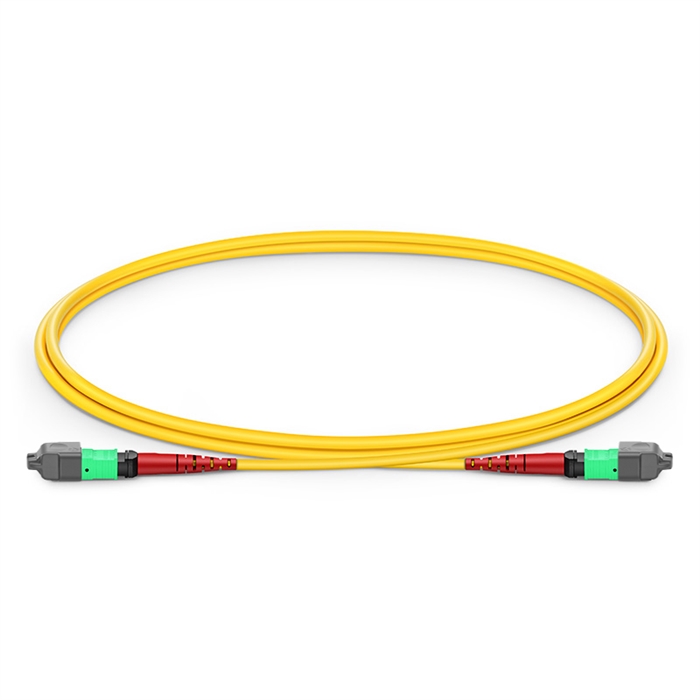

Single Mode MPO-24 (Female) To MPO-24 (Female) Trunk Cable (24 Fiber, 9/125 OS2, Type B, LSZH)
Single Mode MPO-24 (Female) To MPO-24 (Female) Trunk Cable (24 Fiber, 9/125 OS2, Type B, LSZH)

Alternative Views:
Our Price: $56.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 2 days


Product Code: MPO24-OS2


Select Length*:

Qty:
Description

Single Mode MPO-24 (Female) To MPO-24 (Female) Trunk Cable (24 Fiber, 9/125 OS2, Type B, LSZH).

Specifications

  • Fiber Type: 9/125µm Single Mode OS2

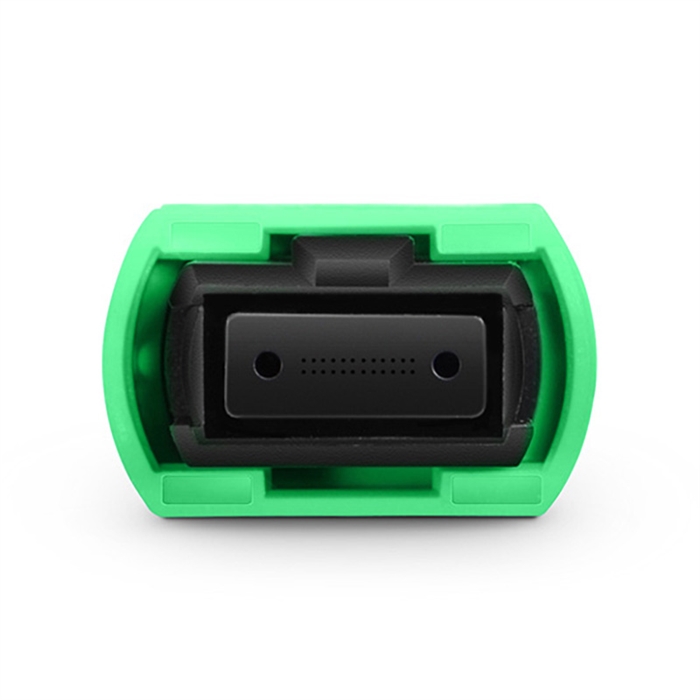

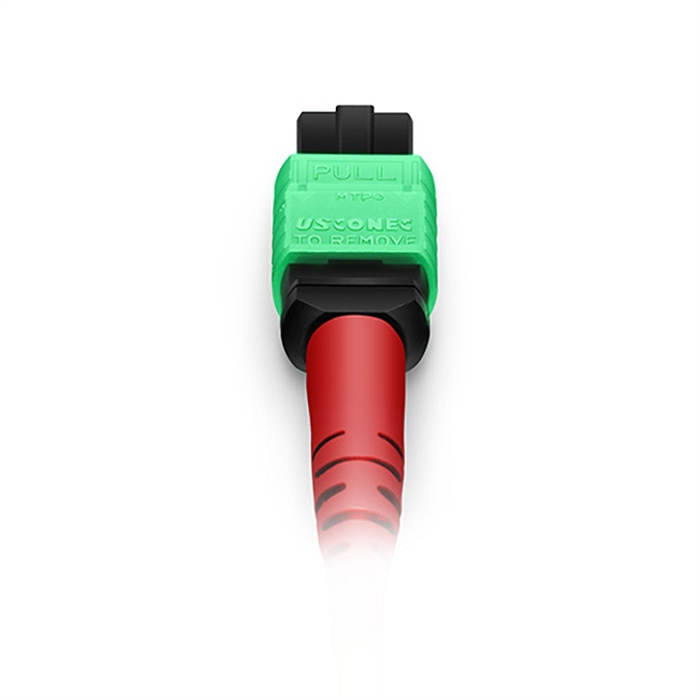

  • Connector Type: MPO Female to MPO Female
  • Insertion Loss: Standard: ≤0.70dB (0.45dB Typ.) - Elite: MPO≤0.35dB (0.20dB Typ.)
  • Polarity: Type B (Crossover)
  • Jacket Material: LSZH (Low Smoke Zero Halogen)
  • Environment: Operating: -20°C to 70°C - Storage: -40°C to 85°C
  • Fiber Count: 24-Fiber
  • Polish: APC to APC
  • Cable Diameter: 3.0mm
  • Return Loss: ≥60dB
  • Durability: ≥100 times
  • Jacket Color: Yellow
  • Attenuation: 1310nm: ≤0.34dB/km - 1550nm: ≤0.20dB/km
