Multimode MPO-24 (Female) To MPO-24 (Female) Trunk Cable (24 Fiber, 50/125 OM4,Type B, LSZH, Magenta)
Multimode MPO-24 (Female) To MPO-24 (Female) Trunk Cable (24 Fiber, 50/125 OM4,Type B, LSZH, Magenta)

Alternative Views:
Our Price: $55.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 2 days


Product Code: MPO24-OM4


Select Length*:

Qty:
Description

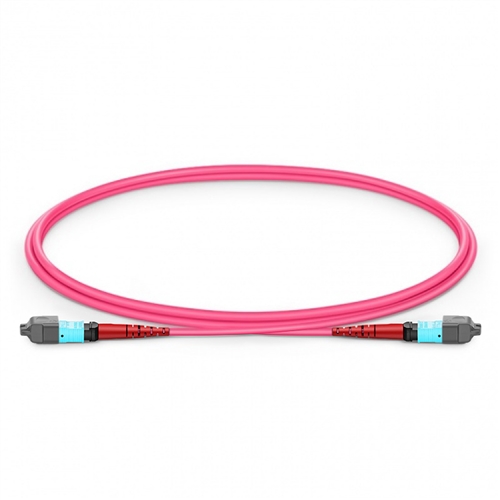

Multimode MPO-24 (Female) To MPO-24 (Female) Trunk Cable (24 Fiber, 50/125 OM4,Type B, LSZH, Magenta).

Specifications

  • Fiber Type: 50/125µm Multimode OM4
  • Connector Type: MPO Female to MPO Female
  • Insertion Loss: Standard: ≤0.6dB (0.40dB Typ.) - Elite: MPO≤0.35dB (0.15dB Typ.)
  • Polarity: Type B (Crossover)
  • Jacket Material: LSZH (Low Smoke Zero Halogen)
  • Environment: Operating: -20°C to 70°C - Storage: -40°C to 85°C
  • Fiber Count: 24-Fiber
  • Polish: UPC to UPC
  • Cable Diameter: 3.0mm
  • Return Loss: ≥20dB
  • Durability: ≥100 times
  • Jacket Color: Magenta
  • Attenuation: 850nm: ≤3.0dB/km - 1310nm: ≤1.0dB/km
