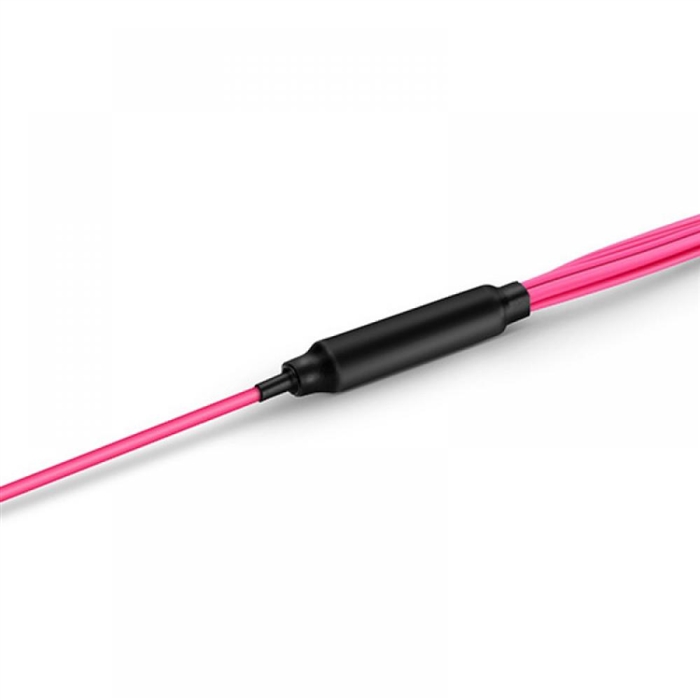

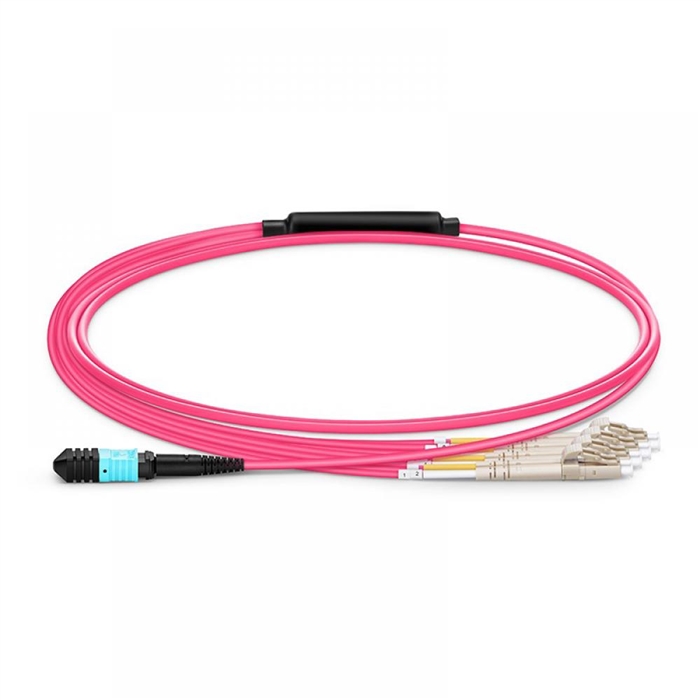

QSFP+ MPO to 8 LC (4 Duplex LC) Fanout / Breakout Cable, Multimode OM4
QSFP+ MPO to 8 LC (4 Duplex LC) Fanout / Breakout Cable, Multimode OM4

Alternative Views:
Our Price: $60.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 2 days


Product Code: MPO-8LC-OM4


Select Length*:

Qty:
Description


Features

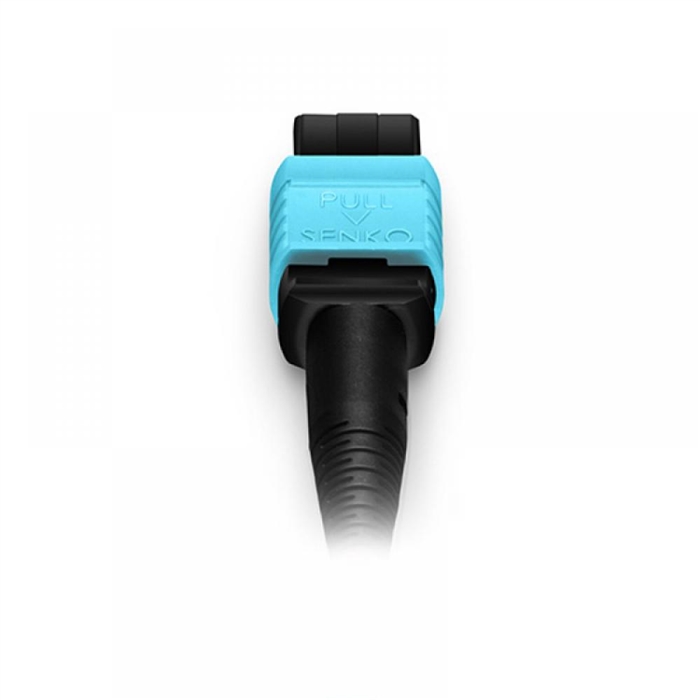

  • Connector A: MPO female connector (No guide pins)

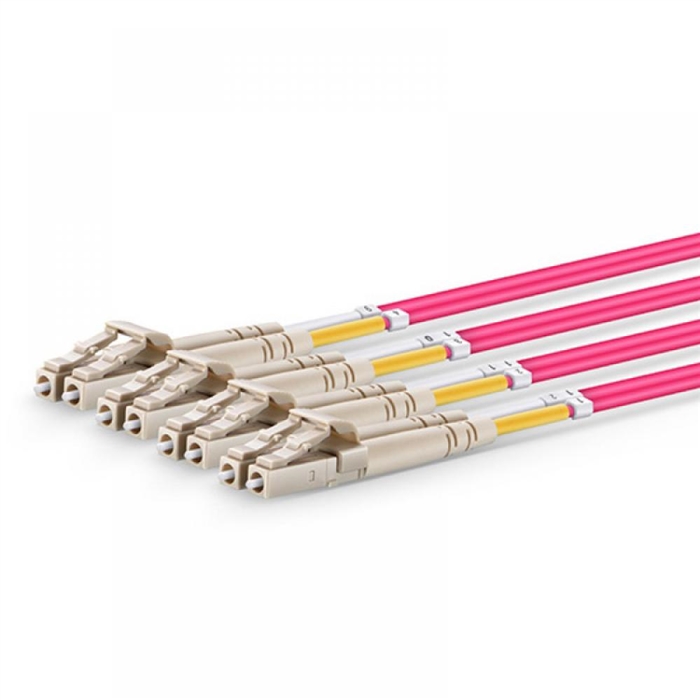

  • Connector B: 4 Duplex LC/UPC
  • 40Gb pin-out configuration
  • Jacket Type: LSZH Rated (OFNR)
  • Fiber Mode: OM1 Multimode
  • Breakout Length: 1/2 Meter (~24 Inches)
  • Fiber Count: 8 Fibers
  • Stable performance index by PIN fixed position of connecting
  • High density which convenient for wiring and management system Comply with Telcordia GR-1435-CORE and RoHS standard
  • Insertion loss : <0.7dB (<0.3/<0.5 Optional)
  • Return loss : >60dB
  • Insert-pull test : 500 Times<0.5 dB
  • Operation temperature : -40℃~+80℃

Polarity


The application above is for the MPO-LC breakout cable connecting a QSFP+ port to (4) SFP+ ports directly.
