MPO to 12 LC (6 Duplex LC) Breakout Cable, Multimode OM4

Home > Fiber Optic Cables > MTP/MPO Fiber Cables > MPO to LC Breakout Cables > 12 Fiber >

Alternative Views:

Our Price: $35.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 2 days

Product Code: MPO-12LC-OM4

Select Length*:

Qty:

Description

Datasheet

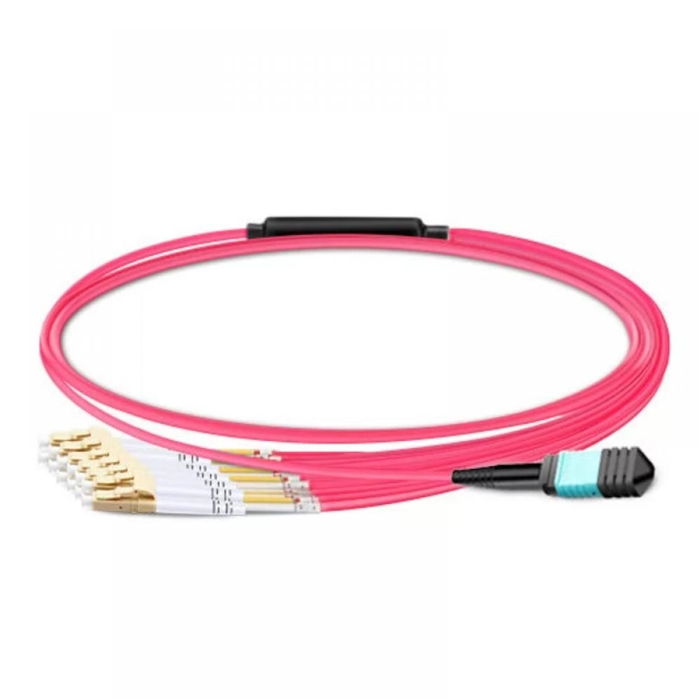

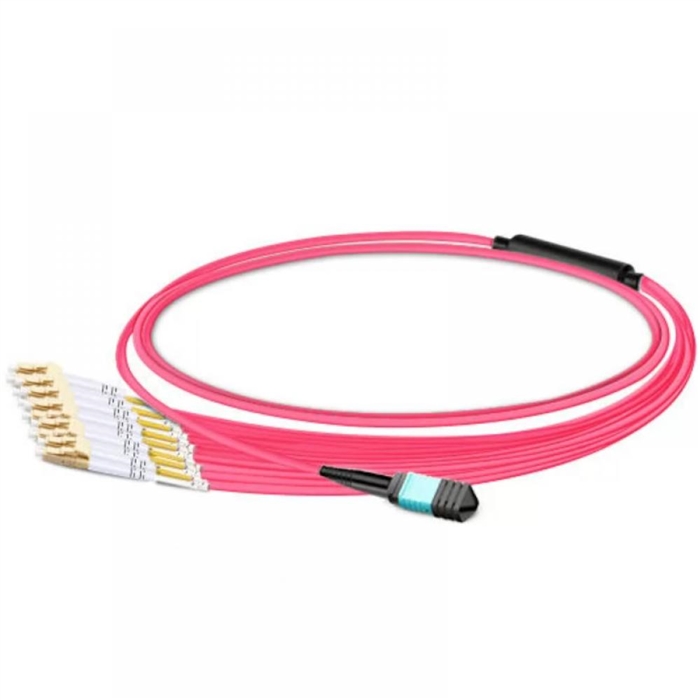

MPO Female to 6 Duplex LC UPC Breakout Cable, 12 Fiber OM4 50/125 Multimode, Type B, LSZH.

This OM4 MPO cable is factory pre-terminated 50/125 Multimode OM4 MPO to 6xLC Duplex fiber harness cable, which offers the user the advantage of consistent quality, much faster installation, and simpler cable management.

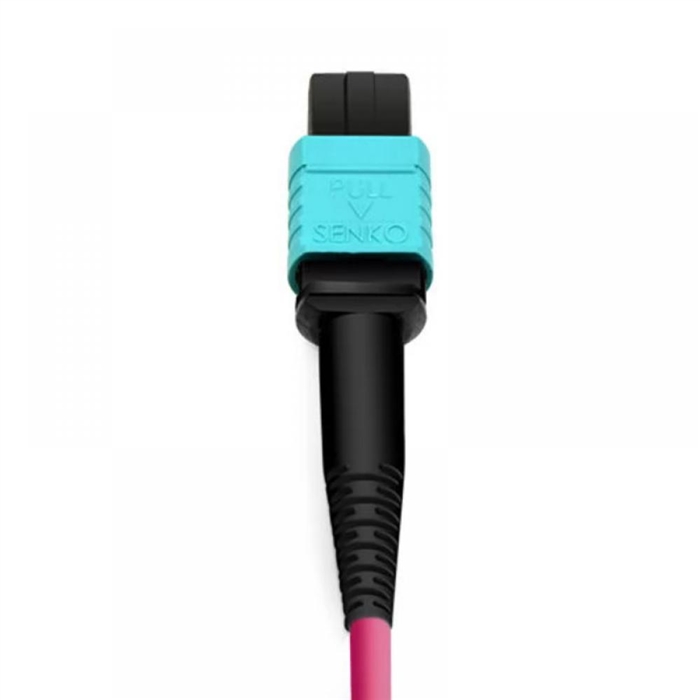

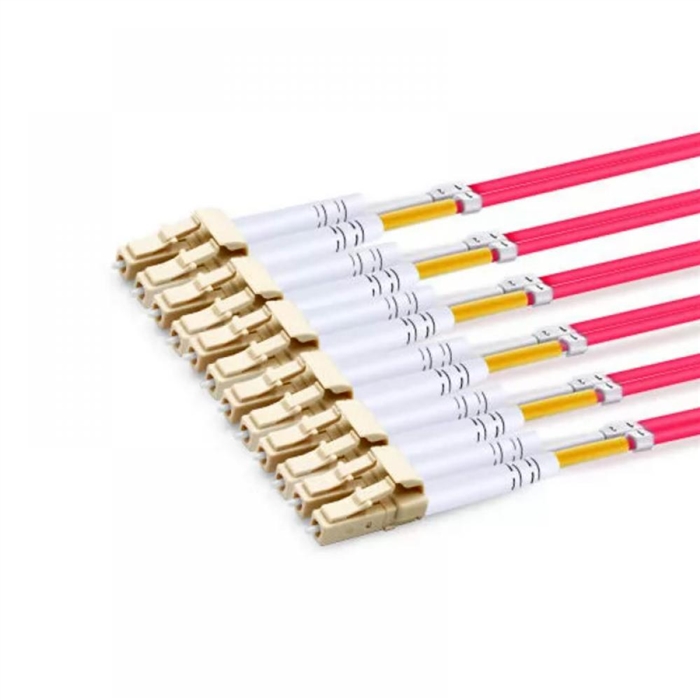

The OM4 MPO harness fiber cable is comprised of one MPO female connector and 6 LC UPC duplex fiber connectors on the other end. The connectors utilize a UPC (Ultra Physical Contact) polish which provides a better surface finish with less back reflection.

These breakout cables are perfect when your space is limited, which allows converting a standard fiber optic network to a high-density MPO network, and making a powerful fiber connection.

Specifications

Fiber Type: 50/125µm Multimode OM4
Fiber Count: 12-fiber
Connector Type: MPO Female to 6x LC Duplex
Polish: UPC to UPC
Cable Length: 1m to 100m
Cable Diameter
- MPO: 3.0mm

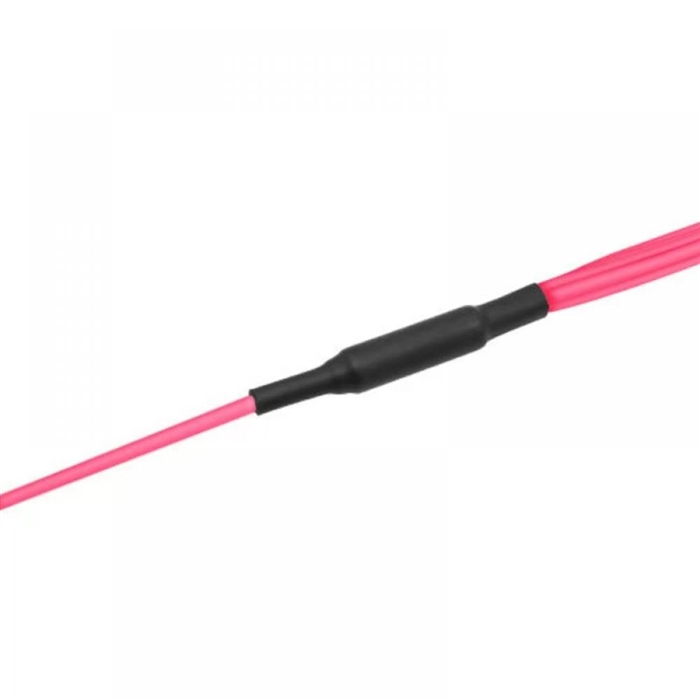

- Fan-out: 2.0mm
Wavelength: 850/1300nm
MPO Connector IL: 0.75dB Max (0.35dB Typ.)
LC Connector IL: ≤0.2dB
MPO Connector RL: ≥20dB
LC Connector RL: ≥20dB
Polarity: Type B (Crossover)
Jacket Material: LSZH
Jacket Color: Aqua/Violet
Environment
- Operating: -10°C to 70°C
- Storage: -40°C to 85°C
