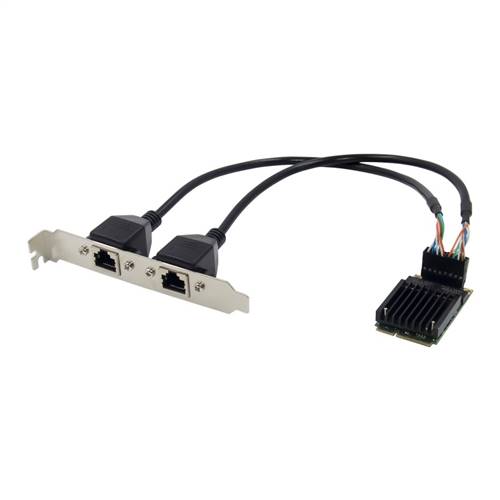

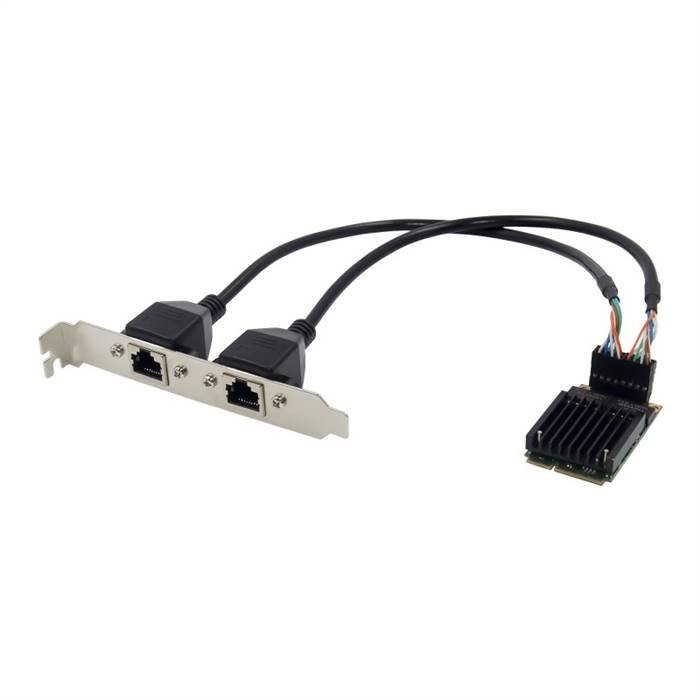

The MPE-GE-2T-82583 Mini PCI Express Dual Port Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.

Specifications

• Controller: Intel 82583 + AMS1182E
• Bus Type: Mini PCIe
• Connector: 2 * 8-Pin RJ45
• Transmission Rate: 10/100/1000Mbps
• Cable: Copper
• Cable Type
  • Cat 5E/6 or higher: 1000Base-T up to 100m
  • Cat5/5E/6 or higher: 100Base-Tx up to100m
  • Category 3/4/5/5E/6 or higher: 10Base-T up to 100m
• Bracket: Low Profile and Full-height Bracket
• Power(max) 3W
• IEEE Standard
  • IEEE802.3ad
  • IEEE 802.1p
  • IEEE 802.1Q VLANs
  • IEEE 802.3z 1000BASE-X Gigabit Ethernet
• PXE: Yes
• DPDK: Yes
• Jumbo Frame: Yes
• Iscsi: No
• FCoE: No
• WOL: No

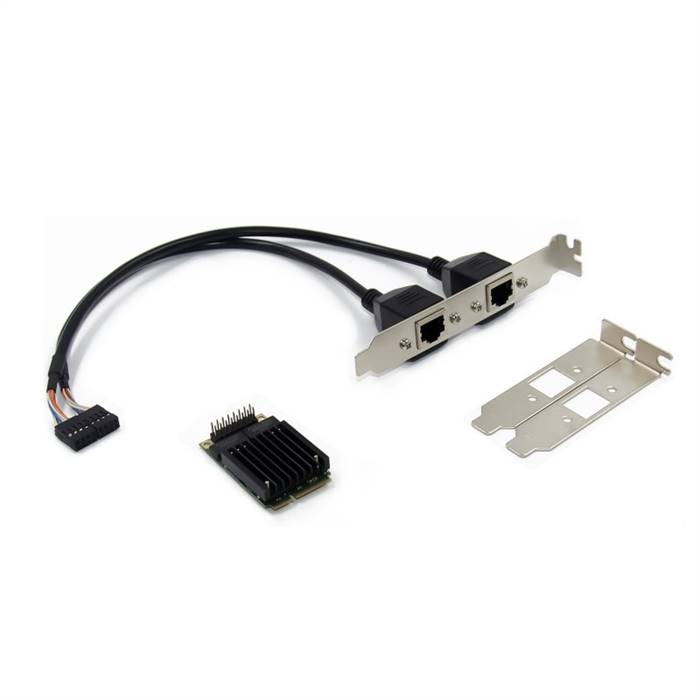

Package Contents

• 1 * Mini PCIe Card
• 2 * Low Profile Bracket
• 2 * Data Cable
• 1* Driver CD
• 1 * Instruction Manual
