The Mini PCIe Intel I210 SFP Network Adapter is specially designed to setup a long-distance link with a file server or a remote workstation. With a Multi-mode Gigabit 1000Base-SX transceiver, the connection is up to 500-meter. With a Single Mode Gigabit 1000Base-LX / WDM transceiver, the connection is up to 10km.

Specifications

• Chipset: WGI210AS
• Compliant with PCI Express MINI card Specification 1.2
• Compliant with PCI Express base specification Revision1.1
• Compliant with PCI bus power management interface specification Revison1.2
• SFP slot supporting the following transceivers: Mini-GBiC(SFP)
• 1000Base-SX Multi mode, 1000Base-LX Single mode, 1000Base-BX Single mode WDM
• Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN
• Supports Receive-side scaling (RSS)
• Supports IPv4, IPv6 protocols
• Supports Jumbo Frames up to 9K
• Supports Checksum offloading
• Drivers for Win7/ Win8/ Win10/Vista/Sever2008/Sever2012/Linux/DOS

System Requirements

• FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10
• One available Mini PCIe slot

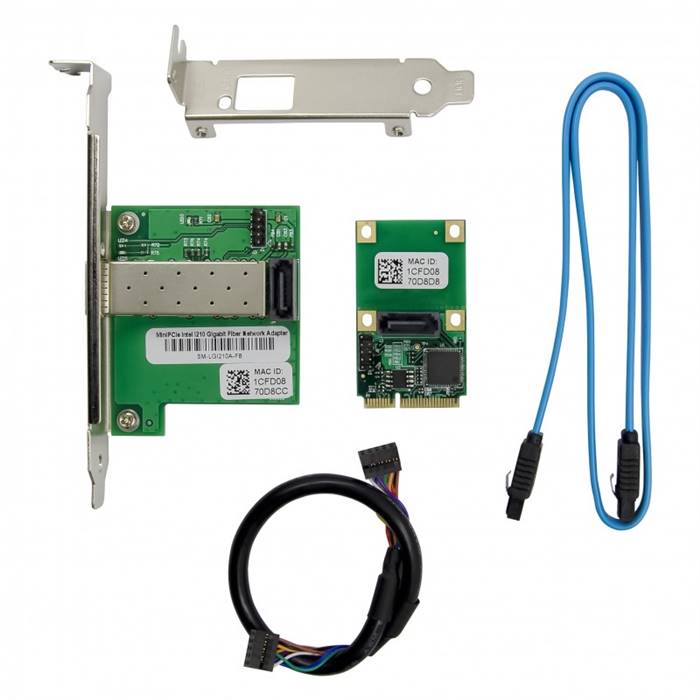

Package Contents

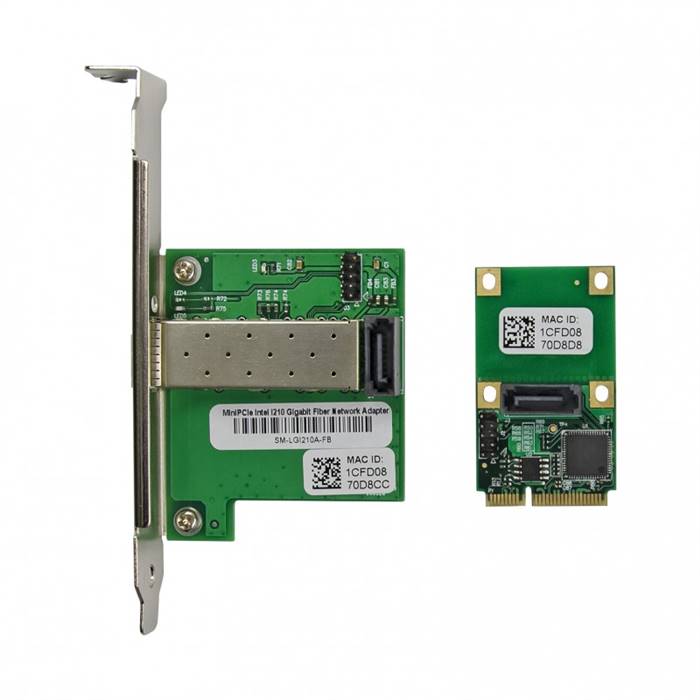

• 1 x Mini PCIe Intel I210 SFP Network Adapter Main board
• 1 x Mini PCIe Intel I210 SFP Network Adapter daughter board
• 1 x SATA cable
• 1 x 8-pin power cable
• 1 x User Manual
• 1 x Driver CD
