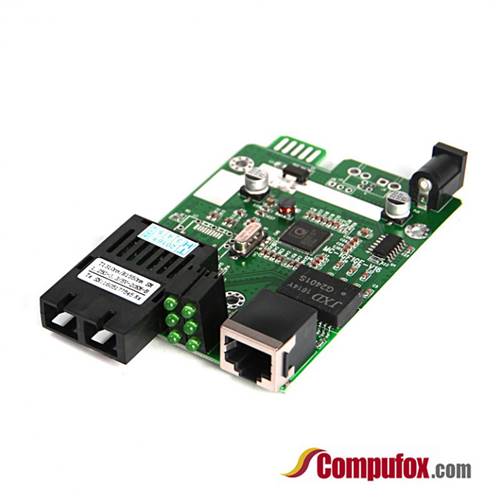

MFMC-GEM-1F1T-55S80 (SNMP Managed Fiber Media Converter Module)
Dual Fiber 10/100/1000M SNMP Managed Fiber Media Converter Module, 1-port Fiber & 1-port RJ45, 1550nm SMF, 80km

Our Price: $178.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 2 days


Product Code: MFMC-GEM-1F1T-55S80


Select Fiber Port: 		Duplex SC (Default)
Duplex FC [Add $5.00]
Duplex ST [Add $5.00]

Qty:
Description


This Managed 10/100/1000 Rate Converting Media Converters transparently connect copper to fiber. Our 10/100/1000 Ethernet to Fiber Converters provide an economical path to extend the distance of an existing network, the life of non-fiber based equipment, or the distance between two devices.

Network Administrators can "see-everything" with this Compufox's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fiber Fault Alert, and Loopback. Along with a Media Converter Management Module in the chassis, configuration and monitoring of the copper and fiber ports can be performed.

For those environments requiring a medium to large-scale deployment of media converters, a centralized platform that simplifies the configuration, administration, monitoring, and troubleshooting of this gear is recommended.

Features

  • 10/100/1000Base-T to 1000Base-X Fiber Media Converters
  • Connect 10/100 devices to Gigabit backbone
  • Extend network distances up to 160km
  • Advanced features - Smart Link Pass-Through, Fiber Fault Alert, Auto-MDIX and Loopback
  • High density applications with Compufox Media Converter Chassis
  • Manage via SNMP, CLI - Telnet/SSH, Internet browser
  • Supporting 10/100/1000M, full/half duplex autosensing
  • Supporting auto-MDI/MDIX
  • Supporting 1*9 transceiver and SFP transceiver
  • Support SFP DMI(Diagnostic Monitoring Interface) function
  • Supporting 850nm, 1310nm, 1550nm and DWDM/CWDM wavelength ruled by ITUT
  • Max. 2046 bytes packet at store-and-forward mode; Max. 9K bytes packet at cut-through
  • Rate Limit function, 64Kbps
  • Supporting Loopback, precisely locating the failure, convenient for link test
  • Supporting LFP, quickly locates the failure
  • Supporting remote power off alarming
  • Economical management function within bandwidth, supporting 802.3ah and TS 1000
  • With powerful network management function, supporting WEB and SNMP
  • Supporting hot plug
  • Supporting Remote management
  • Easy installation with complete LED indicators for working situation
  • Supporting 2U chassis (16 slots) and standalone use

Specifications

Interface:

1 x 10/100/1000M RJ45
1 x 1000Base-FX

Standard:

IEEE802.3 ,IEEE802.3u,IEEE802.3Z,IEEE802.3x

Wavelength:

850nm/1310nm/1550nm

Connector

SC, FC, ST, LC

Power Dissipation:

<3W

Operating Temperature:

0 ~ 50 ℃

Humidity:

5%~90%

Storage Temperature:

-40~ 70 ℃
