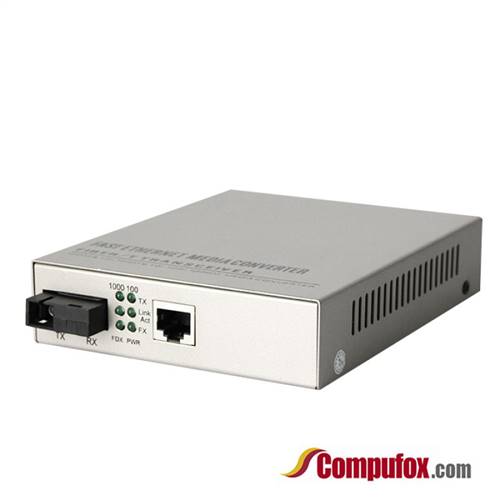

This Managed Gigabit Fiber Media Converter is designed to make
conversion between 1000Base-FX to 10/100/1000Base-TX Gigabit Ethernet.
With SNMP agent and web-based management, the network administrator can
logon the converter to monitor, configure and control the activity of
each port. In addition, the converter implements bandwidth rating
management capability via the intelligent software. The overall network
management is enhanced, and the network efficiency is also improved to
accommodate and deliver high bandwidth applications.
The converter
is completely transparent when connected so the network performs
exactly the way it did before - only now, it allows the co-existence of
both copper and fiber mediums. Added flexibility is available with ST,
SC, FC and WDM Simplex SC connectors. Extra distances are possible with
the single mode version delivering up to 120km connectivity per
transmitted segment.
Features
- Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3x auto-negotiation
- Extends distances ranging from 0.5km (multi-mode fiber) to 120km (single mode fiber)
- Wall-Mountable
- Auto-negotiation of duplex(HDX/FDX) on RJ-45 port
- Auto MDI/MDI-X support on RJ-45 port
- Rate Limit function, 64Kbps
- Supporting Loopback, precisely locating the failure,convenient for link test
- Supporting LFP, quickly locates the failure
- Supporting remote power off alarming
- Economical management function within bandwidth
- Supporting Remote management
- Easy installation with complete LED indicators for working situation
- With powerful network management function, supporting WEBand SNMP
Specifications
|
Interface
|
1 x Ethernet port (RJ45) 10/100/1000Base-Tx
1 x Optical port (1x9) 1000Base-Fx
|
|
Optical Port
|
Wavelength: Tx:1490nm/Rx:1550nm, Singlemode
Transfer Distance: up to 80Km
Connectors: SC/PC, ST/PC, FC/PC optional
|
|
Ethernet Port
|
Available speed: force 100 Mbps, force 1000
Mbps and auto-detective 10/100Mbps Full-Duplex and Half-Duplex
Auto-negotiation
Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing
|
|
Standard
|
IEEE802.3（10Base-T）
IEEE802.3u（100Base-TX/FX）
IEEE802.3ab (1000Base-T)
IEEE802.3z (1000Base-SX/LX/CX/T)
IEEE802.3x（Flow control）
SNMP v1/v2c (Simple Network Management Protocol)
|
|
LED Indicators
|
Power Status, Speed Status, FX Link/Act, TX
Link/Act
|
|
Environmental Limits
|
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Operating Humidity: 10% to 90% RH (non-condensing)
Storage Humidity: 5% to 90% RH (non-condensing)
|
|
Agency Approvals
|
FCC Part 15 of Class A & CE approved
|
Applications
1, Managed Ethernet to Fiber Links
Manage
your copper to fiber link with a Managed Standalone Media Converter.
Ideal for use in managed networks with low density fiber applications. A
Managed Standalone Media Converter is connected across a fiber link to a
remote media converter. The copper and fiber link on the managed
standalone unit can provide vital information and status to network
management tools such as SNMP.
2, Connect 10/100 devices to Gigabit Backbone
Devices
on a 10/100 ethernet switch can be connected to a Gigabit backbone
through the use of rate converting 10/100/1000 Media Converters.
