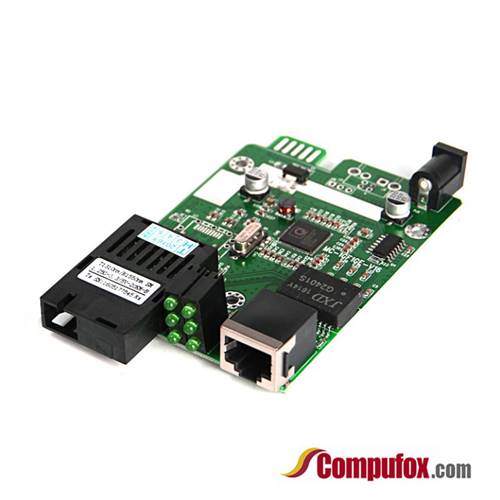

This Managed 10/100/1000 Rate Converting Media Converters
transparently connect copper to fiber. Our 10/100/1000 Ethernet to Fiber
Converters provide an economical path to extend the distance of an
existing network, the life of non-fiber based equipment, or the distance
between two devices.
Network Administrators can "see-everything" with this Compufox's
advanced features such as Auto-Negotiation, Auto-MDIX, Link
Pass-Through, Fiber Fault Alert, and Loopback. Along with a Media
Converter Management Module in the chassis, configuration and monitoring
of the copper and fiber ports can be performed.
For those environments requiring a medium to large-scale deployment
of media converters, a centralized platform that simplifies the
configuration, administration, monitoring, and troubleshooting of this
gear is recommended.
Features
- 10/100/1000Base-T to 1000Base-X Fiber Media Converters
- Connect 10/100 devices to Gigabit backbone
- Extend network distances up to 160km
- Advanced features - Smart Link Pass-Through, Fiber Fault Alert, Auto-MDIX and Loopback
- High density applications with Compufox Media Converter Chassis
- Manage via SNMP, CLI - Telnet/SSH, Internet browser
- Supporting 10/100/1000M, full/half duplex autosensing
- Supporting auto-MDI/MDIX
- Supporting 1*9 transceiver and SFP transceiver
- Support SFP DMI(Diagnostic Monitoring Interface) function
- Supporting 850nm, 1310nm, 1550nm and DWDM/CWDM wavelength ruled by ITUT
- Max. 2046 bytes packet at store-and-forward mode; Max. 9K bytes packet at cut-through
- Rate Limit function, 64Kbps
- Supporting Loopback, precisely locating the failure, convenient for link test
- Supporting LFP, quickly locates the failure
- Supporting remote power off alarming
- Economical management function within bandwidth, supporting 802.3ah and TS 1000
- With powerful network management function, supporting WEB and SNMP
- Supporting hot plug
- Supporting Remote management
- Easy installation with complete LED indicators for working situation
- Supporting 2U chassis (16 slots) and standalone use
Specifications
|
Interface:
|
1
x 10/100/1000M RJ45
1 x 1000Base-FX
|
|
Standard:
|
IEEE802.3
,IEEE802.3u,IEEE802.3Z,IEEE802.3x
|
|
Wavelength:
|
850nm/1310nm/1550nm
|
|
Connector
|
SC, FC, ST, LC
|
|
Power Dissipation:
|
<3W
|
|
Operating Temperature:
|
0 ~ 50 ℃
|
|
Humidity:
|
5%~90%
|
|
Storage Temperature:
|
-40~ 70 ℃
|
|
|
|
 |
|
 |
|
