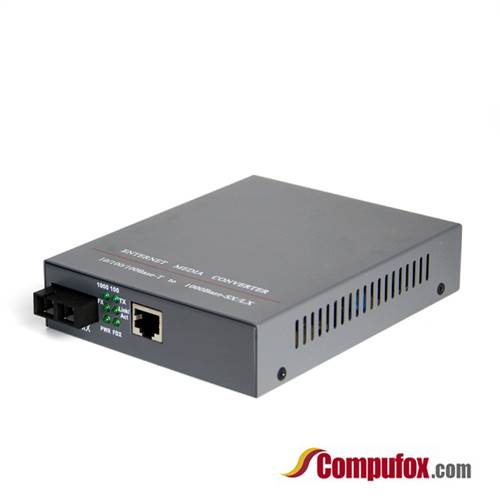

This Stand-Alone Managed media converter equips with remote Web
interface, enables network administrators to easily monitor and setup
the converter, the transmission speed and duplex through web browsers.
Ideal for use in managed networks with low density fiber applications. A
Managed Standalone Media Converter is connected across a fiber link to a
remote media converter. The copper and fiber link on the managed
standalone unit can provide vital information and status to network
management tools such as Web. Our Managed 10/100 Ethernet media
converter modules is the smart choice for IT professionals.
Features
- 10/100Base-T(X) to 100Base-FX Stand-Alone Converter
- Built-in power supply, without power adapter
- Supports Full/Half Duplex, auto-negotiation, MDI/MDI-X on TX ports
- Configurable through console, Web
- Support Vlan and QoS
- Reliable and stable performance
- Free fall, Shock and Vibration Stability
- Standard: Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX
Specifications
- UTP port: 1-ports RJ45
- UTP Rate: 10/100Mbps
- Fiber Rate: 100Mbps
- Fiber Port: Duplex SC, ST, FC, SFP available
- Fiber Wavelength: 1550nm
- Fiber Mode: Singlemode
- Distance: 80km
- Power Supply: Built-in
- UTP cable: Cat. 5/5e/6 UTP cable (the max distance up to 100m)
- LED Indicator: TX LINK, FX LINK, TX ACT, FX ACT, PWR, FDX
- Operation Temperature: 0 ℃ ~ 50 ℃ (Humidity: 5~90% non-condensing)
- Storage Environment: -25 ℃ ~ +70 ℃ (Humidity: 5~90% non-condensing)
Applications
1, Managed Ethernet to Fiber Links
Manage your copper to fiber link
with a Managed Standalone Media Converter. Ideal for use in managed
networks with low density fiber applications. A Managed Standalone Media
Converter is connected across a fiber link to a remote media converter.
The copper and fiber link on the managed standalone unit can provide
vital information and status to network management tools such as SNMP.
2, Extend the network distance between two Ethernet Hubs
A pair of 10/100 media converters can extend the distance between hubs across a fiber link up to 120km in length.
3, Extend the network distance between legacy 10Mbps copper Ethernet to Fast Ethernet infrastructure
A pair of 10/100 media converters
can extend the distance between a legacy 10Mbps device to a Fast
Ethernet switch across a fiber link up to 120km in length.
4, Extend the network distance between two Ethernet half-duplex hubs
A pair of 10/100 media converters
can extend the distance between hubs across a fiber link up to 120km in
length. They also isolate the collision domains, associated with
half-duplex, from crossing the fiber link.
5, Extend the network distance between an Ethernet half-duplex hub and a full-duplex switch
A pair of 10/100 media converters
can extend the distance between a half-duplex hub and a full-duplex
switch across a fiber link up to 120km in length. They also isolate the
collision domains, associated with half-duplex, from crossing the fiber
link. In this scenario, the media converter connected to the switch must
be forced to half-duplex.
6, Extend the network distance between legacy 10Mbps copper Ethernet devices
A pair of 10/100 media converters
can extend the distance between two legacy 10Mbps devices across a fiber
link up to 120km in length.
